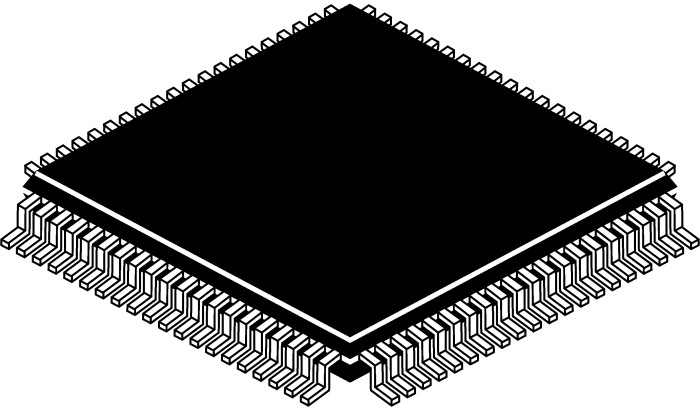

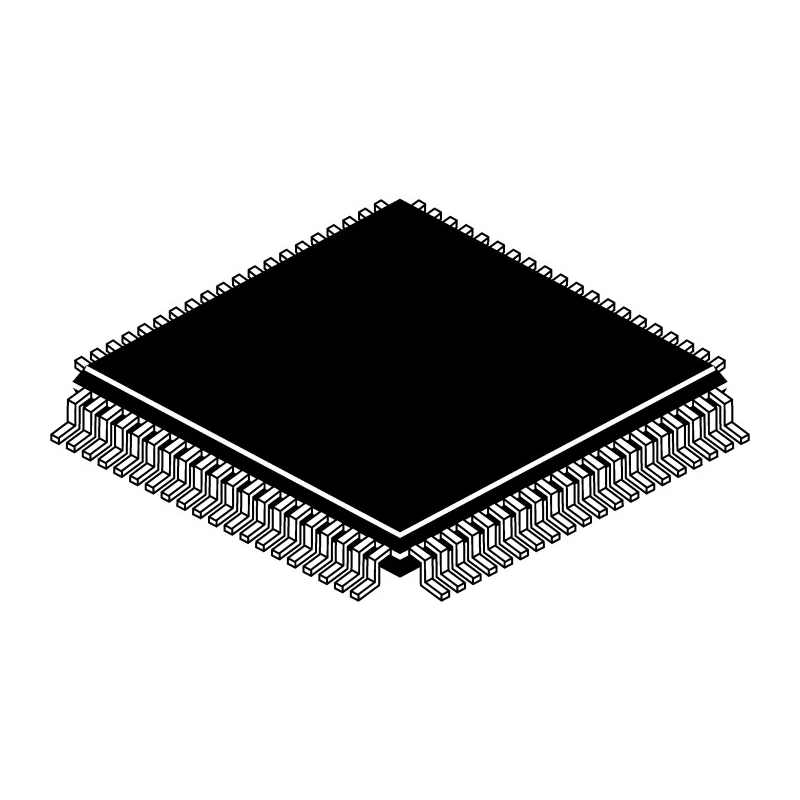

NXP Kinetis K2x ARM Cortex M4 Microcontroller 512kB FLASH 128kB RAM 100 MHz 80-Pin LQFP MK20DN512VLK10
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.4mm |
| Length | 14mm |
| Model | MK20DN512VLK10 |
| Width | 14mm |
| Mount Type | Surface |
| Series | Kinetis K2x |
| Maximum Operating Temperature | 105°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128kB |
| Pin Count | 80 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.71V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 100MHz |
| Analogue Comparators | 3 |
| Number of Timers | 2 |
| Instruction Set Architecture | DSP |
| ADCs | 16 bit |
| Program Memory Type | FLASH |
| DACs | 12 Bit |
Key Features
- Features a 32-bit ARM Cortex M4 core with DSP instructions for enhanced performance.
- Equipped with 512kB of flash memory and 128kB of RAM for extensive program and data storage.
- Operates at up to 100 MHz maximum clock frequency ensuring efficient processing speed.
- Mounts in a compact 80-pin LQFP surface mount package measuring 14mm x 14mm x 1.4mm.
- Supports a wide voltage range from 1.71V minimum to 3.6V maximum supply voltage.
- Includes peripherals such as 16-bit ADCs, 12-bit DACs, 3 analogue comparators, and 2 timers.
- Operates reliably between the temperatures of -40°C to 105°C for industrial applications.
- Kinetis K2x series offers integrated USB 2.0 OTG support and device charge detection features.
Product Description
NXP MK20DN512VLK10 Kinetis K2x ARM Cortex M4 Microcontroller delivers high performance embedded processing with a 100 MHz clock speed, 512kB flash, and 128kB RAM in a compact 80-pin LQFP surface mount form factor.
Engineered for industrial, automotive, and consumer electronics applications, this microcontroller supports a wide voltage range (1.71V to 3.6V) and operates reliably between -40°C and 105°C ambient temperature.
It integrates multiple analogue and digital peripherals including 16-bit ADCs, 12-bit DACs, analogue comparators, timers, and supports USB 2.0 On-The-Go (OTG) capability with device charge detection and USB crystal-less functionality, facilitating versatile connectivity and control.
The ARM Cortex M4 core with DSP instructions enables high-efficiency computation and signal processing tasks with low power consumption, suitable for resource-constrained embedded systems.
The 80-pin LQFP package (14mm x 14mm x 1.4mm) allows easy PCB layout and surface mount assembly, ideal for compact designs. Program memory is implemented in FLASH technology providing dependable non-volatile memory storage for firmware applications.
This microcontroller is part of the Kinetis K2x family, known for pin and software compatibility across a range of MCU families, supporting scalable solutions from 32kB to 1MB flash memory variants.
Suitable for embedded control, industrial automation, communications, and other advanced applications requiring integrated peripherals, scalable memory and robust performance. Features a 32-bit ARM Cortex M4 core with DSP instructions for enhanced performance.
Equipped with 512kB of flash memory and 128kB of RAM for extensive program and data storage. Operates at up to 100 MHz maximum clock frequency ensuring efficient processing speed. Mounts in a compact 80-pin LQFP surface mount package measuring 14mm x 14mm x 1.4mm.
Supports a wide voltage range from 1.71V minimum to 3.6V maximum supply voltage. Includes peripherals such as 16-bit ADCs, 12-bit DACs, 3 analogue comparators, and 2 timers. Operates reliably between the temperatures of -40°C to 105°C for industrial applications.
Kinetis K2x series offers integrated USB 2.0 OTG support and device charge detection features. Program memory type is FLASH delivering non-volatile storage with robust performance. Instruction set architecture incorporates DSP operations, expanding computational abilities.
Explore EnvMart’s extensive selection of Microcontrollers and semiconductor products for advanced electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the MK20DN512VLK10 microcontroller is 100 MHz, ensuring efficient processing speed for various applications.
This model is equipped with 512kB of FLASH program memory, providing ample storage for firmware applications.
The microcontroller features 128kB of RAM, allowing for extensive program and data storage capabilities.
It operates reliably within a temperature range of -40°C to 105°C, suitable for industrial applications.
The MK20DN512VLK10 is housed in an 80-pin LQFP (Low-Profile Quad Flat Package), measuring 14mm x 14mm x 1.4mm.
It supports a wide supply voltage range from 1.71V to 3.6V, accommodating various power supply configurations.
This model includes multiple peripherals such as 16-bit ADCs, 12-bit DACs, 3 analogue comparators, and 2 timers.
Yes, it integrates USB 2.0 On-The-Go (OTG) support with device charge detection features, facilitating versatile connectivity.
It features a 32-bit ARM Cortex M4 core with DSP instructions, enhancing performance for computation and signal processing tasks.
The height of the LQFP package is 1.4mm, which is suitable for compact PCB designs.
This microcontroller is part of the Kinetis K2x series, known for its pin and software compatibility across different MCU families.
The instruction set architecture includes DSP operations, which expand its computational capabilities for various applications.
