TE Connectivity PCB Signal Relay 24V dc Coil 1A DPDT V23026A1004B201
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Height | 6.9mm |
| Length | 13mm |
| Model | V23026A1004B201 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom P1 |
| Maximum Operating Temperature | 85°C |

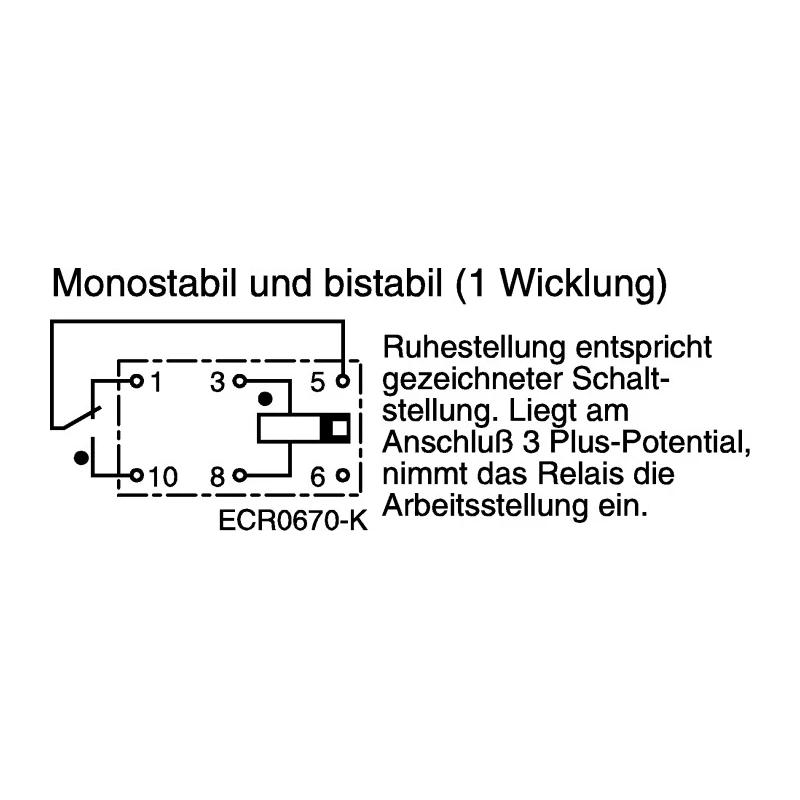

| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 4500Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 150V ac |
| Coil Power | 128mW |
Key Features
- The relay supports a switching current of 1 ampere with AC voltage up to 150V and DC voltage up to 125V.
- It operates efficiently at coil power of 128mW with a coil resistance of 4500 ohms.
- The device uses gold plated contact material ensuring reliable and low-resistance connections.
- Operating temperature range extends from -40°C up to 85°C suitable for industrial environments.

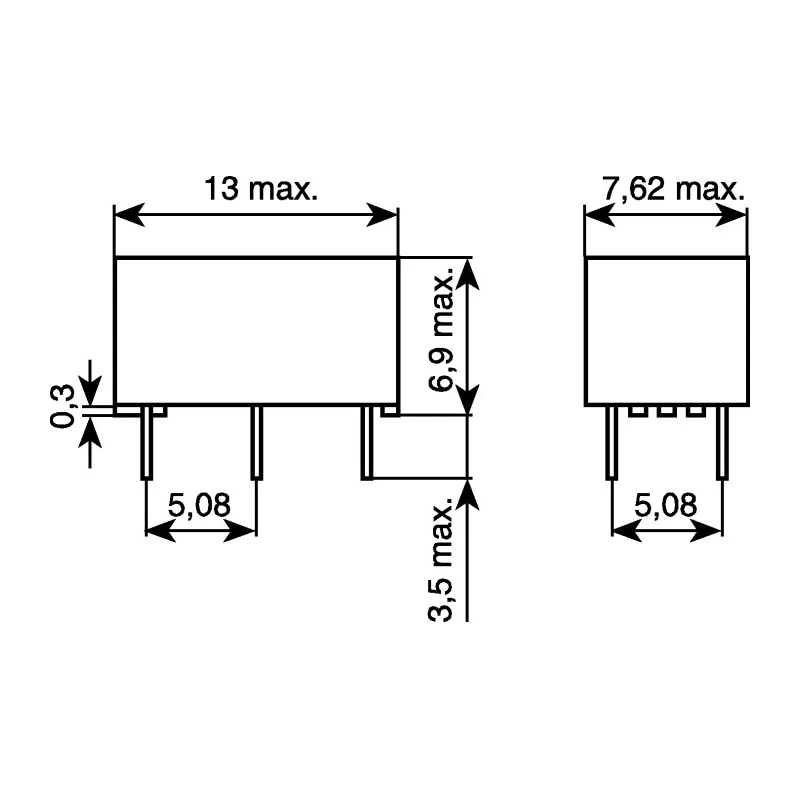

- Compact dimensions of 13mm length, 7.5mm width, and 6.9mm height make it ideal for space-constrained PCB designs.

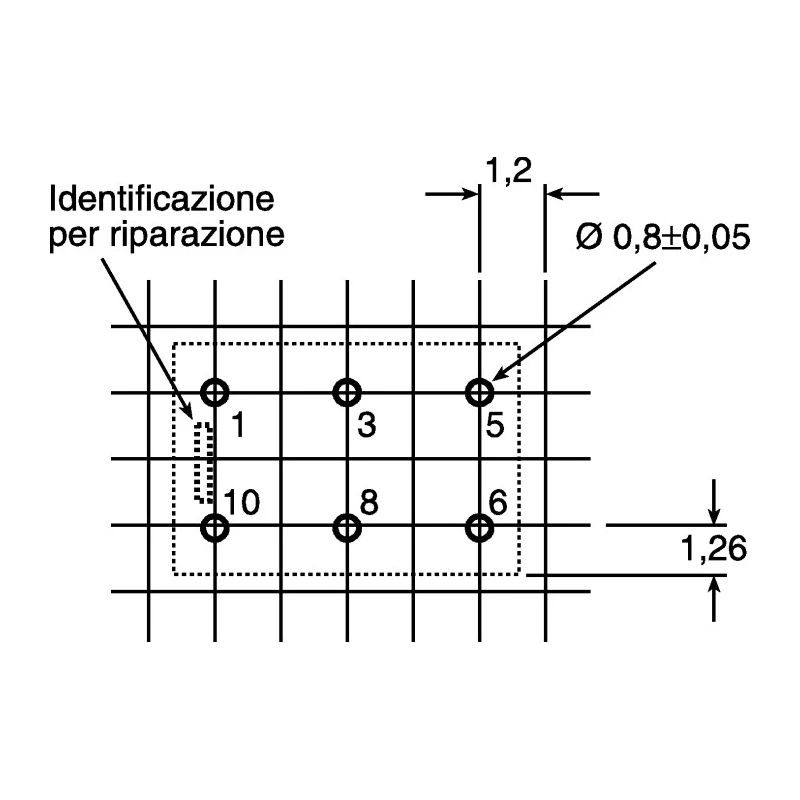

- Through hole terminal type provides secure soldering and mounting on printed circuit boards.
- Conforms to RoHS standards ensuring environmentally compliant manufacturing.
- Manufactured in Germany, ensuring high quality and reliability.
Product Description
TE Connectivity V23026A1004B201 PCB Signal Relay is a highly reliable Axicom P1 sub-miniature relay designed for precision electronic applications. Featuring a 24V dc coil and DPDT (Double Pole Double Throw) contact configuration, this relay is suitable for switching loads up to 1A and voltages up to 150V AC or 125V DC.
The relay's coil power consumption is low at 128mW, with a coil resistance of 4500 ohms, making it suitable for power-sensitive designs. The gold plated contacts ensure excellent conductivity and long service life, minimizing contact resistance and switching noise.
Designed with through hole terminals, the relay facilitates sturdy PCB mounting ideal for industrial automation, instrumentation, and control systems. Its compact size - 13mm x 7.5mm x 6.9mm - allows efficient use of PCB real estate, especially in high-density circuit designs.
Engineered to operate in harsh environments, it handles temperature ranges from -40°C to 85°C and complies with RoHS environmental standards, making it suitable for global industrial applications. The product is made in Germany, under TE Connectivity's stringent quality assurance program.
The product supports switching current of 1 ampere under AC and DC voltages. Coil voltage of 24 volts direct current provides stable actuation. Gold plated contacts ensure excellent signal integrity and durability. Compact sub-miniature form factor helps in space-saving PCB layouts.
Through hole mounting type provides secure mechanical and electrical connection. RoHS compliance certifies environmentally safe production standards. Wide operating temperature range makes it suitable for industrial and commercial applications.
Manufactured in Germany assuring high build quality and performance.
This TE Connectivity PCB Signal Relay is ideal for industrial automation, control panels, manufacturing equipment, telecommunications, and other electrical/system integration applications. Its reliable switching capabilities enable efficient load management and system control in demanding environments.
Explore the Electronics & Electricals category at EnvMart for more relays and contactors to meet your system design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a switching current of 1 ampere.
The coil voltage for this model is 24V DC.
The dimensions are 13mm in length, 7.5mm in width, and 6.9mm in height.
It operates efficiently within a temperature range of -40°C to 85°C.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 4500 ohms.
It uses a through hole mounting type for secure soldering on printed circuit boards.
The contacts are made of gold plated material, ensuring reliable connections.
Yes, it conforms to RoHS standards, ensuring environmentally compliant manufacturing.
This relay is manufactured in Germany.
The maximum AC voltage that this relay can switch is 150V.
This model is suitable for industrial automation, control panels, and telecommunications applications.
