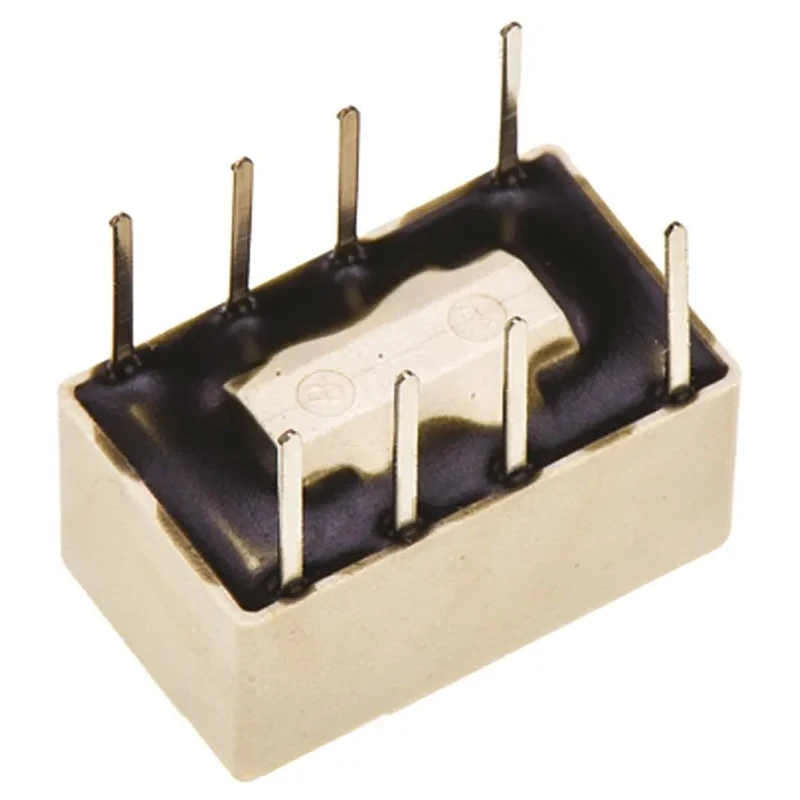

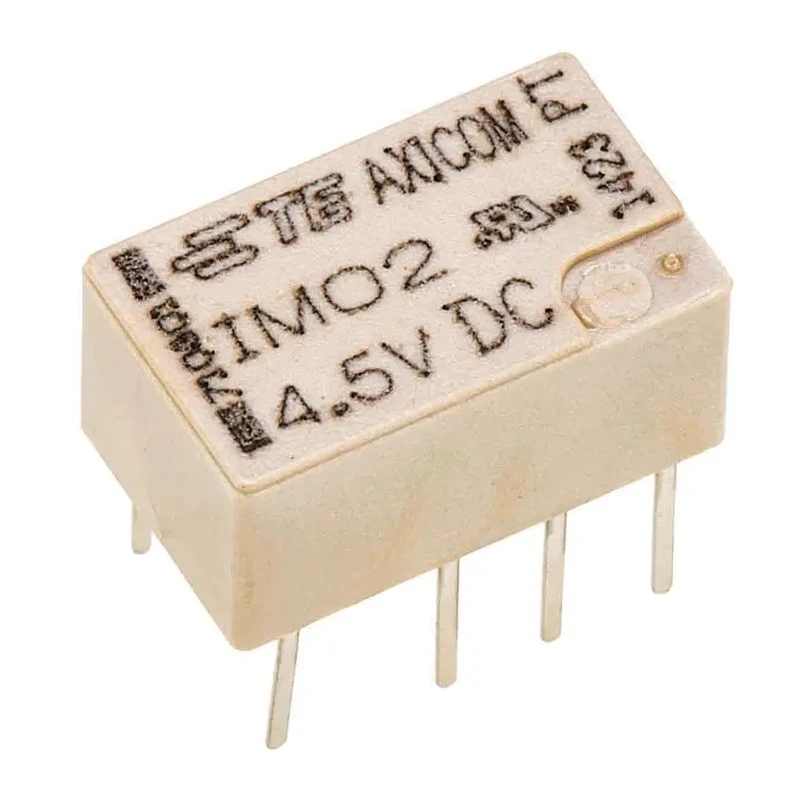

TE Connectivity PCB Signal Relay 4.5V DC Coil, 2A Switching Current, DPDT Contact Configuration IM02TS

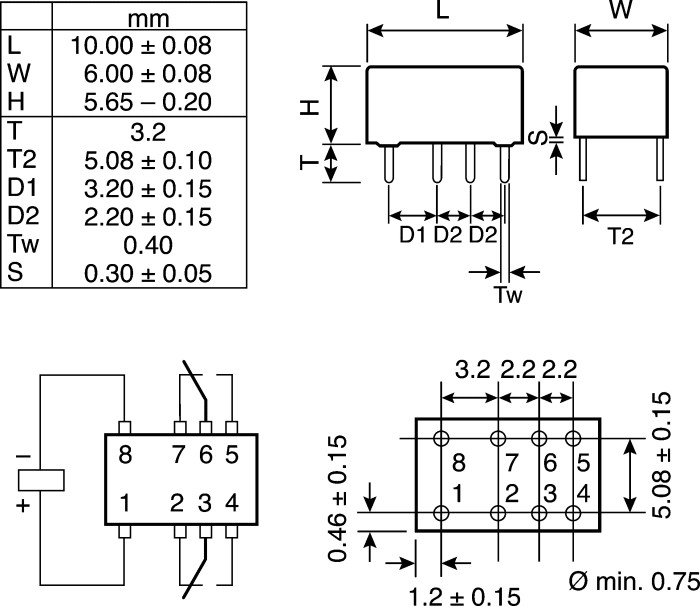

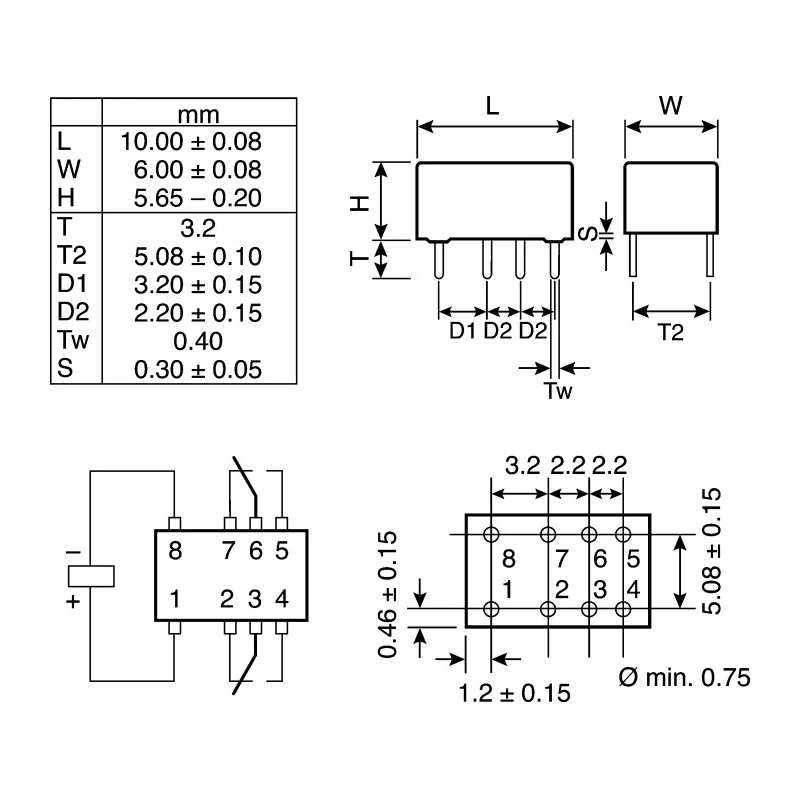

TE Connectivity IM02TS PCB Signal Relay features a coil voltage of 4.5V DC with a switching current of 2A and DPDT (dual pole double throw) contact configuration. This compact relay is designed for PCB mounting and measures 10 mm in length, 6 mm in width, and 5.65 mm in height, making it suitable for applications requiring minimal board space.

Constructed with gold plated bifurcated contacts, the relay offers high conductivity and reliability. It is hermetically sealed (RT V) with an IP67 rating, protecting internal components against dust and moisture ingress. The relay withstands high mechanical shock resistance up to 300G functional and 500G survival, ensuring durability in demanding environments.

Operating temperature ranges from -40°C to 85°C allow use in various industrial and commercial settings. The coil power consumption is notably low at 140mW, improving energy efficiency for continuous operation. Additionally, the relay meets rigorous standards for surge capability, complying with Telcordia GR 1089, FCC Part 68, and ITU-T K20, 21, 45, supporting telecommunications and telephony equipment reliability.

Recommended for applications including telecommunication equipment, optical network terminals, office and test equipment, medical instrumentation, and automotive systems, this relay combines performance with compactness for enhanced design flexibility.

Slimline, low profile measuring 10 x 6 x 5.65 mm. Gold plated bifurcated contacts. Hermetically sealed with IP67 protection. High mechanical shock resistance up to 300G functional. Wide operating temperature -40°C to +85°C.

Low coil power consumption of 140mW. High dielectric surge capability compliant with telecomm standards. Versatile application in telecommunications, medical, automotive, and office equipment. Explore the full range of industrial Signal Relays on EnvMart for reliable component sourcing and design innovation.
