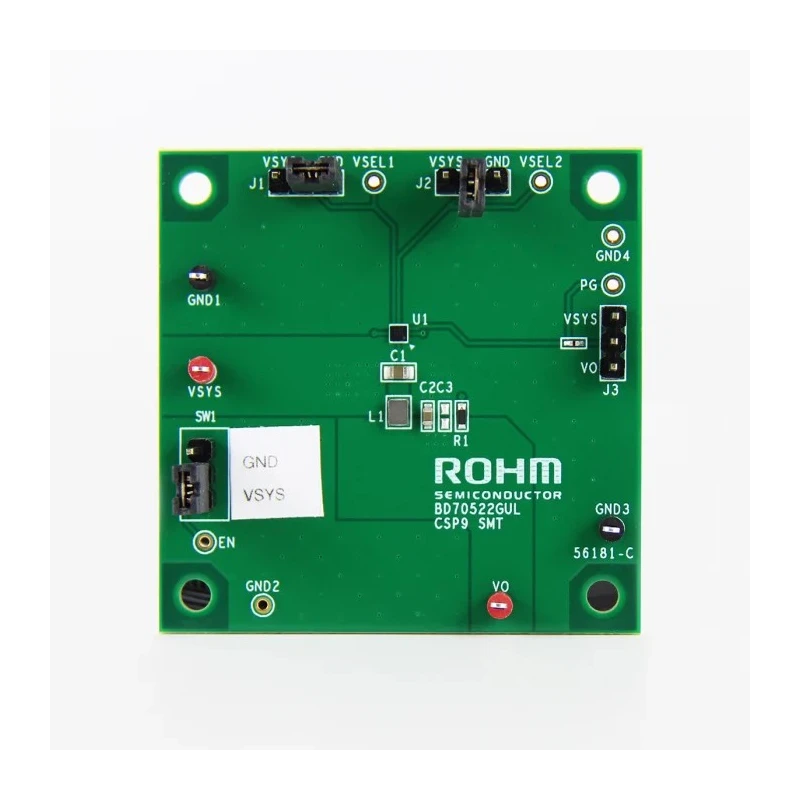

ROHM Buck Converter Evaluation Board for BD70522GUL Model , 180nA Quiescent Current, 500mA Output Current, US Origin
Specifications
| Country of Origin | United States |
|---|---|
| Brand | ROHM |
| Model | BD70522GUL |
| For Use With | BD70522GUL Buck Converter |
| Kit Classification | Evaluation Board |
| Featured Device | BD70522GUL |
| Kit Name | Evaluation Board |
Key Features
- Features a constant ON-Time control with ultra low power (ULP) mode.
- Supports output current up to 500mA with only 180nA quiescent current.
- Selectable output voltages from 9 preset levels between 1.2V and 3.3V.
- Equipped with discharge function on VOUT and 100% ON mode for low input voltages.
- Ideal for energy harvesting and low current standby applications.
- Designed for portable and wearable devices, smoke detectors, and thermostats.
- Manufactured in the United States, ensuring quality and reliability.
Product Description
The ROHM BD70522GUL-EVK-101 Buck Converter Evaluation Board is designed for detailed evaluation of the BD70522GUL buck converter IC, featuring an ultra-low quiescent current of 180nA and an output current capability of up to 500mA. This board employs Constant ON-Time (COT) control with an ultra-low power mode that achieves excellent light load efficiency below 10μA load range, extending battery life in portable applications.
The output voltage can be selected using VSEL pins offering nine preset voltages: 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.2V, and 3.3V. The device has built-in discharge function on VOUT, and it enters a 100% ON mode when the input voltage approaches the output voltage, ceasing switching to maximize efficiency.
This evaluation board is ideal for developers working on energy harvesting, low quiescent current applications without a standby switcher, and a variety of portable and wearable electronic devices. Typical uses include smoke detectors and thermostats where power efficiency and battery life are critical.
Constant ON-Time control with ultra-low power (ULP) mode for efficient operation. 180nA quiescent current minimizes energy consumption during standby. Output current capability up to 500mA supports a range of load requirements.
Nine selectable output voltages from 1.2V to 3.3V via VSEL pins. Discharge function on VOUT enhances safety and performance. 100% ON mode operation for low input voltage conditions improves energy efficiency. Manufactured in the United States guaranteeing high-quality standards.
This evaluation board is a valuable tool for power management development in industrial, laboratory, and commercial electronics fields, including energy harvesting systems, portable electronics, and HVAC controls.
Explore more products within the Buck Converter and power management categories on EnvMart for comprehensive solutions tailored to your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an output current capability of up to 500mA.
The evaluation board features nine preset output voltages: 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.2V, and 3.3V, which can be selected using VSEL pins.
It has an ultra-low quiescent current of 180nA, which minimizes energy consumption during standby.
The board enters a 100% ON mode when the input voltage approaches the output voltage, ceasing switching to maximize efficiency.
The ROHM Buck Converter Evaluation Board is manufactured in the United States, ensuring quality and reliability.
It employs Constant ON-Time (COT) control with an ultra-low power mode for efficient operation.
This unit is ideal for energy harvesting, low current standby applications, portable and wearable devices, smoke detectors, and thermostats.
The evaluation board includes a discharge function on VOUT, enhancing safety and performance.
The board achieves excellent light load efficiency below a 10μA load range, extending battery life in portable applications.
It serves as a valuable tool for power management development in industrial, laboratory, and commercial electronics fields.
The featured device on this evaluation board is the BD70522GUL model.
This product is classified as an Evaluation Board kit for the BD70522GUL Buck Converter.
