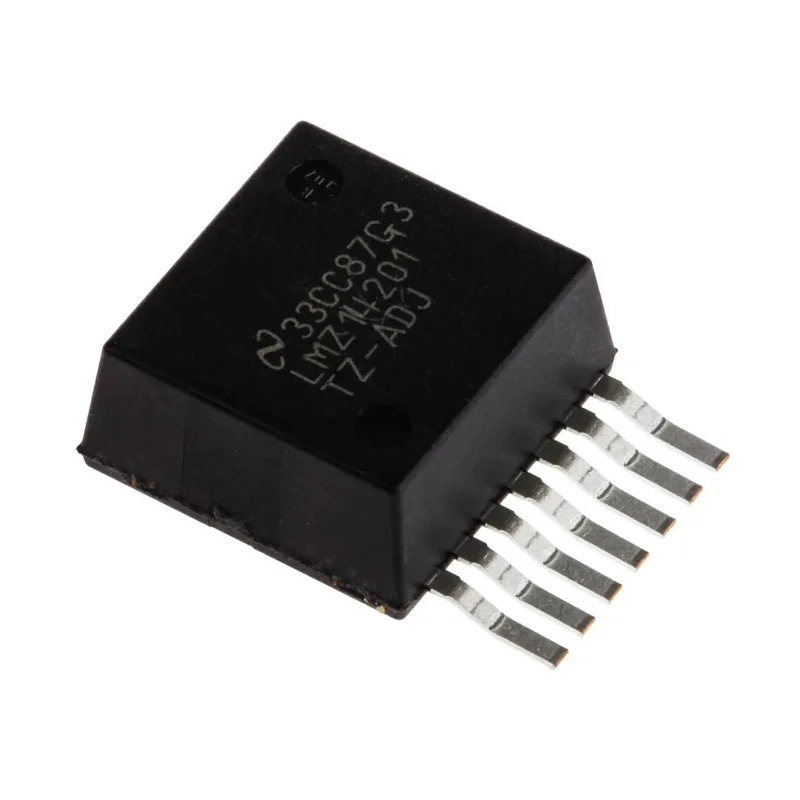

Texas Instruments Buck Converter Surface Mount 6V Output Voltage 1A Output Current LMZ14201TZ-ADJ/NOPB

The Texas Instruments LMZ14201TZ-ADJ/NOPB is a high-performance buck converter designed for surface mount applications requiring a stable 6V output voltage at 1A output current. This module belongs to the LMZ-1 Series SIMPLE SWITCHER® power modules, known for their ease of use and robust design.

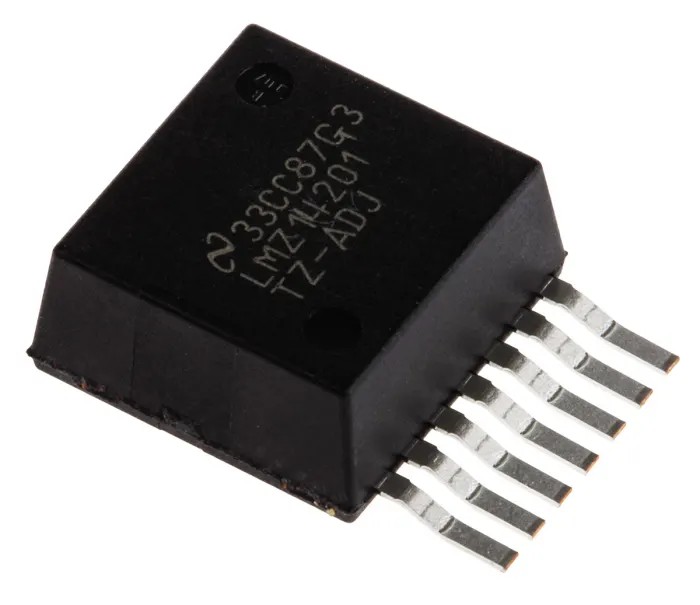

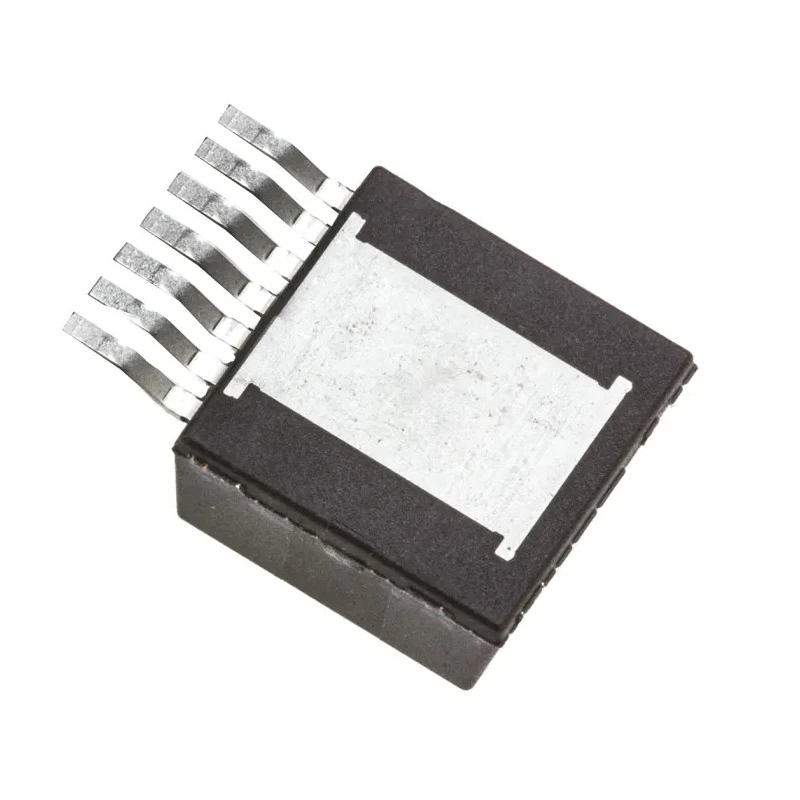

Featuring a compact TO-PMOD 7-pin package with dimensions of 10.16mm length, 9.85mm width, and 1.3mm depth, the converter delivers superior thermal performance, allowing operation in environments with temperatures up to 125°C. It supports a wide input voltage range from 6V to 42V, catering to various power supply requirements.

The module includes precision enable and soft-start pins, offering excellent control over power-up sequencing and reducing inrush currents. The integrated shielded inductor and non-isolated design provide enhanced EMI protection, making it suitable for demanding industrial, manufacturing, and electronic applications.

High 92% efficiency reduces heat dissipation and improves energy conservation. Compliant with industry standards including REACH, ANSI, JEDEC, RoHS, and ESDA ensuring reliability and safety. Line regulation is tightly controlled at 0.01%, guaranteeing stable output despite input variations.

Load regulation of 1.5 mV/A maintains crisp voltage under varying load conditions. Compact size is ideal for space-constrained power designs in laboratory and commercial equipment. 7-pin TO-PMOD package facilitates straightforward PCB layout and assembly.

Designed for use in industrial automation, telecommunications, and power management systems.

This Buck Converter hence provides an all-in-one power solution that meets both standard feature set requirements and those demanding extreme operating conditions. Its robust design and easy-to-use packaging enable engineers to optimize electronic systems efficiently.
