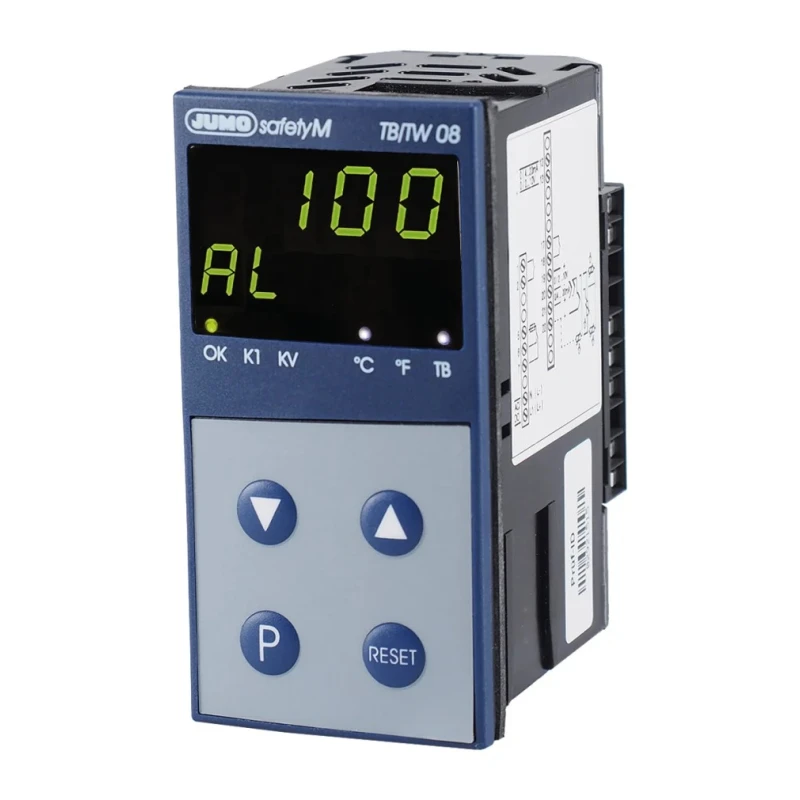

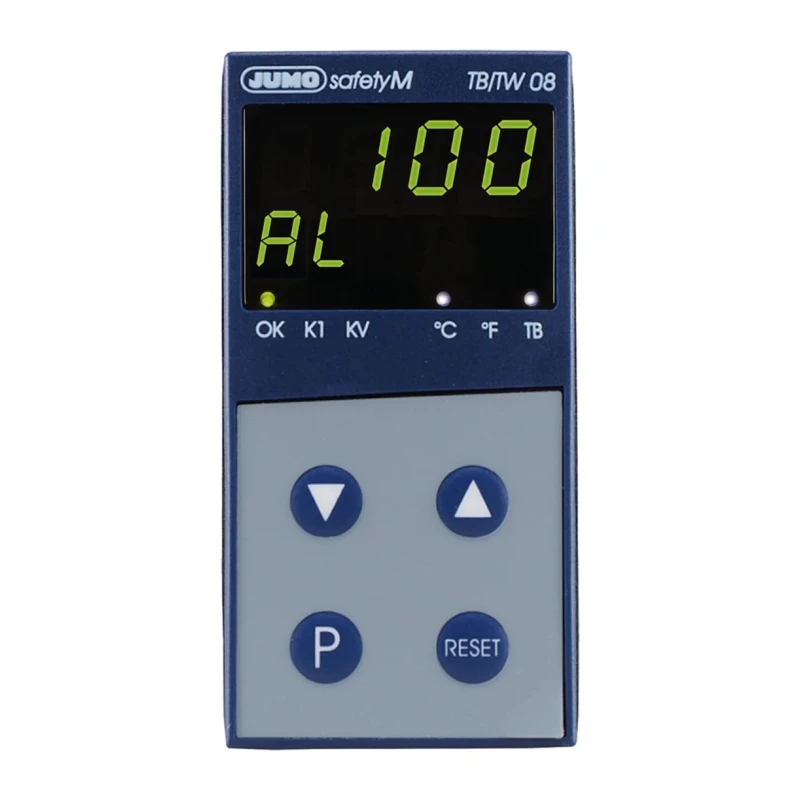

Jumo safetyM TB/TW 08 Panel Temperature Limiter 2 Input 3 Output Relay 240V On-Off 701170/8-0153-1001-23/005

Jumo 701170/8-0153-1001-23/005 safetyM TB/TW 08 Panel Temperature Limiter is a highly reliable and versatile temperature limitation device with 2 inputs and 3 relay outputs operating at 240V On-Off control.

This device is freely programmable to monitor thermal processes by setting precise limit values. It accepts a variety of measuring inputs including RTD temperature probes, thermocouples, and current or voltage signals, making it adaptable for diverse industrial applications.

Featuring a digital input filter with adjustable time constant, it enhances measurement stability and control accuracy. The pre-alarm function can be set as an absolute value or relative distance to the limit, allowing early warnings before critical temperature thresholds.

The product includes internal and external unlocking options and is configurable either as TB or TW with 17 available linearizations, ensuring flexibility for tailored thermal monitoring solutions. With 2x Pt100 inputs, it supports differential temperature calculations enhancing monitoring precision.

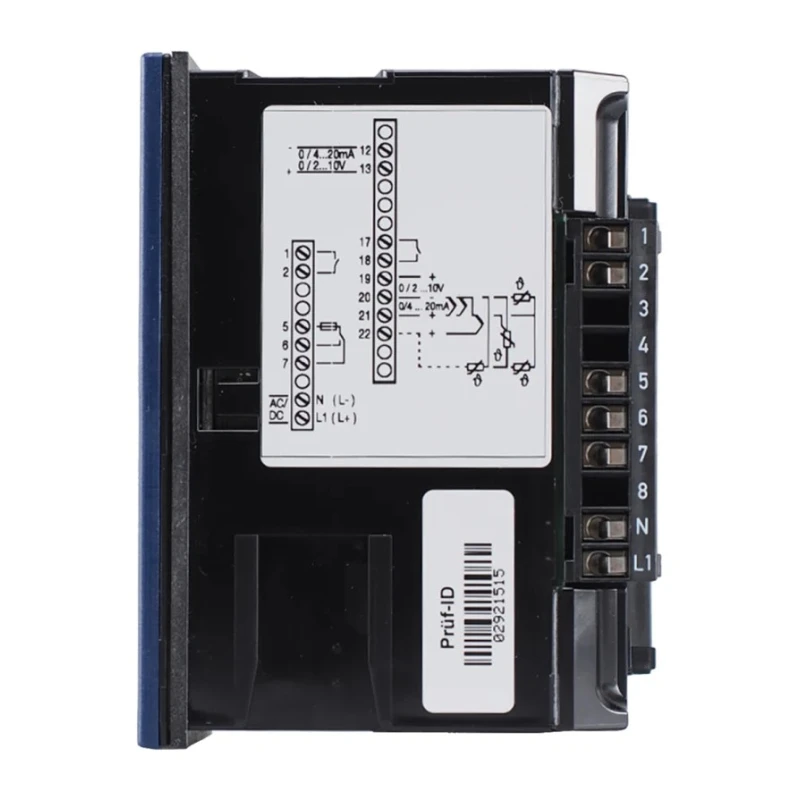

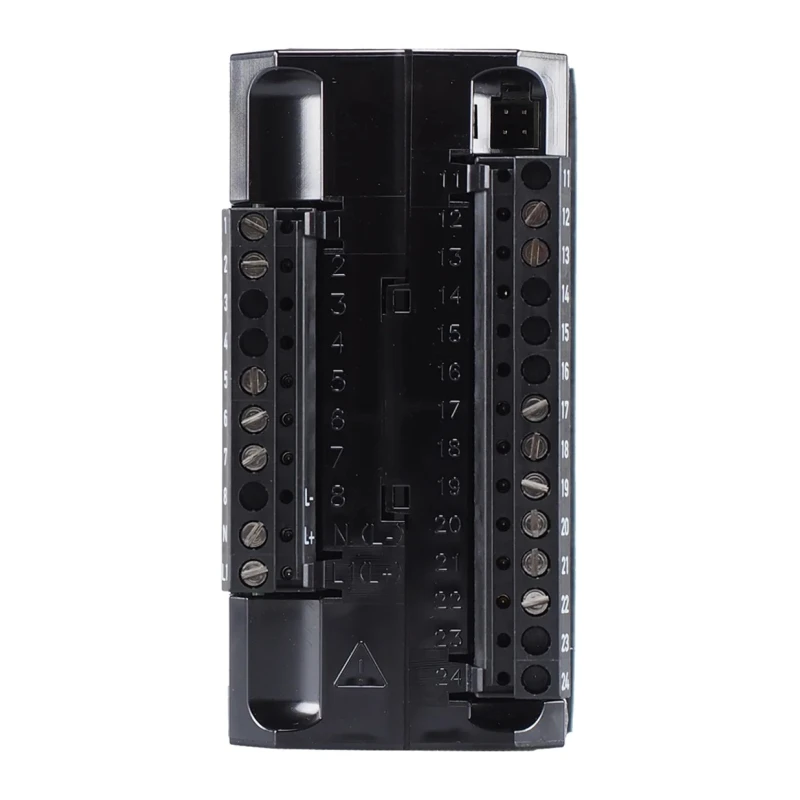

Designed for panel mounting, the device has a compact width of 48mm and panel depth of 67mm. The front is protected to IP65 standards, ensuring ruggedness in harsh industrial environments, while the rear has IP20 protection. The plug-in screw terminal accepts cables up to 2.5mm², simplifying installation and maintenance.

Certified to standards such as UL 60730-2-9, DIN EN 60730-2-9, DIN EN 14597, and DIN CERTCO, this product meets stringent safety and performance requirements.

Ideal for use in HVAC, process control, manufacturing systems, and laboratory equipment, it delivers dependable temperature limitation safeguards to protect systems and processes. Manufactured in Germany, the device assures quality and durability consistent with industrial standards.

Freely programmable measuring input for RTD probes, thermocouples, and current/voltage signals. 2 inputs and 3 relay outputs provide comprehensive temperature monitoring. Digital input filter with adjustable time constant improves signal stability.

Pre-alarm feature configurable as absolute or relative to limit value. Panel mount type with IP65 front protection class for durability. Plug-in screw terminals support up to 2.5mm² cable connections. Internal and external unlocking functionalities ensure operational flexibility.

Supports 17 linearizations and differential value calculation using dual Pt100 inputs. Compliant with multiple international standards including UL and DIN certifications. Manufactured in Germany with a 48mm width and 67mm panel depth.
