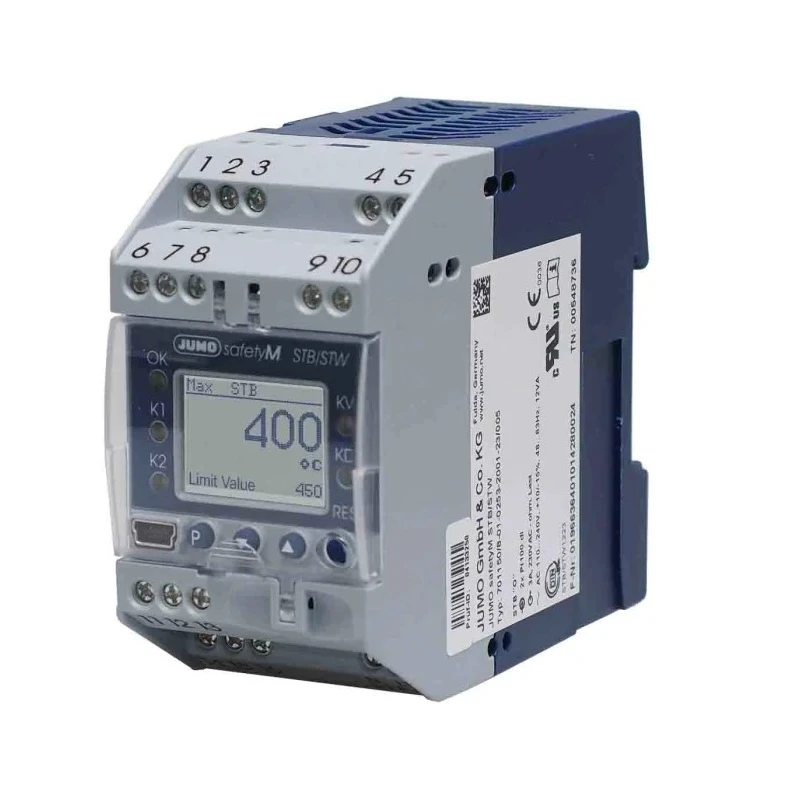

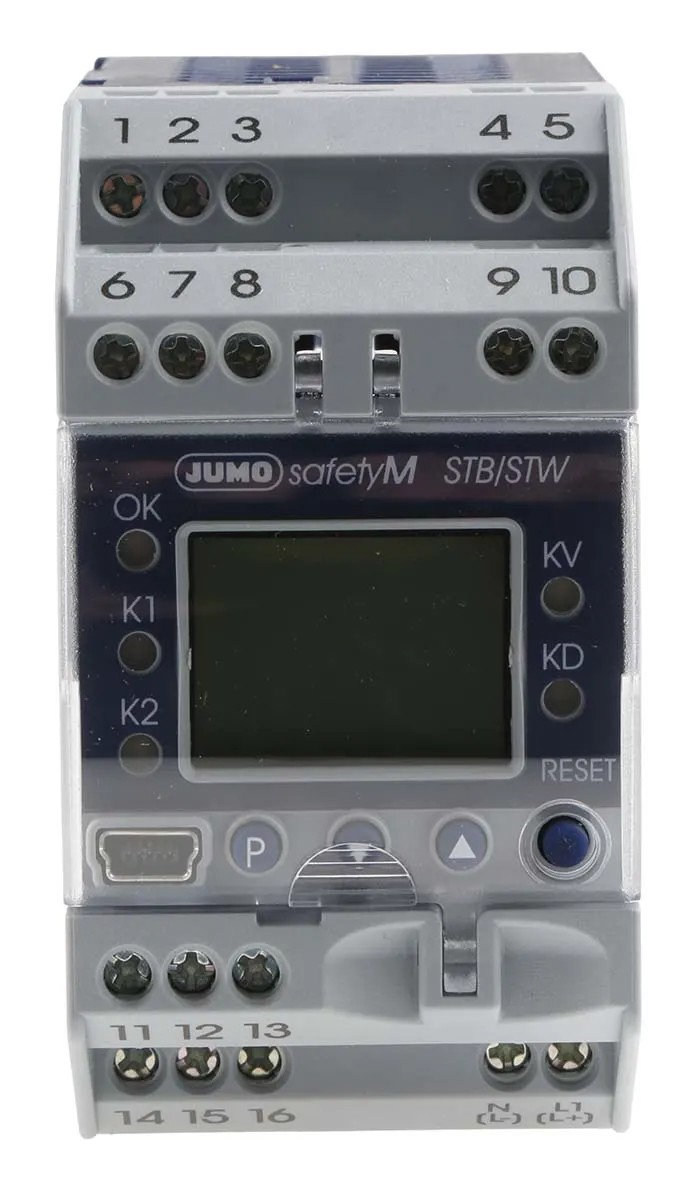

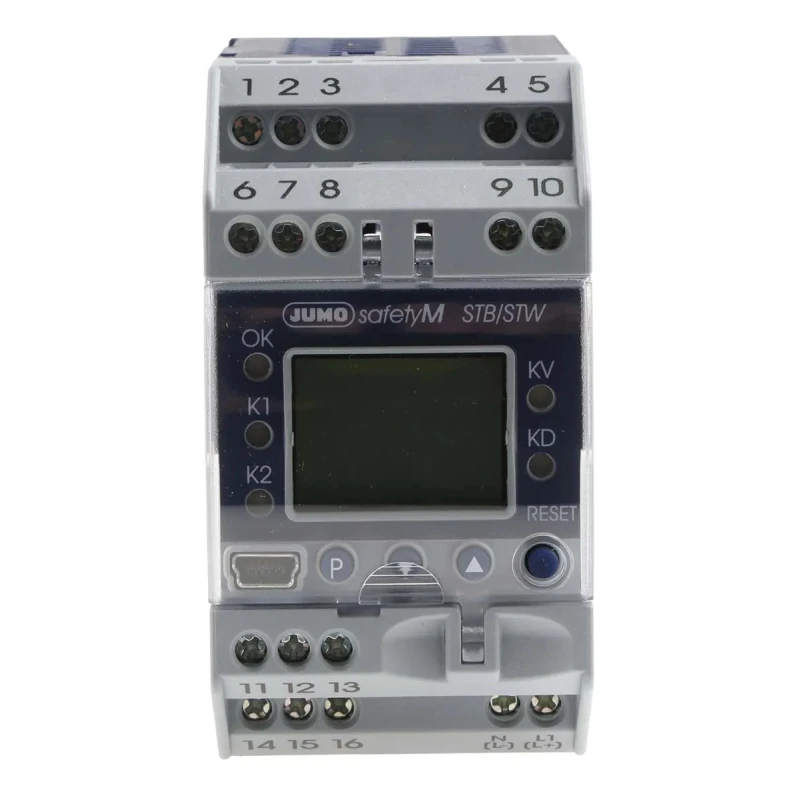

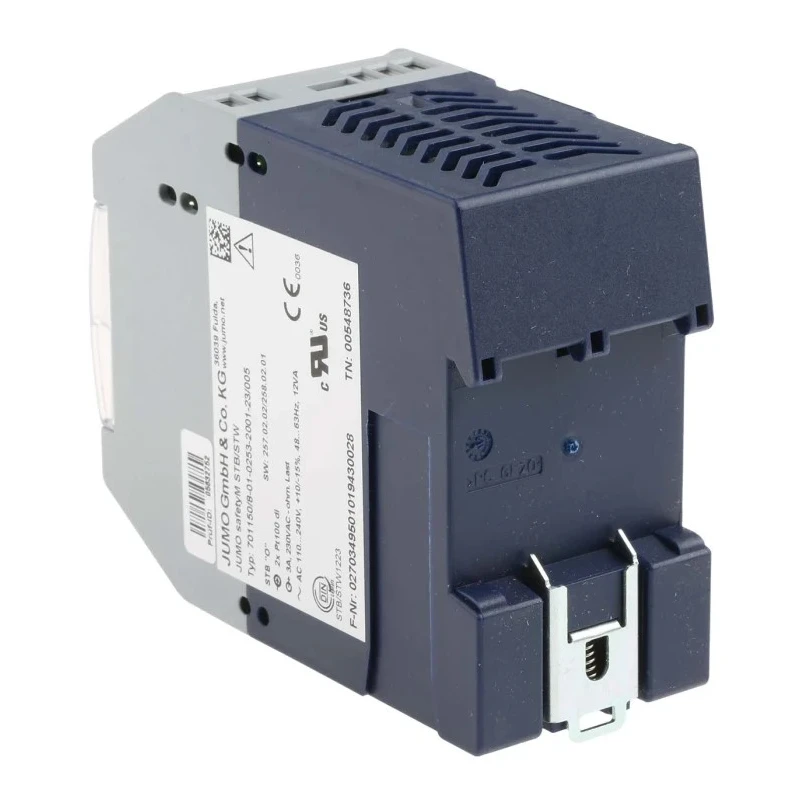

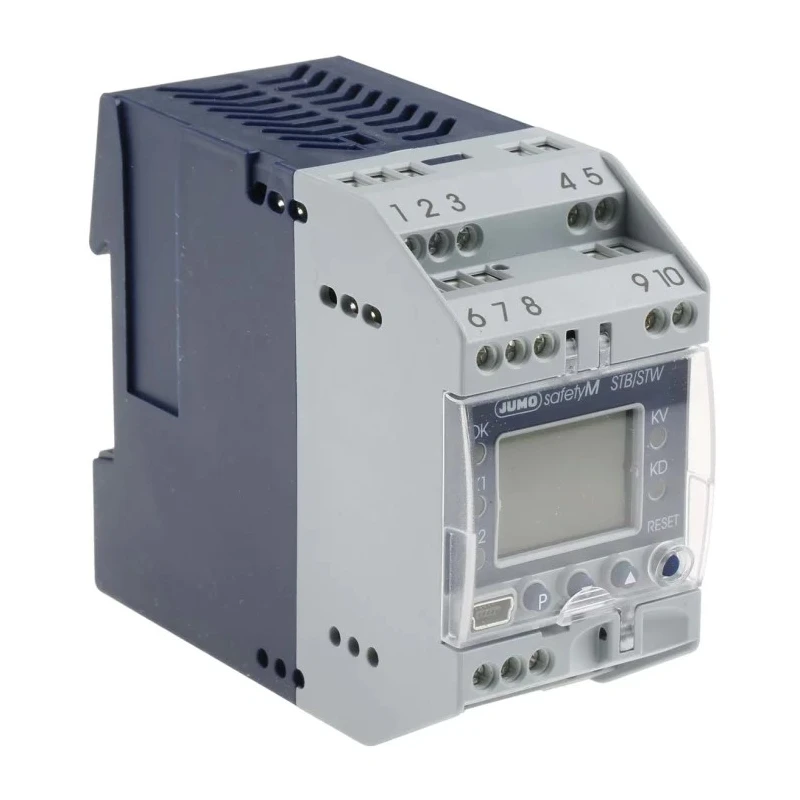

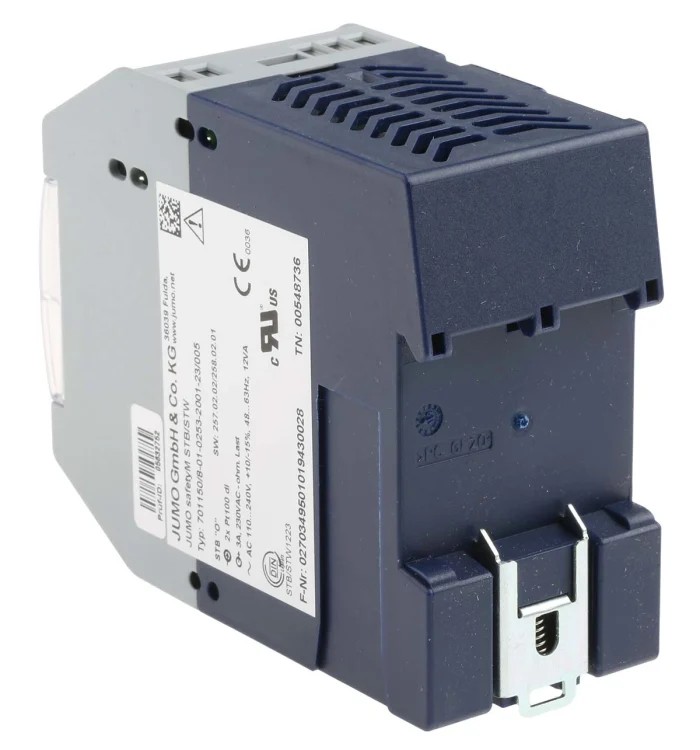

Jumo STB/STW DIN Rail Temperature Limiter 2 Input 2 Output Relay 5A 240V AC On-Off 701150/8-01-0253-2001-23/005

Jumo 701150/8-01-0253-2001-23/005 DIN Rail Temperature Limiter is an advanced thermal safety controller intended for industrial applications requiring reliable temperature monitoring and process safety.

This device features two universal analogue inputs, suitable for PT100 sensors arranged in a 3-wire circuit, and two relay outputs that manage pre-alarms and limit alarms, enabling proactive system shutdown to prevent damage or hazards in thermal processes.

Engineered to operate with a supply voltage range of 110 VAC to 240 VAC and a maximum current of 5 A, it supports single-phase control and is designed for mounting on DIN rails, optimizing installation space and convenience.

The limiter has a compact form factor, measuring 45mm in length, 89.5mm in width, and a panel depth of 104.8mm, enabling integration into control panels with limited space.

The STB/STW series ensures high process safety through its 1oo2D logic structure and offers features such as internal and external unlocking options, digital input filtering with adjustable filter time constants, and a backlit LCD for clear and straightforward operation.

Its operating temperature range of 0°C to 55°C and IP20 rating make it suitable for standard industrial environments. This controller complies with recognized standards including DIN EN 14597, AMS 2750E, and CQI-9, ensuring quality and reliability.

Configuration and archiving of setup data are facilitated via USB interface, enabling straightforward integration with automation and control systems. Equipped with 2 universal analogue inputs and 2 relay outputs for process safety.

Supports PT100 sensors in a 3-wire configuration for accurate temperature measurement. On-Off control type ensures simple yet effective temperature limiting operation. Compact DIN Rail mounting compatible with industrial control panels.

IP20 protection suitable for indoor use in controlled environments. Backlit LCD display simplifies monitoring and configuration. Standards-compliant with DIN EN 14597, AMS 2750E, and CQI-9. Operates safely between 0°C and 55°C ambient temperatures.

Includes USB interface for configuration and setup archiving. Designed and manufactured in Germany ensuring high quality.

This Jumo temperature limiter is ideal for industrial, automation, manufacturing, HVAC, and laboratory thermal control applications where precise temperature monitoring and safety are critical.
