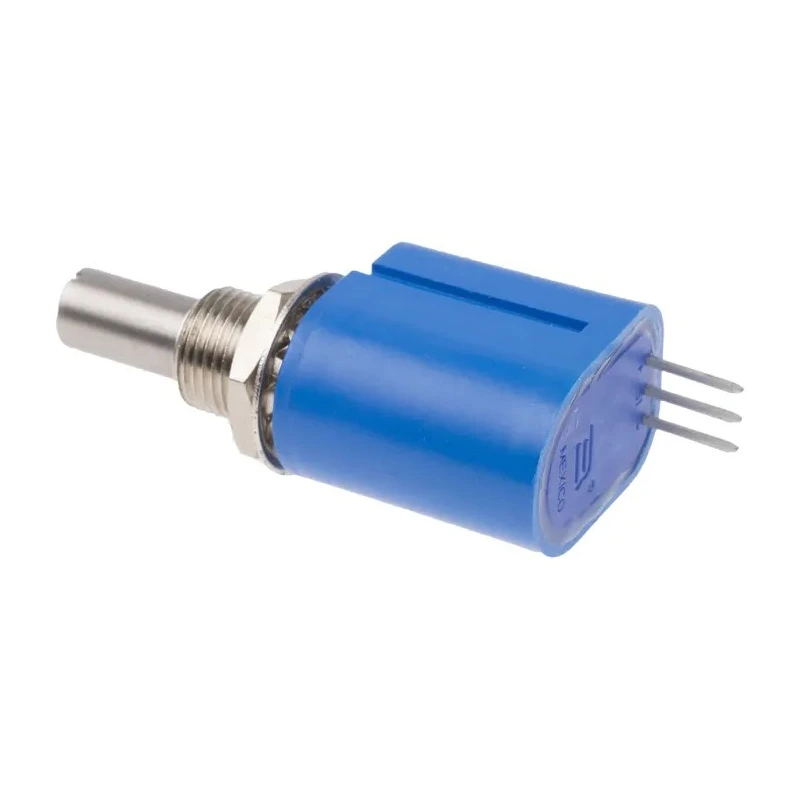

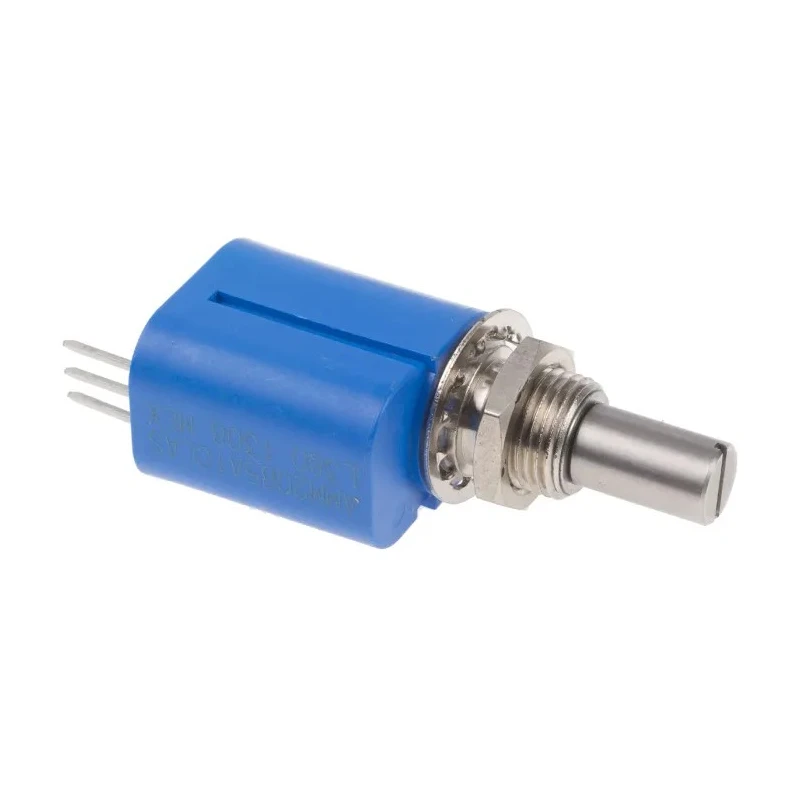

Bourns Block Plastic Analogue Position Sensor 12mA Bush Mount IP50 20.22mm x 14.29mm x 42.17mm AMM20B5A1CLASL380
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Bourns |
| Length | 20.22mm |
| Model | AMM20B5A1CLASL380 |
| Depth | 42.17mm |
| IP Rating | IP50 |
| Width | 14.29mm |
| Mount Type | Bush |
| Housing Material | Plastic |
| Output type | Analogue |
| Series | Amm²0B |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12mA |
| Terminal type | Axial |
| Body Style | Block |
Key Features
- Utilizes non-contacting magnetic technology for high durability and reliability.
- Provides 12-bit resolution with up to 50 million rotational cycles life.
- Features plastic housing with IP50 rating for dust protection.
- Operates reliably from -40°C to 125°C for industrial environments.
- Designed for applications including medical positioning, pneumatic valve feedback, and camera positioning.
- Highly resistant to vibration, shock, fluid, and dust ingress.
- Factory programmable electrical angle ranges from 1080 to 3600 degrees.
- Suitable for rotary position measurement in heavy-duty industrial setups.
Product Description
Bourns AMM20B5A1CLASL380 block plastic analogue position sensor is a versatile multi-turn magnetic rotary Position Sensor designed for industrial and heavy-duty applications. Featuring non-contacting magnetic technology, it provides a highly repeatable and reliable output with a switching current of 12mA and axial terminals configured for bush mounting.
This sensor supports a 12-bit resolution and an exceptional rotational life of up to 50 million cycles, making it ideal for long-term precision positioning feedback. Its factory programmable electrical angle, which can be set between 1080 to 3600 degrees, allows customization for specific applications.
With a robust plastic housing rated IP50 for protection against dust ingress and operating temperature range from -40°C to 125°C, it is engineered to withstand harsh industrial environments. The compact physical dimensions of 20.22 mm length, 14.29 mm width, and 42.17 mm depth ensure it fits into tight spaces on machinery and equipment.
Typical use cases include patient platform positioning feedback in medical devices, pneumatic control valve position sensing, draw wire position measurement, camera and actuator motor positioning, rudder positioning, and tilt control systems. This sensor is highly resistant to vibration, shock, and fluid exposure, enhancing its reliability in demanding manufacturing and automation scenarios.
Non-contacting magnetic technology ensures high durability. 12mA switching current and axial terminal type for easy integration. Plastic body with robust industrial IP50 protection rating. Operating temperature from -40°C to 125°C suits diverse environments.
Compact size: 20.22 mm x 14.29 mm x 42.17 mm. Factory programmable electrical angle for customized rotary measurement. Designed for long service life of up to 50 million cycles. Used in medical, pneumatic, camera, and automotive positioning applications.
Explore the Bourns sensor range on EnvMart to find precision components for your automation and control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 12-bit resolution, ensuring precise output for positioning applications.
The maximum operating temperature for this unit is 125°C, making it suitable for various industrial environments.
It has an IP50 rating, which provides protection against dust ingress.
This model utilizes a bush mount type for easy integration into various setups.
The switching current for this sensor is 12mA, suitable for its operational requirements.
It operates reliably within a temperature range of -40°C to 125°C.
The dimensions of this unit are 20.22 mm in length, 14.29 mm in width, and 42.17 mm in depth.
It has an exceptional life expectancy of up to 50 million rotational cycles.
The housing is made from plastic, providing a lightweight and durable structure.
It is designed for applications including medical positioning, pneumatic valve feedback, and camera positioning.
This model utilizes non-contacting magnetic technology, which enhances its durability and reliability.
Yes, the electrical angle range can be factory programmed between 1080 to 3600 degrees for specific applications.
