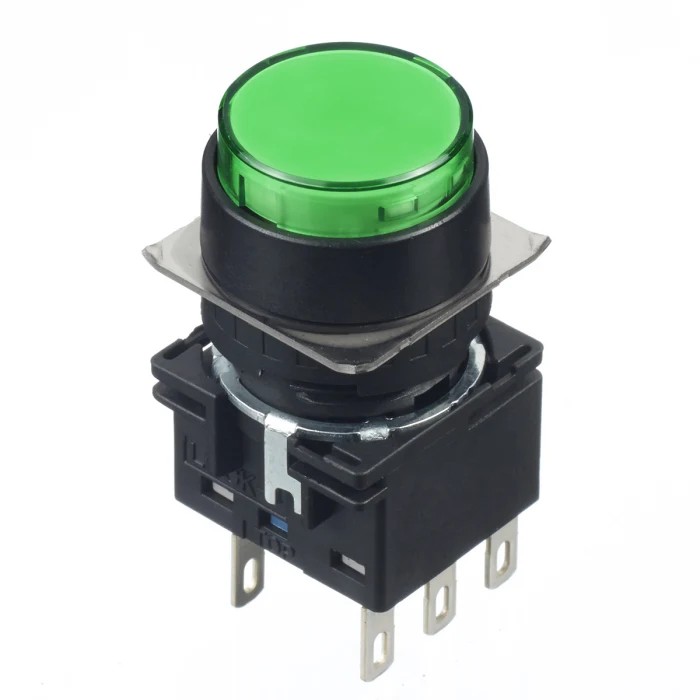

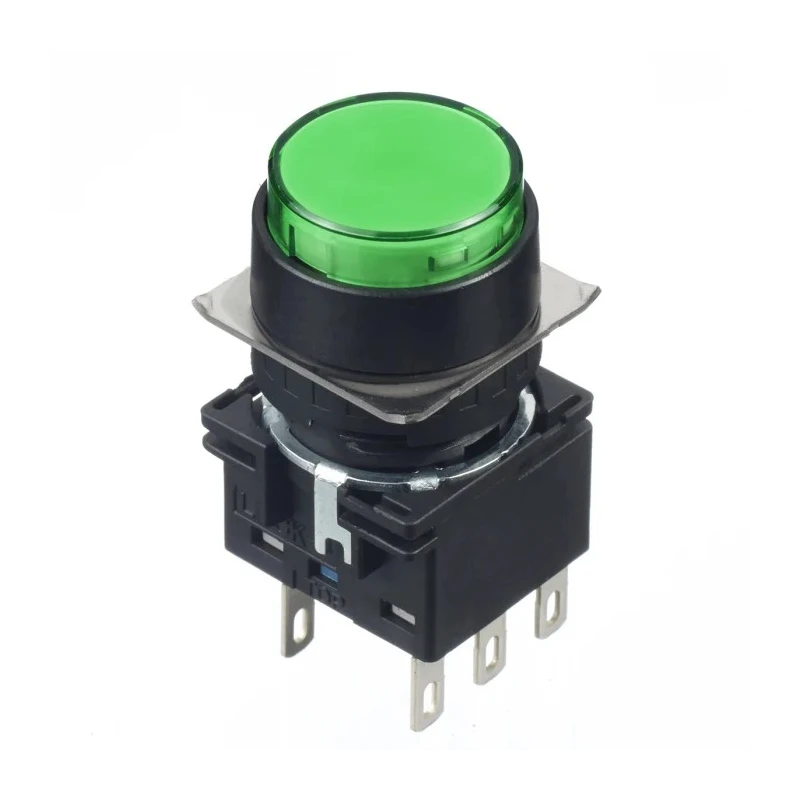

Idec LB Series Illuminated Momentary Push Button Switch, 16 mm Cutout, DPDT, IP65, 30 V dc 125 V ac LB1B-M1T6LG

Name: Idec LB Series Illuminated Momentary Push Button Switch, 16 mm Cutout, DPDT, IP65, 30 V dc 125 V ac LB1B-M1T6LG
Brand: Idec
SKU: 230425
Price: 15.72 USD
Availability: InStock



Category Push Button Switches Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Model	LB1B-M1T6LG
IP Rating	IP65
Series	LB
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Panel Cutout Size	16 mm
Terminal type	Solder
Standards/Approvals	UL, CSA, CE, CCC
Switch Operation	Momentary
Actuator Colour	Green
Contact DC Voltage	30V dc
Actuator Style	Round
Switch Contact Current	5A
Contact AC Voltage	125V ac
Legend	Marking Plate or Clear Film can be Inserted/Engraved
Flush Mount	Just 34.9mm depth behind the panel
Standard Mount	27.9mm depth behind the panel

Key Features

Features a green actuator with bright LED illumination to enhance visibility.
Designed for 16 mm panel cutout ensuring easy installation in control systems.
DPDT (Double Pole Double Throw) contact arrangement for versatile switching applications.
Robust IP65 rated construction ensures protection against dust and water ingress.
Rated for 5A contact current supporting loads up to 30 V dc or 125 V ac.
Terminal type is solder allowing secure electrical connections.
Operating temperature range from -25°C to 60°C for wide environmental adaptability.
Suitable for flush mount with 34.9 mm or standard mount with 27.9 mm panel depth.

Product Description

Idec LB1B-M1T6LG is an illuminated, momentary push button switch from the LB series, engineered for industrial and automation control applications. It features a green round actuator designed for a 16 mm panel cutout with double pole double throw (DPDT) contact configuration. This switch delivers reliable switching performance under tough conditions with an IP65 ingress protection rating ensuring resistance to dust and water.

The switch supports an electrical rating of 5A contact current with maximum voltages of 30 V dc and 125 V ac, suitable for various industrial control circuits. It offers easy and secure solder terminal connections and is rated for operation within a broad temperature range from -25°C up to 60°C, making it suitable for diverse environmental conditions.

Its sleek flush mount design has a panel depth of just 34.9 mm, while the standard mount option has a depth of 27.9 mm behind the panel, allowing for flexible installation in tight control enclosures. The LB series push button switches feature LED illumination for clear visibility and include options for marking plates or films that can be customized with engravings.

Certified with UL, CSA, CE, and CCC approvals, this product meets international safety and quality standards. It is manufactured in Japan, ensuring high build quality and reliability for demanding applications.

Green illuminated actuator enhances operator signaling and status indication. Momentary switch operation returns to off position after engagement. Double pole double throw contact configuration for complex circuit control.

IP65 rated enclosure protects internal components from dust and water. Solder terminal type provides durable and secure electrical connections. Wide operating temperature range enables use in harsh environments. Flush or standard mounting options suit various panel configurations.

Compliance with major international certifications ensures safe operation. Customizable legend plates facilitate clear switch identification. Designed primarily for industrial automation, electrical panels, and machinery control systems.
