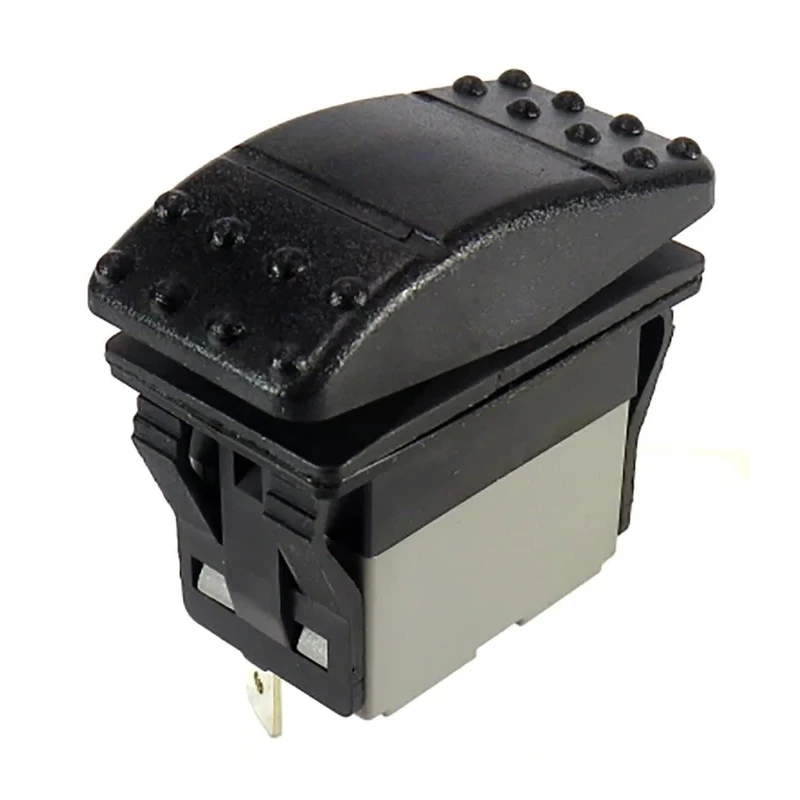

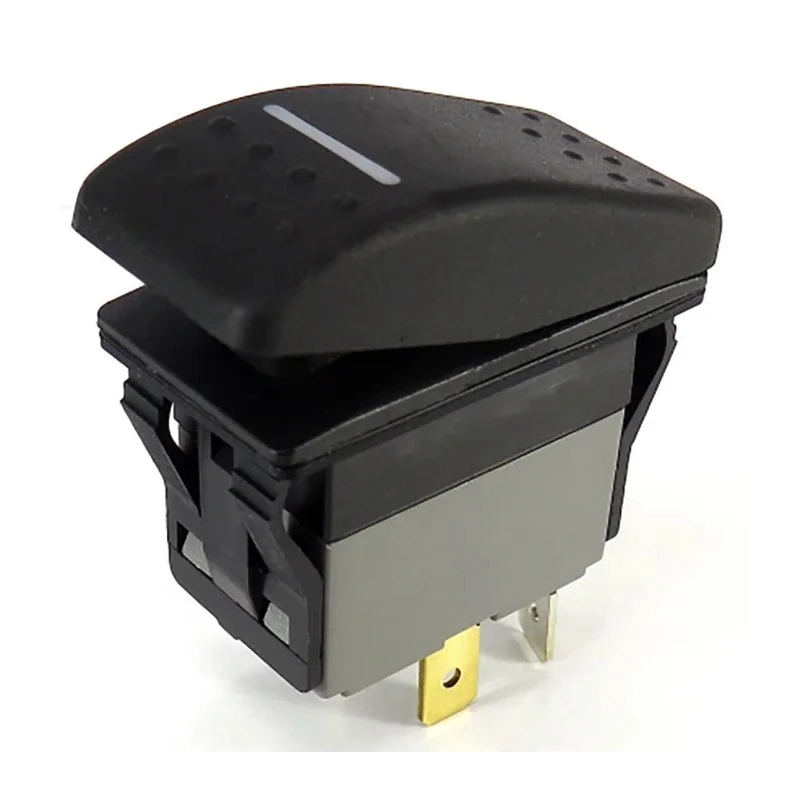

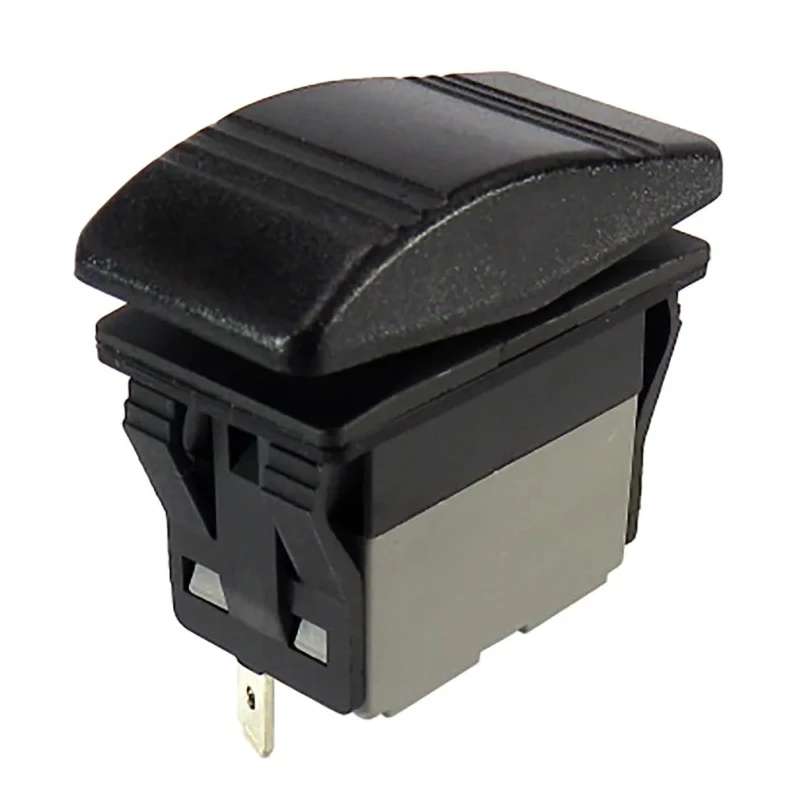

RS PRO Illuminated DPDT On-Off-On On-Off-On Rocker Switch Panel 21.1x37 mm Polyamide IP67 16, 20A Contact Current 174-8308
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 174-8308 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 21.1 x 37 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Colour | Black |
| Contact DC Voltage | 30V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 16, 20A |
| Mechanical Life | 30000Cycles |
| Contact AC Voltage | 250V ac |
Key Features
- DPDT contact configuration allows for versatile circuit control.
- On-Off-On switch operation ensures clear user interfacing.
- Durable polyamide housing material provides high mechanical strength.
- Panel cutout size is 21.1 x 37 mm for panel mounting compatibility.
- Supports 16 and 20 amp switch contact currents for high power applications.
- Black rectangular actuator style with LED illumination for easy status indication.
- Quick connect terminal type simplifies installation on panels.
- IP67 rating guarantees protection against dust and water ingress.
Product Description
RS PRO 174-8308 is an illuminated Double Pole Double Throw (DPDT) rocker switch panel engineered for robust electrical and electronic applications. Featuring an On-Off-On switch operation, it allows precise control over circuits making it suitable for automation, industrial machinery, and control panels.
The switch employs a durable polyamide housing ensuring high mechanical strength and resistance to wear. Designed for panel mounting, it requires a cutout size of 21.1 x 37 mm, providing ease of installation in various control enclosures.
Power handling is robust, with switch contact current ratings of 16 and 20 amps accommodating moderate to high power electrical loads. The black rectangular actuator is illuminated, enhancing operational visibility in low light conditions and including quick connect terminals for straightforward wiring.
Rated IP67, this rocker switch offers excellent protection against dust and temporary immersion in water, making it reliable for harsh environments. It effectively operates within a temperature range of -20°C to 85°C, ensuring stable performance in diverse climates.
Compliance with RoHS certification assures users of its adherence to environmental safety standards. The mechanical life expectancy of this switch is 30,000 cycles, underscoring its durability and reliability over prolonged use.
DPDT configuration allows versatile electrical switching. Illuminated actuator for improved visibility and usability. Polyamide housing ensures ruggedness and durability. Panel mount type with a precise cutout of 21.1 x 37 mm.
Quick connect terminals for ease of installation. IP67 rating for dust and water resistance. Wide operating temperature range from -20°C to 85°C. RoHS compliant for environmental safety. Long mechanical life of 30,000 cycles guarantees reliability.
This RS PRO illuminated DPDT Rocker Switch is ideal for applications in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other commercial electrical systems requiring reliable and visible switching solutions.
Explore more industrial switches and components within the Electronics & Electricals category on EnvMart to find comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rocker switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control.
This model can operate at a maximum temperature of 85°C, making it suitable for various environments.
The required panel cutout size for this switch is 21.1 x 37 mm, ensuring compatibility for panel mounting.
It supports switch contact currents of 16 and 20 amps, accommodating moderate to high power applications.
This rocker switch utilizes quick connect terminals, simplifying the installation process on panels.
It has an IP67 rating, providing excellent protection against dust and temporary immersion in water.
The mechanical life expectancy of this switch is rated at 30,000 cycles, indicating its durability over time.
The housing material is polyamide, which provides high mechanical strength and resistance to wear.
The switch operation type is On-Off-On, allowing for clear user interfacing and control.
The contact DC voltage rating is 30V and the contact AC voltage rating is 250V, suitable for various electrical loads.
Yes, this rocker switch is RoHS compliant, ensuring adherence to environmental safety standards.
This switch is ideal for applications in industrial automation, electrical control panels, HVAC systems, and manufacturing equipment.
