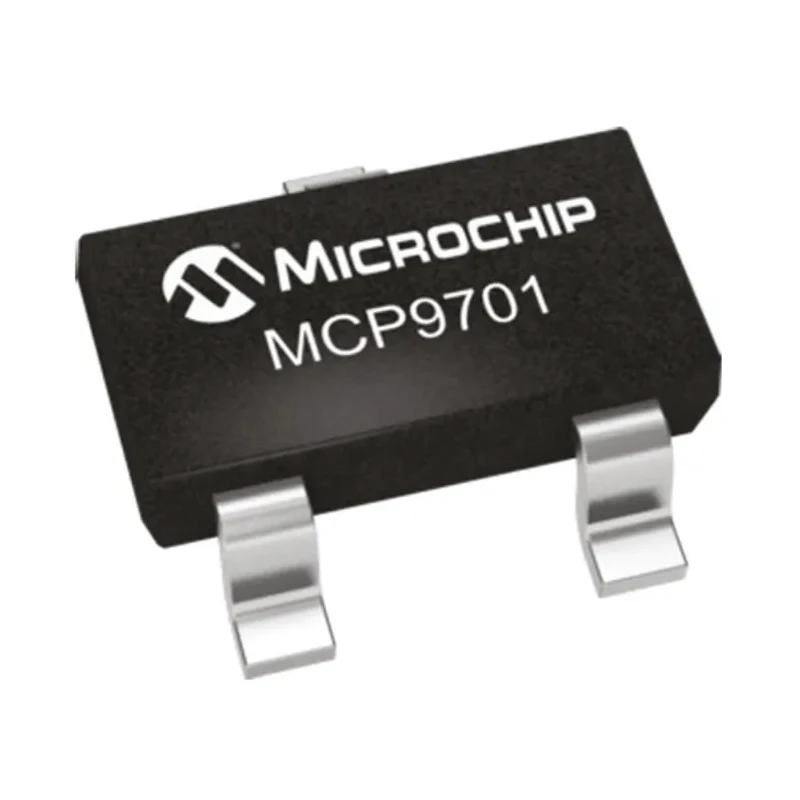

Microchip Voltage Output Voltage Temperature Sensor Surface Mount Analogue ±4°C 3-Pin SOT-23 MCP9701T
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±4°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.05mm |
| Model | MCP9701T |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9701T |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.1V |
| Sensor Gain | 19.5mV/°C |
Key Features
- The sensor converts temperature to a voltage output proportional to temperature changes.
- Operates within a temperature range of -40°C to 125°C for versatile usage.
- Requires a supply voltage from 3.1V up to 5.5V ensuring low power consumption.
- Compact SOT-23 package with dimensions 3.05mm length, 1.4mm width, and 1.02mm height.
- Offers sensor gain of 19.5mV/°C suitable for precise analogue interfacing.
- Ideal for applications in temperature monitoring across office equipment, home appliances, and battery packs.
- Designed to resist parasitic capacitance and drive large capacitive loads reliably.
- New condition product manufactured in Thailand guaranteeing quality and consistency.
Product Description
Microchip MCP9701T series voltage output temperature sensor provides accurate analogue voltage signals corresponding to temperature with ±4°C accuracy, offering reliable temperature measurement in a small surface mount package.
This sensor operates over a wide temperature range from -40°C to 125°C, supporting various environmental conditions. It requires a minimum supply voltage of 3.1V and a maximum of 5.5V, making it suitable for low voltage battery-powered applications.
The device comes in a compact 3-pin SOT-23 package measuring 3.05mm in length, 1.4mm in width, and 1.02mm in height, enabling space-saving PCB designs in dense electronic assemblies.
Equipped with a sensor gain of 19.5mV/°C, the MCP9701T converts temperature changes into a linear voltage output, making it ideal for analogue interfacing with microcontrollers and temperature monitoring systems.
Applications include temperature monitoring for office equipment, home appliances, entertainment devices, hard disk drives, battery packs, and any system requiring reliable relative temperature measurement. The sensor is designed to resist parasitic capacitance and can drive capacitive loads effectively, enhancing signal stability.
The sensor converts temperature changes into proportional analogue voltage output. Operates from -40°C to 125°C with ±4°C accuracy ensuring broad environmental compatibility. Requires supply voltage range from 3.1V to 5.5V accommodating DC power sources.
Compact SOT-23 3-pin surface mount package enables integration in compact electronic solutions. Sensor gain of 19.5mV/°C provides precise voltage output for temperature measurement. Resists parasitic capacitance and drives large capacitive loads for signal integrity.
Manufactured in Thailand, ensuring quality control and consistency. Suitable for industrial, commercial, and consumer electronics temperature sensing applications. Explore EnvMart for a comprehensive range of Microchip sensors and analogue Temperature Sensors designed for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -40°C to 125°C, making it suitable for various environmental conditions.
The MCP9701T provides an accuracy of ±4°C, ensuring reliable temperature measurements.
It offers a voltage output that is proportional to temperature changes, facilitating easy interfacing with other electronic components.
The sensor requires a supply voltage ranging from 3.1V to 5.5V, making it suitable for low voltage applications.
This model has a sensor gain of 19.5mV/°C, which allows for precise voltage output corresponding to temperature changes.
The MCP9701T comes in a compact SOT-23 package with dimensions of 3.05mm in length, 1.4mm in width, and 1.02mm in height.
The MCP9701T is designed for surface mounting, which is ideal for space-constrained PCB designs.
This temperature sensor is suitable for applications in temperature monitoring for office equipment, home appliances, battery packs, and entertainment devices.
It is designed to resist parasitic capacitance and can effectively drive large capacitive loads, enhancing signal stability.
The sensor utilizes an analogue interface, making it compatible with various microcontrollers and temperature monitoring systems.
This model is manufactured in Thailand, ensuring quality control and consistency in production.
The MCP9701T features a 3-pin configuration, suitable for easy integration into electronic circuits.
