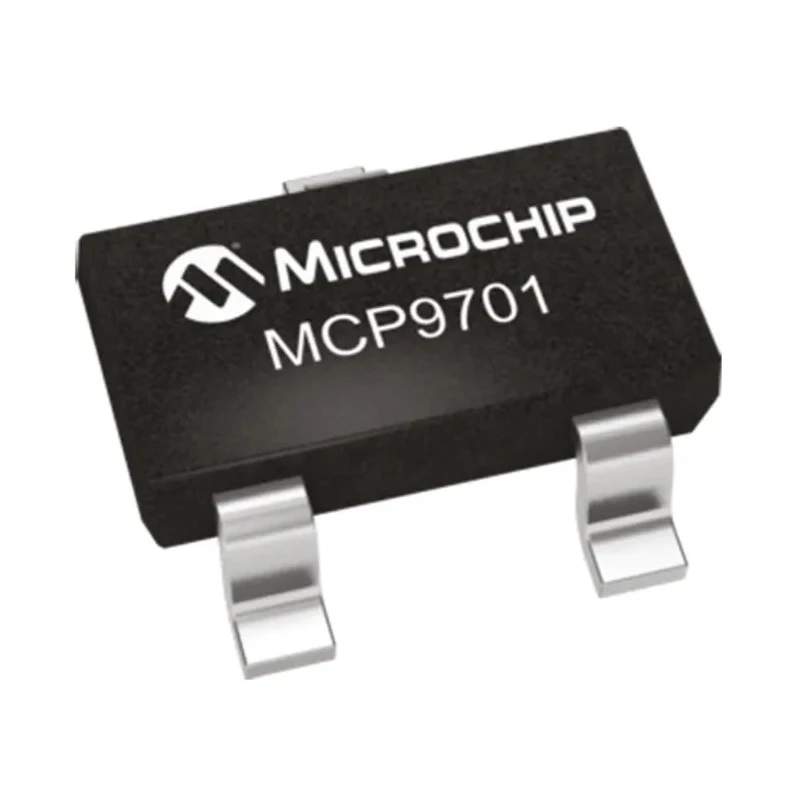

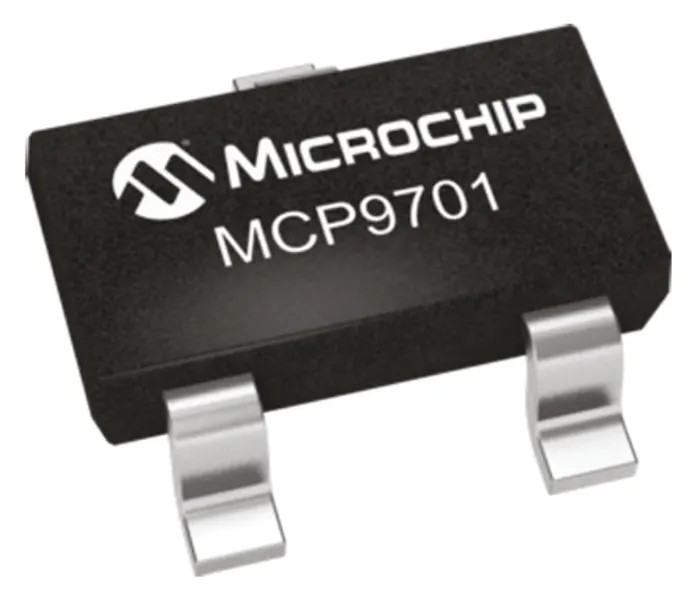

Microchip Voltage Output Voltage Temperature Sensor, Analogue, Surface Mount SOT-23, 3-Pin, ±4°C Accuracy MCP9701T
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±4°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.05mm |
| Model | MCP9701T |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9701T |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.1V |
| Sensor Gain | 19.5mV/°C |
Key Features
- Operates with supply voltage from 3.1V to 5.5V.
- Functions accurately within the temperature range of -40°C to 125°C.
- Equipped with a 3-pin SOT-23 surface mount package for compact PCB integration.
- Features a sensor gain of 19.5mV/°C for reliable voltage-to-temperature conversion.
- Resistant to parasitic capacitance and capable of driving large capacitive loads efficiently.
- Ideal for applications in temperature monitoring, office equipment, home appliances, and battery packs.
- Compact dimensions ensure a small footprint on circuit boards.
- Manufactured in Thailand ensuring quality and reliability.
Product Description
Microchip MCP9701T is a high-performance voltage output Temperature Sensor designed as an analogue sensor for a wide range of industrial and commercial applications. This surface mount device utilizes a 3-pin SOT-23 package, measuring 3.05mm in length, 1.4mm in width, and 1.02mm in height, enabling compact and efficient PCB layouts.
The sensor operates with a supply voltage range of 3.1V to 5.5V and can function accurately between -40°C and 125°C temperature extremes, making it suitable for harsh environments.
Featuring a sensor gain of 19.5mV/°C, it provides a reliable linear voltage output proportional to temperature with an accuracy of ±4°C, suitable for precision monitoring tasks. The MCP9701T series offers superior resistance to parasitic capacitance and can drive large capacitive loads, enhancing signal integrity in complex electronics.
It is commonly used in temperature monitoring of office and home appliances, entertainment systems, hard disk drives, and battery packs, where compact and stable temperature sensing is critical.
Operates over broad temperature and voltage ranges. Surface mount SOT-23 package for space-saving design. Analogue output provides straightforward integration. High immunity to parasitic capacitance. Stable sensor gain for accurate conversions.
Suitable for industrial, electronic, and consumer applications. Manufactured in Thailand, the MCP9701T sensor embodies reliability and performance, endorsed by Microchip's advanced semiconductor technology. Explore similar Microchip sensors and components for diverse electronics design projects through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates accurately within a temperature range of -40°C to 125°C.
It functions with a supply voltage ranging from 3.1V to 5.5V.
The sensor has an accuracy of ±4°C, making it suitable for precision monitoring tasks.
The MCP9701T provides a voltage output that is proportional to the temperature.
It features a sensor gain of 19.5mV/°C for reliable voltage-to-temperature conversion.
This unit measures 3.05mm in length, 1.4mm in width, and 1.02mm in height.
The MCP9701T comes in a 3-pin SOT-23 surface mount package, ideal for compact PCB integration.
Yes, it is designed to be resistant to parasitic capacitance, enhancing signal integrity.
It is commonly used in temperature monitoring for office equipment, home appliances, and battery packs.
This model has a total of 3 pins.
The sensor is manufactured in Thailand, ensuring quality and reliability.
The MCP9701T utilizes an analogue interface for straightforward integration.
