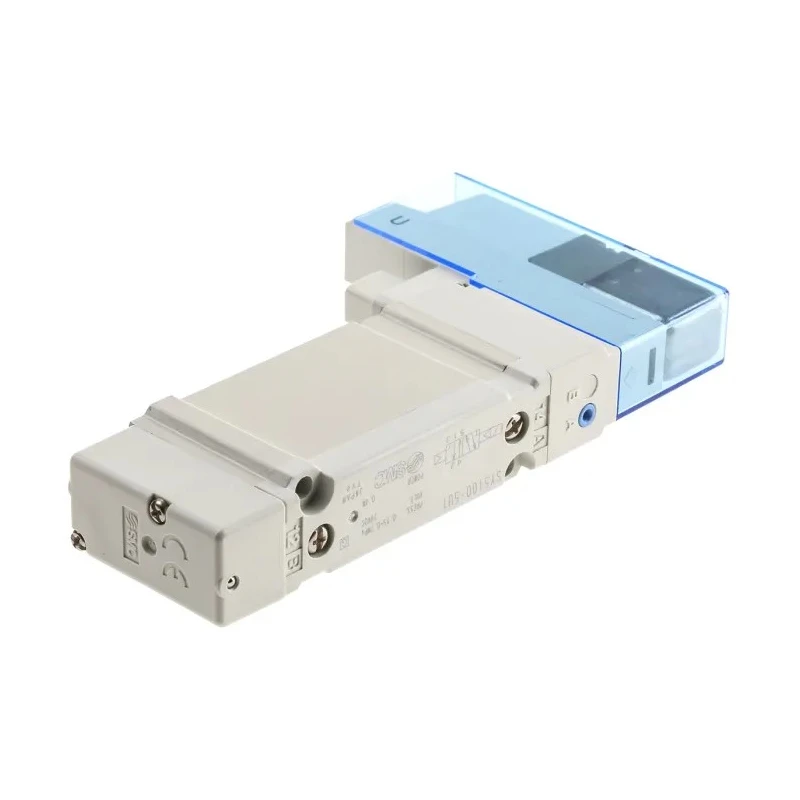

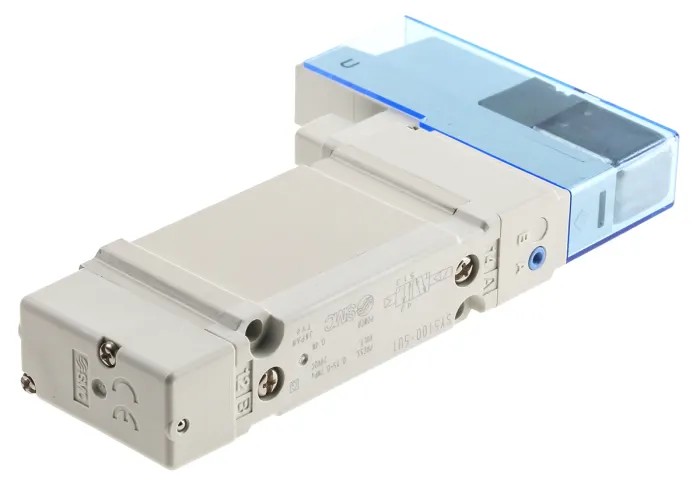

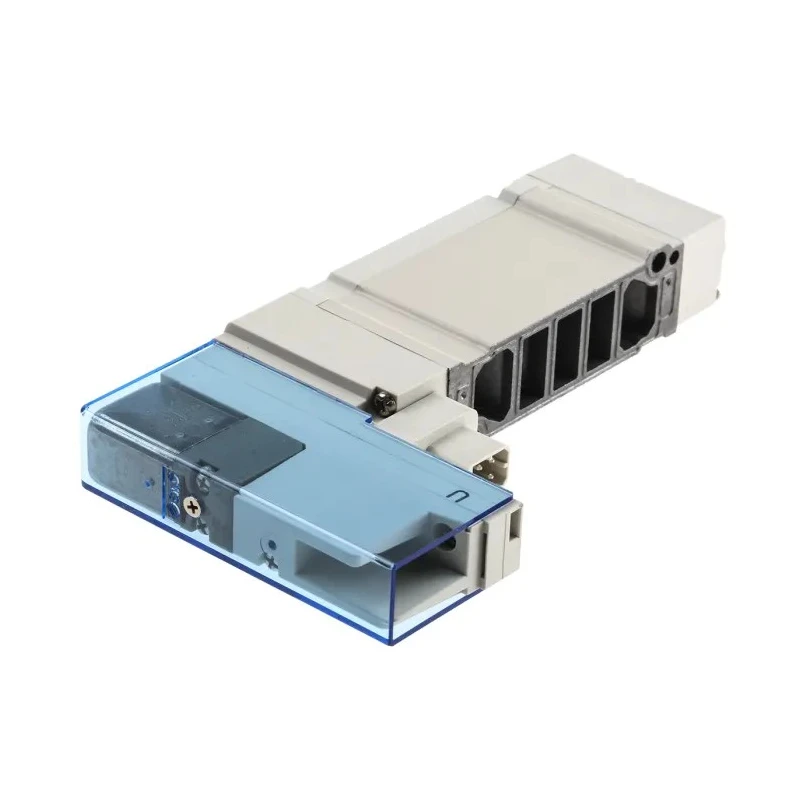

SMC Pneumatic Solenoid/Pilot-Operated Control Valve 24V DC Aluminium Body 5-Port 2-Position NC SY5100-5U1-NA

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid/Pilot-Operated Control Valve 24V DC Aluminium Body 5-Port 2-Position NC SY5100-5U1-NA



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	France
Voltage	24V dc
Brand	SMC
Body Material	Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	80mm
Length	97mm
Model	SY5100-5U1-NA
Width	40mm
Mount Type	Base
Series	SY
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Pilot
Maximum Flow Rate	746L/min
Minimum Pilot Pressure	0.1MPa
Valve Function	NC
Port Gender	Female

Key Features

Constructed with a durable aluminium die-cast body for long-lasting performance.
Features a 5-port, 2-position configuration with normally closed valve function.
Operates efficiently at pressures from 0.1 MPa to 0.7 MPa for versatile applications.
Designed for use within a temperature range of -10°C to 50°C ensuring operational stability.
Compact size with dimensions 97mm length, 80mm height and 40mm width for easy installation.
Low solenoid power consumption of just 0.4 W enhances energy efficiency.
Suitable for factory automation, machine tooling, assembly lines and pneumatic control circuits.
Includes female port gender with M5 port size for compatibility with pneumatic systems.

Product Description

SMC SY5100-5U1-NA Pneumatic Solenoid/Pilot-Operated Control Valve is engineered for effective control in industrial and mechanical pneumatic systems. Designed with a robust aluminium die-cast body, this valve ensures durability and high reliability in demanding factory automation and fluid control applications. Operating at a solenoid voltage of 24V DC, it features a 5-port, 2-position configuration with normally closed valve function.

This valve functions optimally within a pressure range of 0.1 MPa minimum pilot pressure to a maximum of 0.7 MPa and withstands ambient temperatures from -10°C to +50°C. The low power consumption of 0.4 W makes it energy efficient, suitable for continuous operation in assembly lines, machine tools, and pneumatic control circuits.

Compact dimensions of 97mm length, 80mm height, and 40mm width enable flexible installations. The base mount type and female M5 ports provide ease of integration into existing pneumatic systems. The nitrile rubber (NBR) seal material offers resistance against wear and ensures tight sealing for operational safety.

Durable aluminium die-cast body construction. 5-port, 2-position normally closed valve configuration. Operates at 24V DC solenoid voltage with low power consumption of 0.4 W. Pressure range from 0.1 MPa minimum pilot pressure to 0.7 MPa maximum operating pressure.

Operates reliably within -10°C to 50°C ambient temperature range. Compact size with precise dimensions for easy installation. Female M5 ports for standardized pneumatic connections. Nitrile rubber (NBR) seal material ensuring durability and leak-proof performance.

This pneumatic valve is widely used in industrial settings including factory automation, machine tooling, assembly lines, and pneumatic fluid management. It is ideal for applications requiring precise airflow and pressure control for effective fluid power management in mechanical and electrical sectors.

For optimal performance, maintain within specified pressure and temperature ranges and ensure proper integration with compatible pneumatic components. Explore more Pneumatic Solenoid Valves and related products at EnvMart for dependable solutions in industrial fluid control applications.
