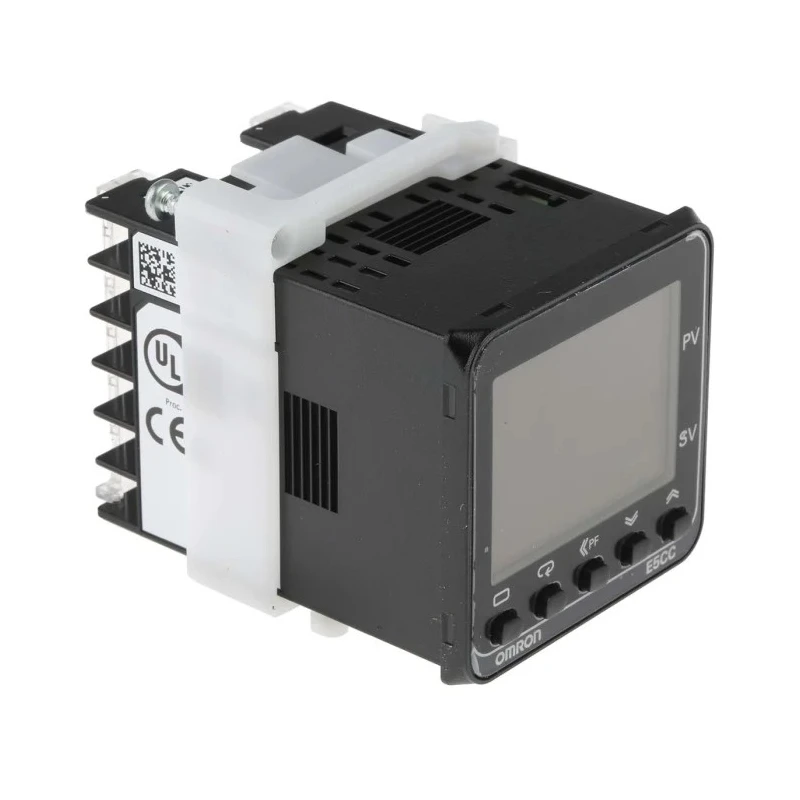

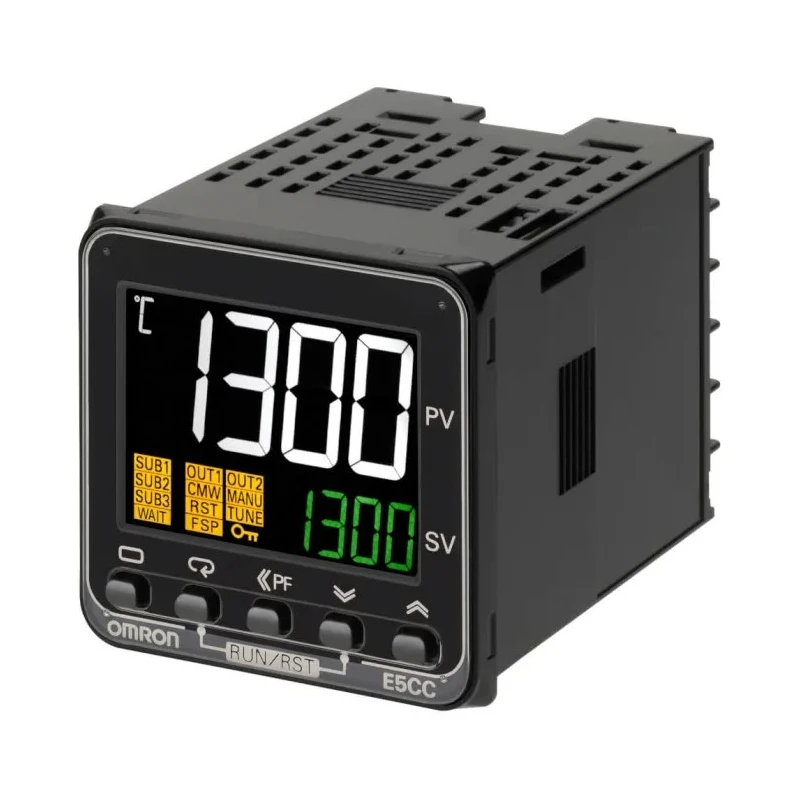

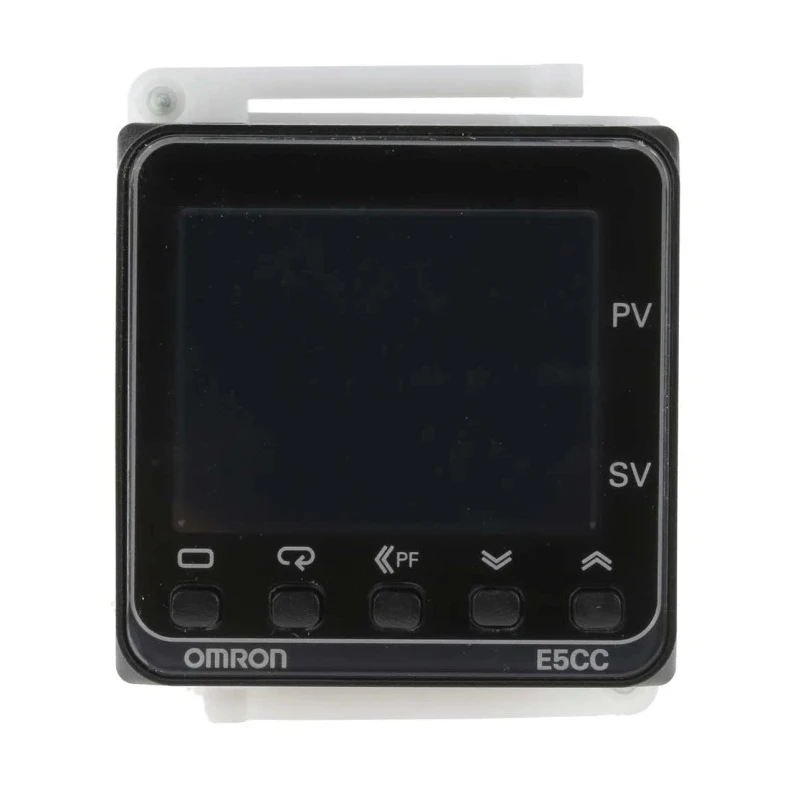

Omron Panel Mount PID Temperature Controller 2 Input 1 Output Linear 240V AC E5CC

Omron E5CC PID Temperature Controller model E5CC is designed for precise temperature management in diverse industrial and laboratory settings. This panel mount device features a compact form factor with a width of 24 mm and panel depth of 60 mm, making it suitable for space-constrained installations.

Equipped with universal inputs supporting various sensors such as thermocouples and platinum resistance thermometers, the controller enables accurate temperature monitoring over a wide range from -200°C to +2300°C. It offers 2 inputs and a single linear analogue output that delivers 4-20 mA signals for seamless integration into automation and control systems.

The controller supports both ON/OFF and advanced PID control methods, adapting to diverse application requirements. It is powered by a 100 to 240V AC supply and can handle maximum current of up to 50A AC. The device communicates digitally via RS485 protocol, facilitating networked control environments.

Designed to withstand challenging conditions, it carries an IP66 rating for protection against dust and moisture ingress. Its robust construction complies with multiple safety and electromagnetic standards including UL 61010-1, CSA C22.2 No.61010-1, EN61326-1, and carries the KC mark certification.

Typical applications include precise process control in manufacturing, HVAC systems management, detailed temperature monitoring in laboratories, and automation in food and chemical sectors. The controller’s reliable performance supports industrial automation, water treatment, and research laboratory environments.

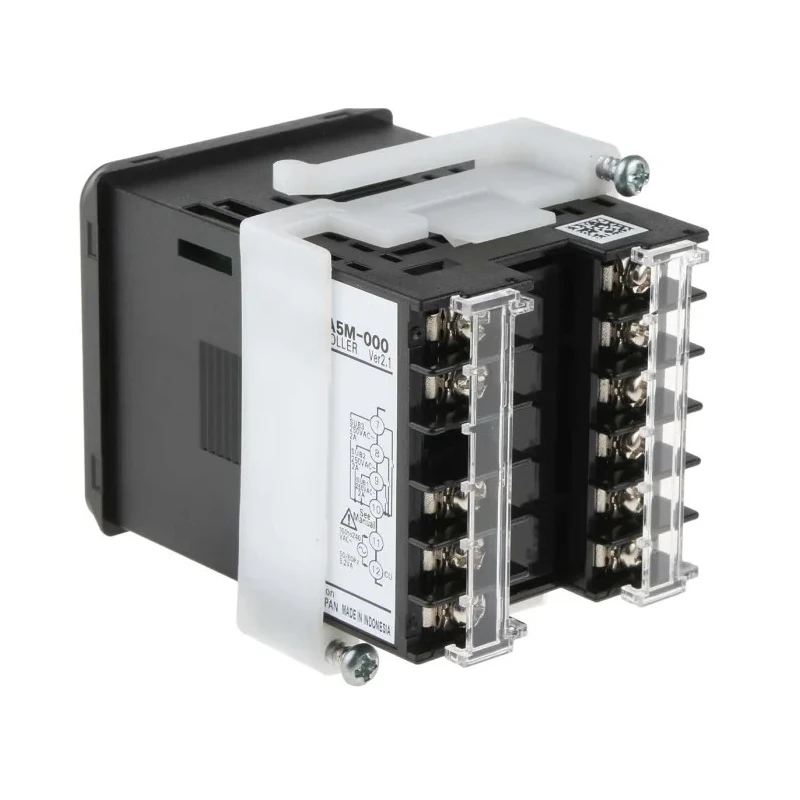

Compact panel mount design with screw terminal block for secure connections. Supports ON/OFF and PID control for versatile temperature regulation. Universal input compatible with multiple temperature sensors including thermocouples and platinum resistance thermometers.

Provides 4-20 mA linear analogue output for efficient data communication and integration. IP66 rated for protection against dust and moisture in industrial environments. Operates reliably within -10°C to +55°C ambient temperature range.

Complies with international standards including UL, CSA, EN, and KC marks. Ideal for precise temperature management in manufacturing, HVAC, laboratory, and chemical process industries.

Choose the Omron E5CC PID Temperature Controller for reliable and accurate temperature control in demanding industrial applications. Explore more Temperature Controllers and related industrial measurement instruments at EnvMart.
