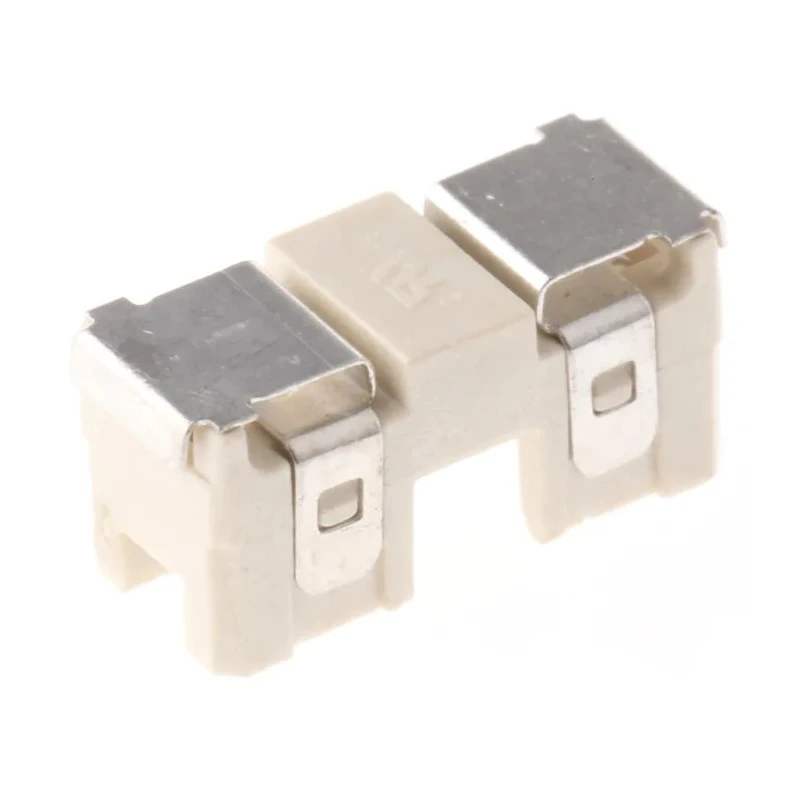

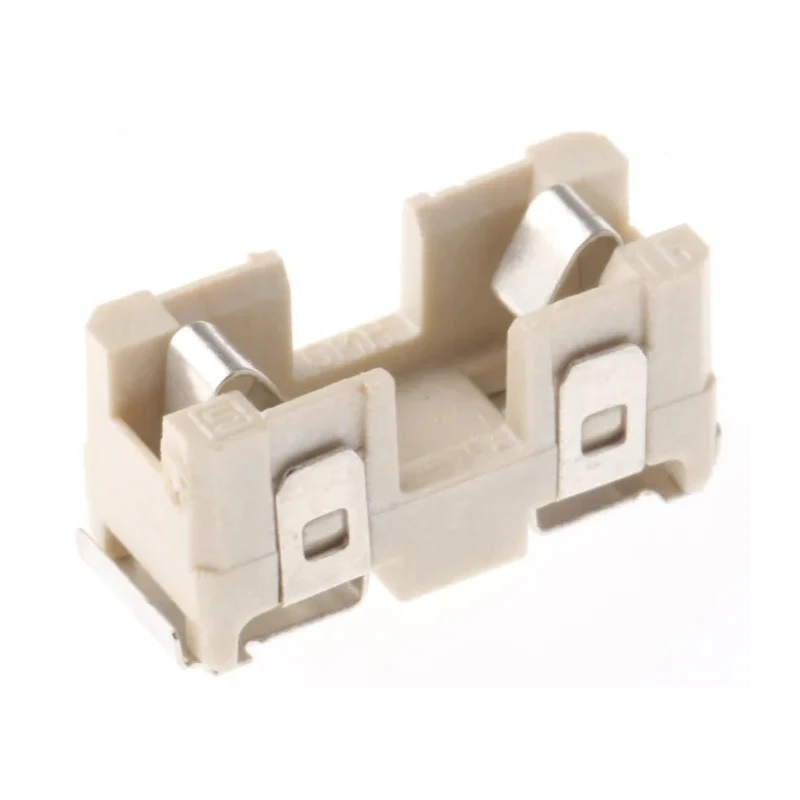

Schurter Surface Mount Fuse Block 5A 12 mm 125V AC/DC 0031.7701.11
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Schurter |
| Body Material | Thermoplastic |
| Mount Type | Surface Mount |
| Current Rating | 5A |
| Series | OMH 125 |
| Maximum Operating Temperature | 85°C |
| Dielectric strength | 3kV |
| Minimum Operating Temperature | -25°C |
| For Use With | OMF 125, OSU 125, OMF 63, OMT 125 |
| Standards/Approvals | UL 4248-1, CSA 22.2 no. 4248.1 |
| Fuse Size | 12 mm |
| Clip Material | Tin Plated Copper Alloy |
| Holder Terminal Type | Solder SMT |
Key Features
- Constructed from durable thermoplastic body material.
- Features a tin-plated copper alloy clip for reliable conduction.
- Compatible with OMx 63, 125 Fuse, OMF 125, OMT 125, and OMF 63 fuse classes.
- Designed for surface mount installation with solder SMT holder terminals.
- Operating temperature range from -25°C to 85°C ensures stable performance.
- Dielectric strength rated at 3kV for electrical safety.
- UL 4248-1 and CSA 22.2 no. 4248.1 approvals certify quality and safety compliance.
- Fast acting miniature fuse block suitable for low voltage protection.
Product Description
Schurter 0031.7701.11 Surface Mount Fuse Block is engineered for reliable electrical protection with a 5A current rating and a fuse size of 12 mm. It supports operation at 125V AC and DC, making it suitable for a wide range of low voltage applications where compact and surface mount fuse solutions are essential.
The fuse block features a robust thermoplastic body that withstands operating temperatures from -25°C up to 85°C, ensuring consistent performance in varying environmental conditions. The clip is made of tin-plated copper alloy for excellent electrical conductivity and durability in demanding industrial environments.
This fuse block is compatible with multiple fuse classes including OMx 63, 125 Fuse, OMF 125, OMT 125, and OMF 63, accompanied by solder SMT type holder terminals for secure and efficient surface mounting on PCBs.
Its dielectric strength of 3kV provides enhanced electrical insulation and safety, compliant with industry standards UL 4248-1 and CSA 22.2 no. 4248.1, thus approved for use in various industrial, automation, electrical, and electronic applications.
The fast-acting miniature fuse block design is ideal for protecting sensitive electronic components such as silicon ICs in alarm systems, audio/visual equipment, computers, portable devices, power supplies, and medical apparatus.
Durable thermoplastic body material construction. Tinned copper alloy clip ensures excellent conduction. Supports multiple fuse classes for versatile applications. Surface mount type with solder SMT holder terminal. Operating temperature from -25°C to 85°C for robust performance.
Dielectric strength up to 3kV for safety assurance. Complies with UL 4248-1 and CSA 22.2 no. 4248.1 standards. Efficient fuse block for fast acting miniature fuse protection.
This fuse block complements other Schurter components in the OMH 125 series, providing reliable fuse holder solutions for circuit protection. Ensure to order fuseholder type OHM63 (stock-no. 167-5194) separately as required for installation.
Ideal for use in industrial machines, automation equipment, electronic circuits, and other applications requiring surface mount fuse blocks to save space and optimize circuit layout.
Explore more Schurter Fuse Blocks and accessories in the Electronics & Electricals category on EnvMart to find compatible products for your protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse block has a current rating of 5A.
It operates at 125V AC and DC.
The operating temperature range is from -25°C to 85°C.
It features a thermoplastic body and a clip made of tin-plated copper alloy.
It is compatible with OMx 63, 125 Fuse, OMF 125, OMT 125, and OMF 63 fuse classes.
This model is designed for surface mount installation with solder SMT holder terminals.
It has a dielectric strength rated at 3kV.
It complies with UL 4248-1 and CSA 22.2 no. 4248.1 standards.
It accommodates a fuse size of 12 mm.
It is suitable for low voltage protection in various applications, including industrial machines and electronic circuits.
The product is manufactured in India.
Ensure to order the fuseholder type OHM63 separately for installation.
