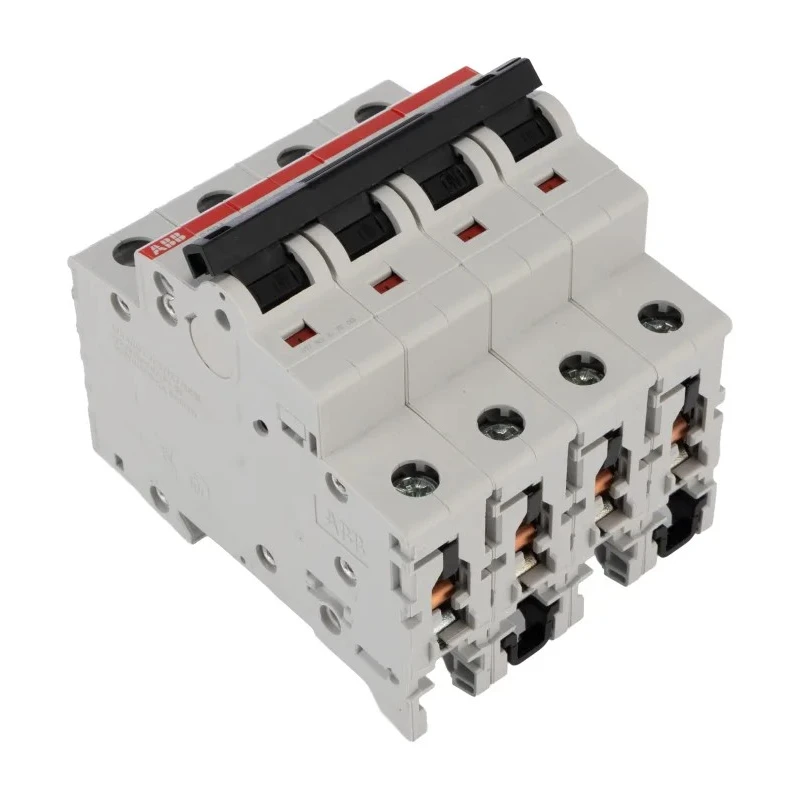

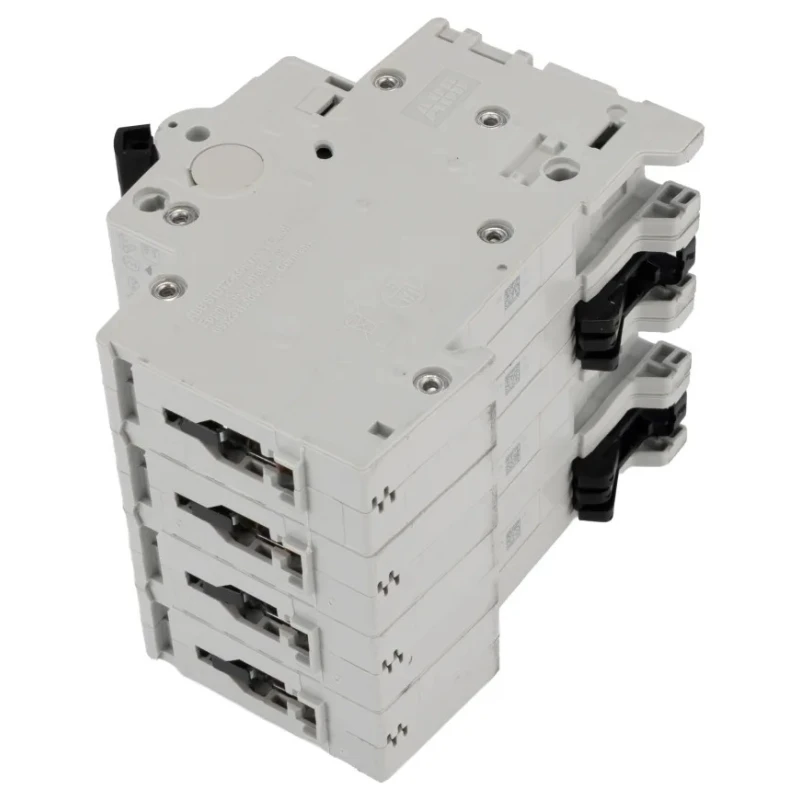

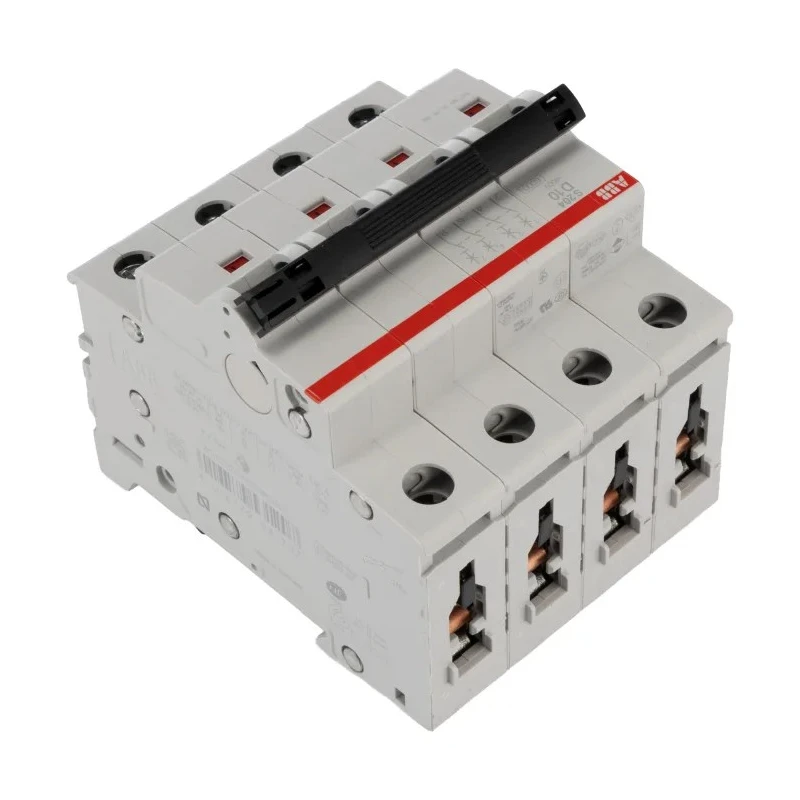

ABB System Pro M Compact S200 Miniature Circuit Breaker 4-Pole 10A Type D 400V AC 6kA Breaking 2CDS254001R0101 S204-D10
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS254001R0101 S204-D10 |
| Depth | 69mm |
| IP Rating | IP40, IP20 |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
Key Features
- Compact 4-pole design suitable for DIN rail mounting.
- Type D tripping characteristic ideal for high inrush current loads.
- Rated for 400V AC voltage applications.
- 6kA breaking capacity ensures safe interruption of fault currents.
- Thermal tripping mechanism for effective overload protection.
- Screw terminals provide secure and durable electrical connections.
- IP40 and IP20 ratings for robust protection against dust and ingress.
- Designed for easy disassembly facilitating maintenance.
Product Description
ABB 2CDS254001R0101 S204-D10 System Pro M Compact S200 Miniature Circuit Breaker is a 4-pole device engineered for industrial and commercial circuit protection. Rated for a current of 10A and an AC voltage of 400V, this circuit breaker safeguards electrical systems by interrupting overloads and short circuits efficiently.
The Type D tripping characteristic makes it highly effective for applications with high inrush current, such as motors and inductive loads. Its thermal tripping mechanism reacts promptly to excess heat caused by overloads, ensuring enhanced operational reliability and protection for connected equipment.
This model features screw-type terminals that ensure secure connections and mechanical stability. Its compact dimensions (70 mm width, 69 mm depth, and 88 mm height) allow easy installation on standard DIN rails, optimizing panel space.
The S200 series breaker meets IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring compliance with international electrical safety norms. It has an IP40 and IP20 enclosure rating, protecting against solid particles and confirming robustness for demanding industrial environments.
Designed with the 'Better World' initiative in mind, it supports easy disassembly for straightforward maintenance and recycling. The 6kA breaking capacity provides dependable interruption of fault currents, enhancing system safety and reliability.
Compact 4-pole design for diverse electrical circuits. Thermal tripping mechanism for effective overload protection. Type D tripping suitable for high inrush inductive loads. Robust 6 kA breaking capacity for secure fault clearing.
Compliance with IEC standards for industrial use. Easy disassembly design enables maintenance and recycling. Screw terminals for durable and lasting connections. IP40, IP20 ratings protect against environmental ingress. DIN rail mounting support for flexible setup.
Ideal for commercial, industrial, and automation applications.
This Miniature Circuit Breaker is best suited for installation in commercial electrical distribution systems, industrial equipment protection, and automation controls requiring high-performance circuit protection. Experience peace of mind with ABB's quality engineering and the System Pro M Compact series reliability.
Explore a broad range of circuit breakers and electrical protection devices at EnvMart for all your industrial electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6kA, ensuring safe interruption of fault currents.
This circuit breaker has a width of 70mm, a depth of 69mm, and a height of 88mm.
It is rated for an AC voltage of 400V.
This model features a Type D tripping characteristic, which is suitable for high inrush current loads.
It is designed for DIN rail mounting, allowing for easy installation in electrical panels.
This model uses screw-type terminals for secure and durable electrical connections.
The current rating of this circuit breaker is 10A.
It has IP40 and IP20 ratings, providing protection against dust and environmental ingress.
It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for electrical safety.
The thermal tripping mechanism reacts to excess heat caused by overloads, providing effective overload protection.
Yes, it is designed for easy disassembly, facilitating maintenance and recycling.
It is ideal for commercial electrical distribution systems, industrial equipment protection, and automation controls.
