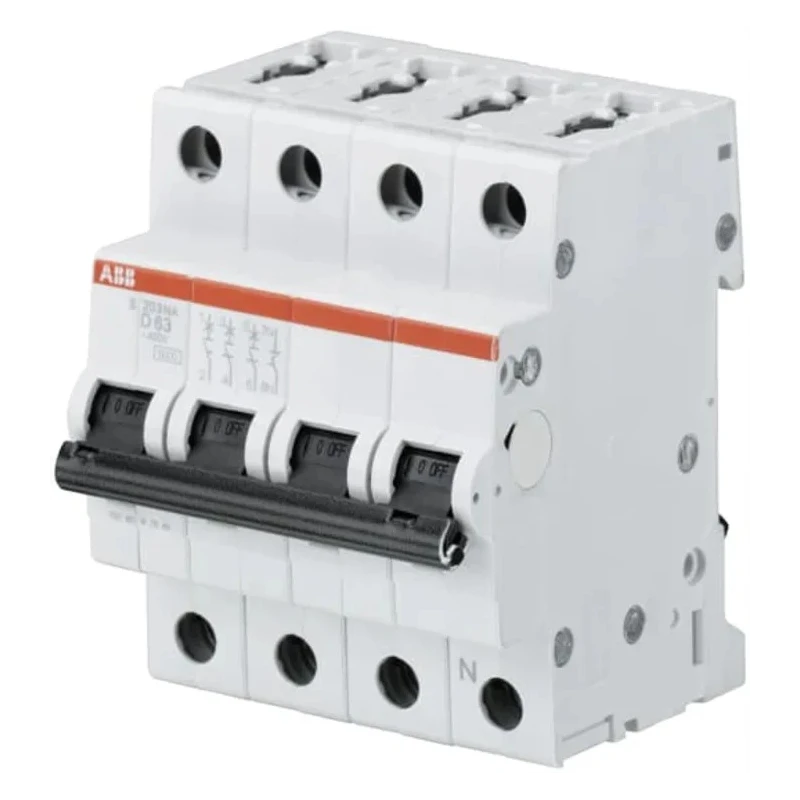

ABB System Pro M Compact S200 Miniature Circuit Breaker 3+N-Pole 3A Type D 400V ac 12V dc 6kA Breaking 2CDS253103R0031

ABB 2CDS253103R0031 System Pro M Compact S200 Miniature Circuit Breaker is a high-quality electrical protection device engineered for reliable performance in residential, commercial, and industrial electrical systems.

This 3+N pole, 3 ampere breaker incorporates Type D tripping characteristics, making it apt for circuits with high inrush current such as motors or transformers. It operates efficiently at a rated AC voltage of 400 V and DC voltage of 12 V, providing versatile application use.

The product includes two tripping mechanisms: a delayed thermal to safeguard against overload, and an electromechanical for instantaneous short circuit protection. It mounts conveniently on DIN rails with screw-type terminals ensuring a secure and stable wiring connection. With a breaking capacity of 6 kA, this breaker can safely interrupt high fault currents protecting downstream equipment and wiring.

The compact design (88 mm height, 70 mm width, and 69 mm depth) aids in optimal use of panel space while maintaining ease of installation. The IP20 rating is ideal for preventing contact with hazardous parts and ingress of solid particles, suited for indoor environments.

Manufactured in Germany, this MCB complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards, reflecting its quality and safety assurance. The device features sustainable design elements, such as being designed for disassembly, supporting environmental responsibility.

The breaker has a 3+N pole configuration for multi-phase circuit protection. 3A current rating matches a wide range of circuit needs. Type D characteristic provides delayed tripping for applications with high inrush currents.

Rated for 400 V AC and 12 V DC operations. 6 kA breaking capacity enhances safety during fault interruption. DIN rail mounting and screw terminal type ease installation and maintenance. Compact dimensions enable efficient panel arrangements.

IP20 protection class ensures safety from solid objects and hazardous parts. Incorporates advanced tripping mechanisms for reliable protection. Made in Germany with adherence to international safety standards. Designed for sustainability with features aiding disassembly and recycling.

This Miniature Circuit Breaker is ideally suited for use in industrial controls, commercial electrical panels, HVAC systems, manufacturing plants, and other electrical installations requiring robust short circuit and overload protection.
