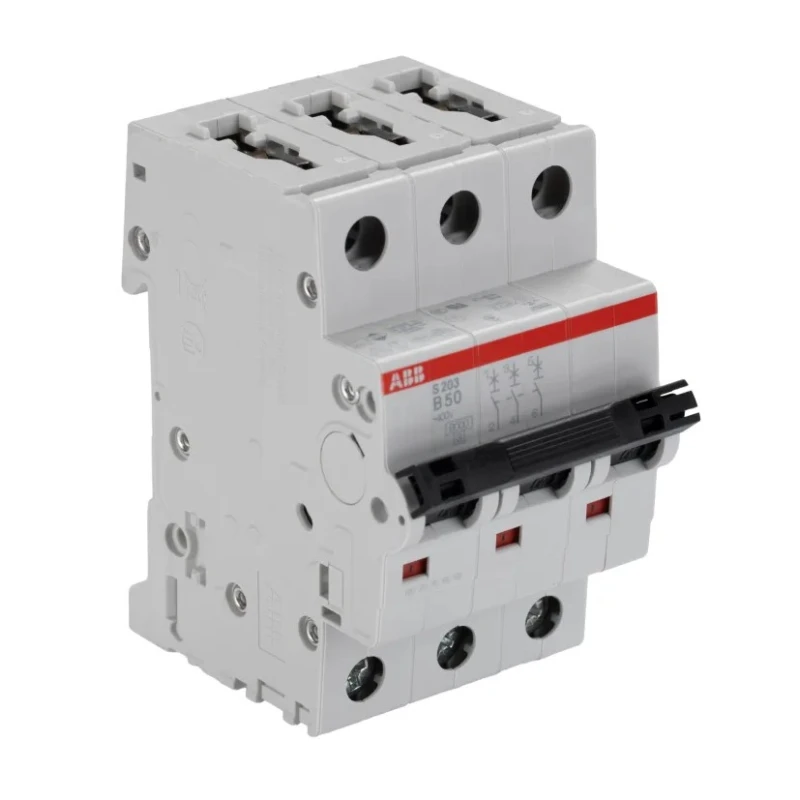

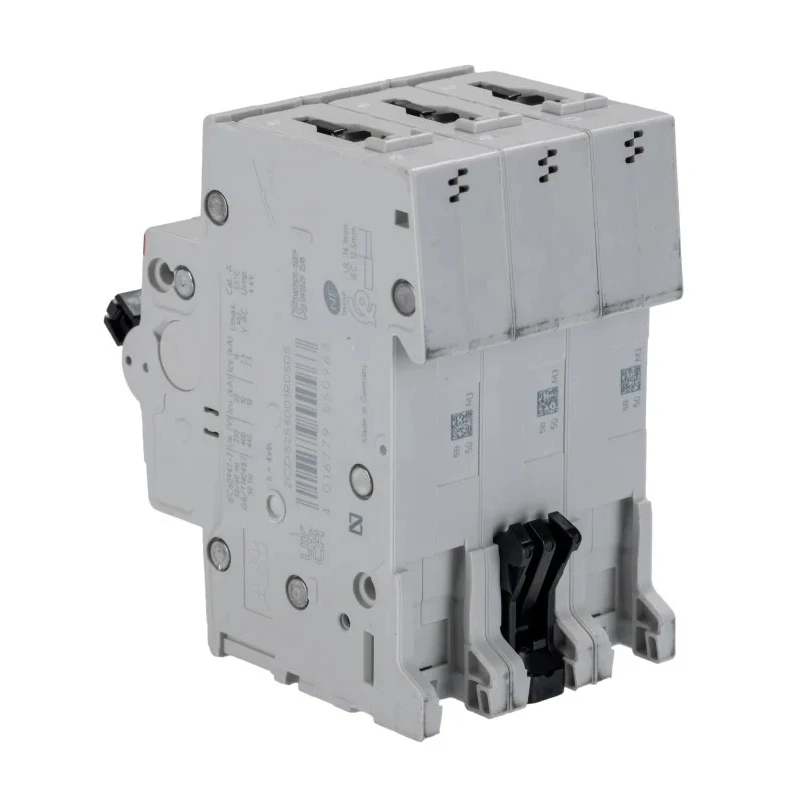

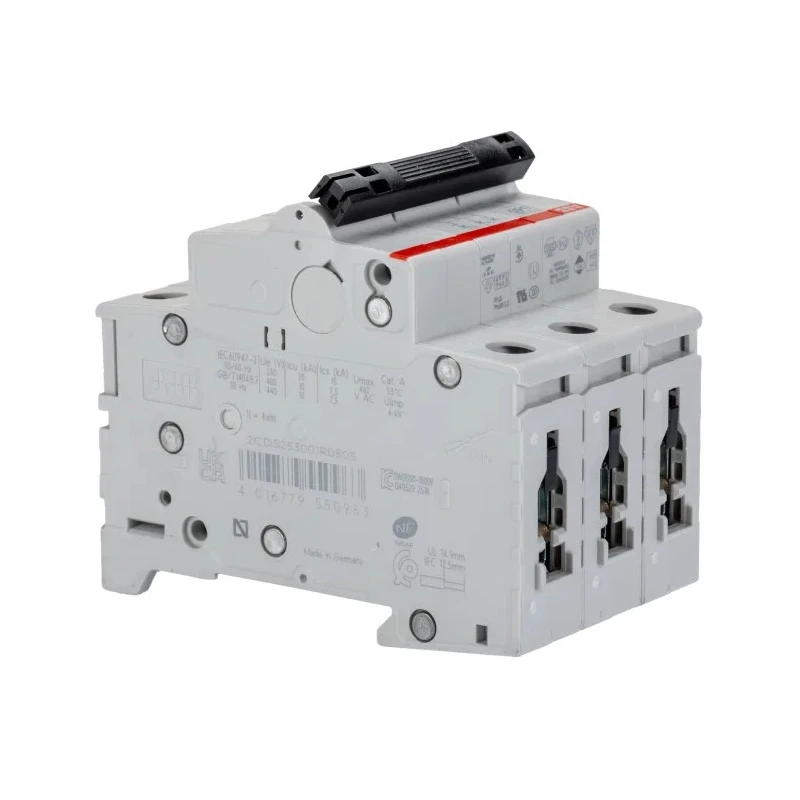

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 50A Type B 400V AC 10kA Breaking 2CDS253001R0505 S203-B50
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 69mm |
| Model | 2CDS253001R0505 S203-B50 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 50A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type B |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Lever |
Key Features
- Designed for balanced load distribution in three-phase systems.
- Offers a high breaking capacity of 10kA ensuring safety during faults.
- Equipped with a lever-operated reset actuator for ease of use.
- Mounts securely on DIN rails for convenient installation.
- Features screw terminals for solid electrical connections.
- Certified to IEC/EN 60898-1 and IEC/EN 60947-2 standards for quality assurance.
- IP20 and IP40 rated for protection in various industrial environments.
- Employs electromagnetic and thermomagnetic tripping mechanism for precise fault response.
Product Description
ABB 2CDS253001R0505 S203-B50 System Pro M Compact S200 Miniature Circuit Breaker is a 3-pole device rated at 50A and designed for use in 400V AC electrical systems. It offers a high breaking capacity of 10kA, ensuring robust protection against short circuits and overloads. The circuit breaker is suitable for commercial, industrial, automation, and control panel applications where reliable, compact electrical protection is required.
This MCB features a Type B tripping characteristic which enables dependable disconnection for standard loads. The lever-operated reset actuator design simplifies device resetting after a trip event. It mounts easily on a DIN rail, speeding up installation and panel assembly.
Constructed with screw terminals, the breaker ensures secure and stable electrical connections. The device complies with international IEC/EN 60898-1 and IEC/EN 60947-2 standards, attesting to its high quality and safety. It carries an IP20 and IP40 rating, affording protection from dust and accidental contact in varying industrial and commercial environments.
The internal tripping mechanism combines electromagnetic and thermomagnetic elements, facilitating rapid and accurate fault detection under varying electrical conditions. ABB emphasizes sustainability with a design focused on easy disassembly, aiding efficient recycling and environmental care.
Typical applications include electrical safety in commercial buildings, industrial machinery protection, automation systems, and electrical distribution boards. Regular maintenance involving visual inspections and functional testing of the reset actuator is recommended to ensure optimal operation over the device lifespan.
Designed for balanced three-phase load safety and reliable electrical protection. High breaking capacity supports industrial fault currents up to 10kA. Lever reset actuator provides intuitive control and ease of operation.
DIN rail mounting allows quick and secure installation within panels. Screw terminals ensure durable and efficient electrical connections. Compliant with IEC/EN safety and quality standards for circuit breakers. Electromagnetic and thermomagnetic trip mechanisms for precise fault response.
IP20 and IP40 protection ratings suited for diverse environmental conditions. Explore more products in the Miniature Circuit Breaker category at EnvMart to find solutions that match your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a high breaking capacity of 10kA, providing robust protection against short circuits and overloads.
This model has a current rating of 50A, suitable for various electrical applications.
The dimensions are 69mm in height, 69mm in depth, and 52.5mm in width.
It mounts securely on DIN rails, facilitating quick and convenient installation.
It features screw terminals, ensuring secure and stable electrical connections.
It carries IP20 and IP40 ratings, providing protection from dust and accidental contact in various environments.
It has Type B tripping characteristics, which are designed for standard loads.
It is certified to IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring quality and safety.
The rated AC voltage for this circuit breaker is 400V.
It employs both electromagnetic and thermomagnetic tripping mechanisms for precise fault response.
It is suitable for commercial, industrial, automation, and control panel applications, providing reliable electrical protection.
This miniature circuit breaker is manufactured in Germany.
