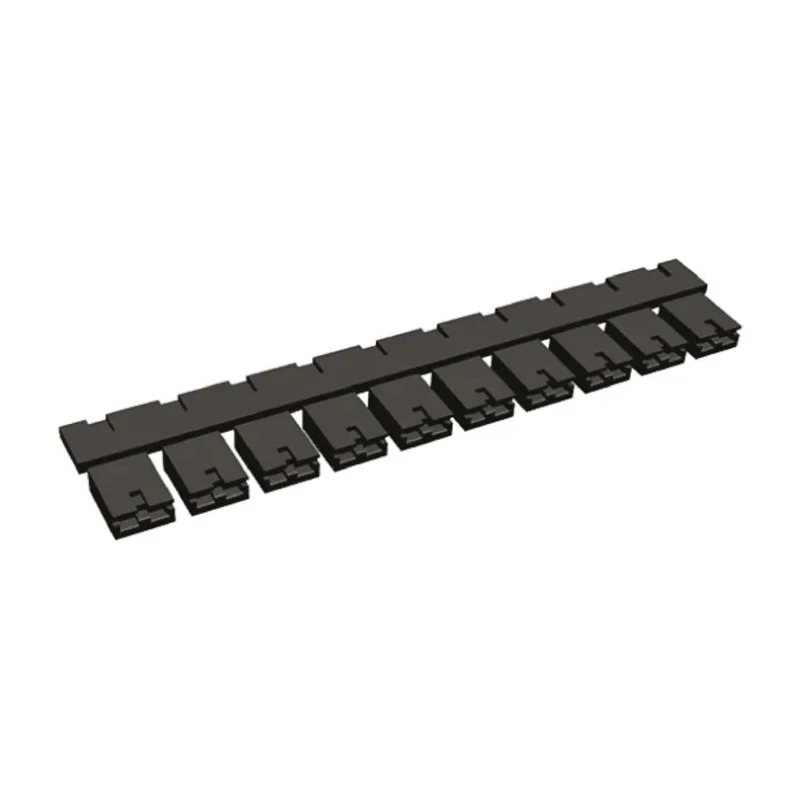

TE Connectivity AMPMODU Shunt Straight Female Black Open Top 2 Way 1 Row 2.54 mm Pitch 382811-6

TE Connectivity 382811-6 AMPMODU Shunt Straight Female Black Open Top 2 Way 1 Row 2.54 mm Pitch is an industrial-grade PCB connector designed to provide reliable electrical connections with a compact and low profile form factor.

This shunt features a straight female contact configuration with an open top design, allowing easy insertion and removal. It supports a current rating of 3A and is designed for 250V voltage applications, making it suitable for a broad array of electronic devices and industrial equipment.

The housing is constructed from black glass-filled polyester material, rated UL 94V-0 for flame retardance and durability, ensuring safe operation in industrial and electronics environments. The contacts are crafted from phosphor bronze and plated with gold over nickel, enhancing conductivity and providing corrosion resistance.

With exact dimensions of 63.45 mm length, 6.35 mm width, and 2.54 mm depth and a pitch of 2.54 mm, this shunt complies with industry-standard spacing for PCB connectors, facilitating compatibility and easy integration in designs. The maximum contact resistance is 15 milliohms, assuring efficient signal transmission.

This component is part of the AMPMODU series, known for providing economical and stackable low profile shunts, primarily used in PCB to wire or board to board connections in industrial automation, electrical testing, manufacturing equipment, and more.

This shunt features an open top design and a straight female connector. Made from UL 94V-0 rated black glass filled polyester housing. Phosphor bronze contacts plated with gold over nickel optimize conductivity and corrosion resistance.

2 Way, single row configuration with 2.54 mm pitch for standard PCB applications. Supports up to 3A current and 250V voltage. Compact dimensions fitting industry-standard layouts. Maximum contact resistance of 15 milliohms supports reliable signal integrity.

This product is ideal for applications in electronics manufacturing, PCB assembly, industrial automation systems, and other electrical connector applications where reliable, compact jumpers and shunts are essential.
