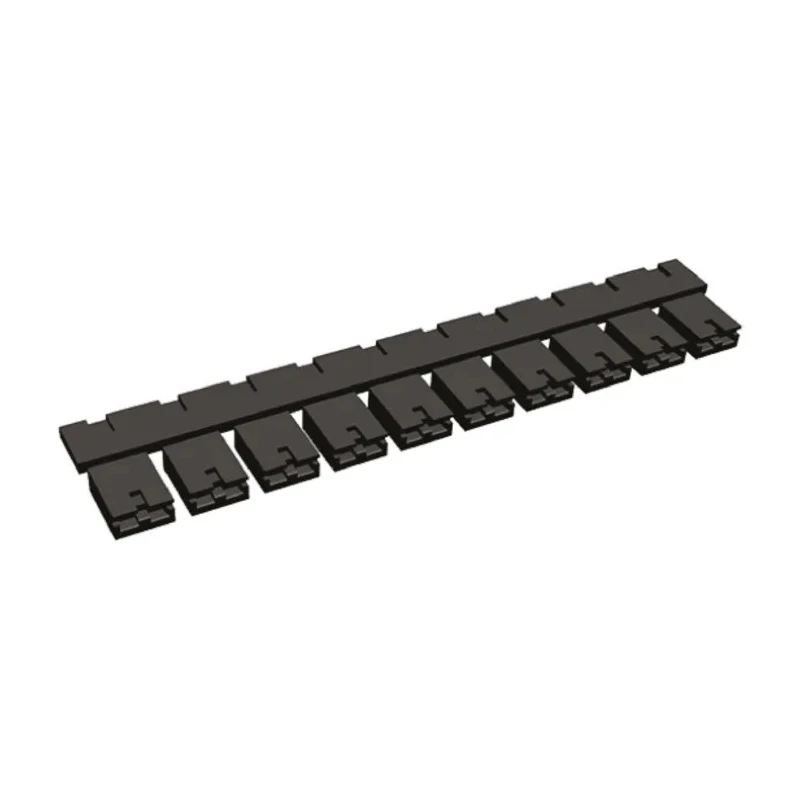

TE Connectivity AMPMODU Shunt Straight Female Black Open Top 2 Way 1 Row 2.54 mm Pitch 382811-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 63.45mm |
| Model | 382811-6 |
| Depth | 2.54mm |
| Width | 6.35mm |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Open top design with black glass filled polyester housing ensures durability.
- 2 positions with 2.54 mm pitch for standardized connectivity.
- Phosphor bronze contacts plated with gold over nickel provide reliable electrical contact.
- Rated for 3A current and 250V voltage suitable for power and signal circuits.
- Compact size with 63.45mm length and low profile to fit limited space applications.
- Straight female orientation supports easy PCB wire connections.
- Stackable design enhances modularity in electronic assemblies.
- Maximum contact resistance of 15mΩ ensures low power loss.
Product Description
TE Connectivity 382811-6 AMPMODU Shunt Straight Female connector is a low profile, economy-grade jumper designed for reliable PCB connectivity in industrial and electronic applications. Featuring a 2 position, 2.54 mm pitch spacing and an open top configuration, these shunts provide ease of use in board-to-board and wire-to-board connections.
The connector housing is constructed from UL 94V-0 rated black glass filled polyester, offering excellent mechanical strength and flame retardancy. Contacts are made of phosphor bronze with gold over nickel plating to ensure exceptional conductivity and corrosion resistance. The female straight orientation facilitates simple wire termination to PCB headers.
Operating at currents up to 3 amperes and voltages up to 250 volts, the connector suits a variety of low power electronic assemblies. Its compact dimensions - 63.45 mm length, 6.35 mm width, and 2.54 mm depth - allow installation in space-constrained applications. The maximum contact resistance is limited to 15mΩ ensuring efficient electrical performance.
This product offers stackability, enabling modular and expandable circuit designs with ease. Its industrial-grade materials and design make it suitable for manufacturing, electronics prototyping, power supply connectors, and other commercial electronics environments.
Open top design with durable black glass filled polyester housing. 2.54 mm pitch and 2 position layout for standard PCB compatibility. Phosphor bronze gold-plated contacts for high conductivity and corrosion resistance. Rated for 3A current and 250V voltage to support power and signal circuits.
Compact and low profile with stackable modular design. Straight female orientation for easy PCB wire connection. Maximum contact resistance of 15mΩ to minimize power loss. UL 94V-0 flame retardant standard compliance for housing material.
Suitable for industrial, commercial, and electronics manufacturing use cases.
Explore EnvMart's vast range of connectors and jumpers to complement your assemblies. The reliability and quality of TE Connectivity products ensure consistent performance in demanding environments.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A and a voltage of 250V, making it suitable for power and signal circuits.
The housing is made from black glass filled polyester, while the contacts are made of phosphor bronze with gold over nickel plating for enhanced conductivity and corrosion resistance.
This unit has a length of 63.45mm, a width of 6.35mm, and a depth of 2.54mm, allowing it to fit in space-constrained applications.
The connector features 2 positions with a 2.54 mm pitch, which is standardized for PCB connectivity.
The maximum contact resistance is limited to 15mΩ, ensuring low power loss during operation.
Yes, this model features a stackable design, enhancing modularity in electronic assemblies.
It has a straight female orientation, which facilitates easy PCB wire connections.
The housing material is UL 94V-0 rated, which indicates it has good mechanical strength and flame retardancy.
It is suitable for industrial, commercial, and electronics manufacturing applications, particularly for low power electronic assemblies.
This connector supports board-to-board and wire-to-board connections due to its open top configuration and standardized pitch.
This connector belongs to the AMPMODU series, which is known for its reliable PCB connectivity solutions.
The connector is black in colour, which is standard for many electronic components.
