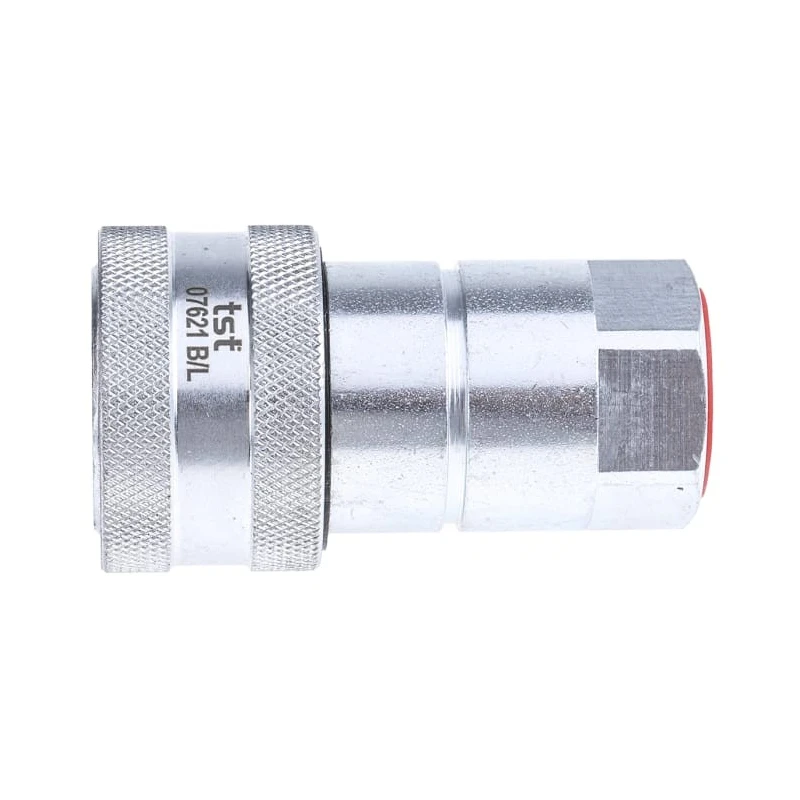

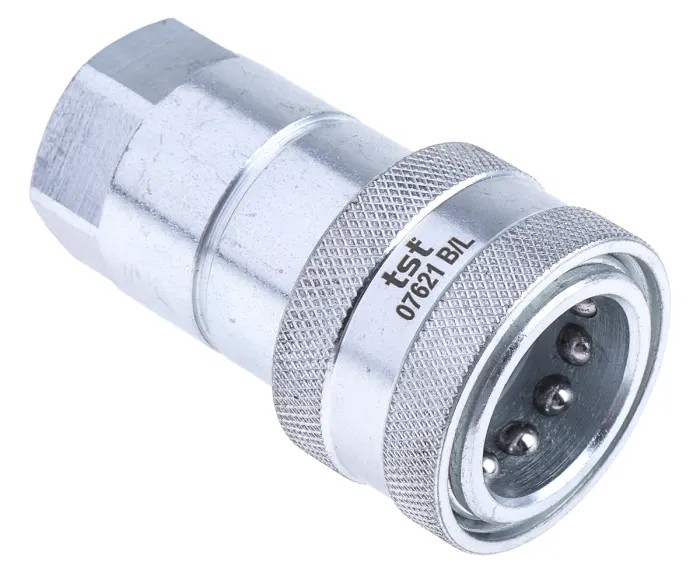

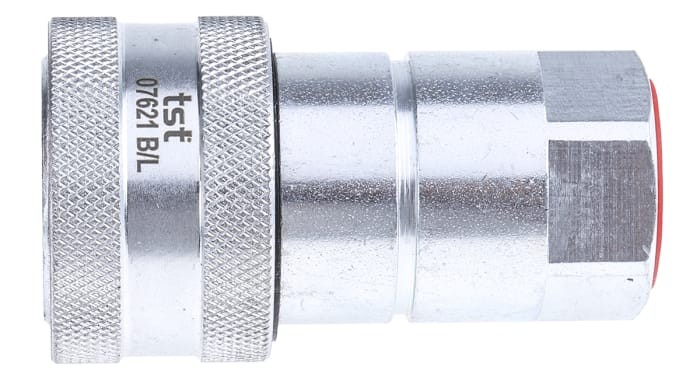

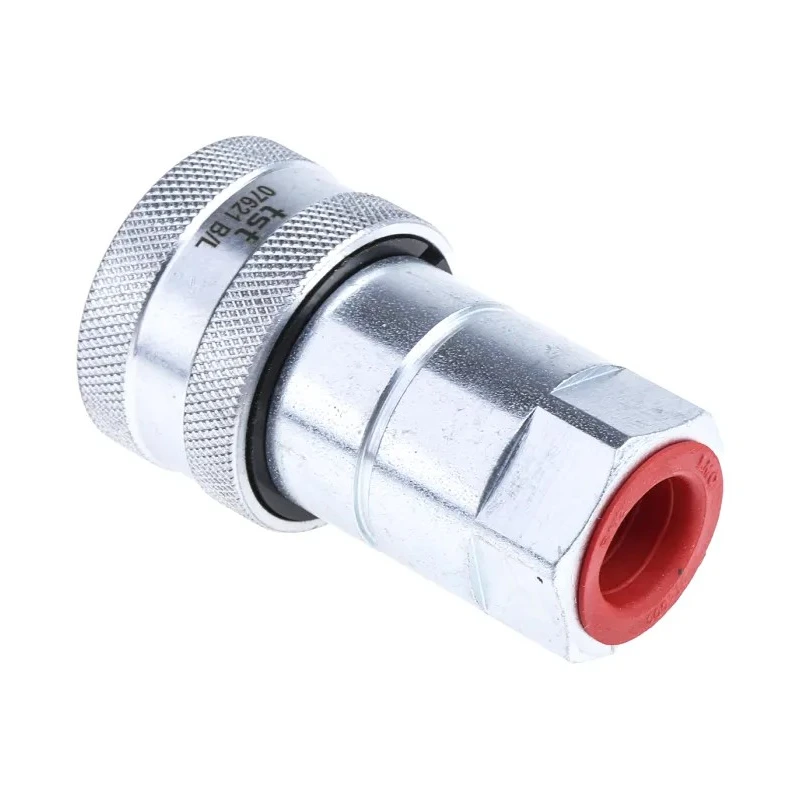

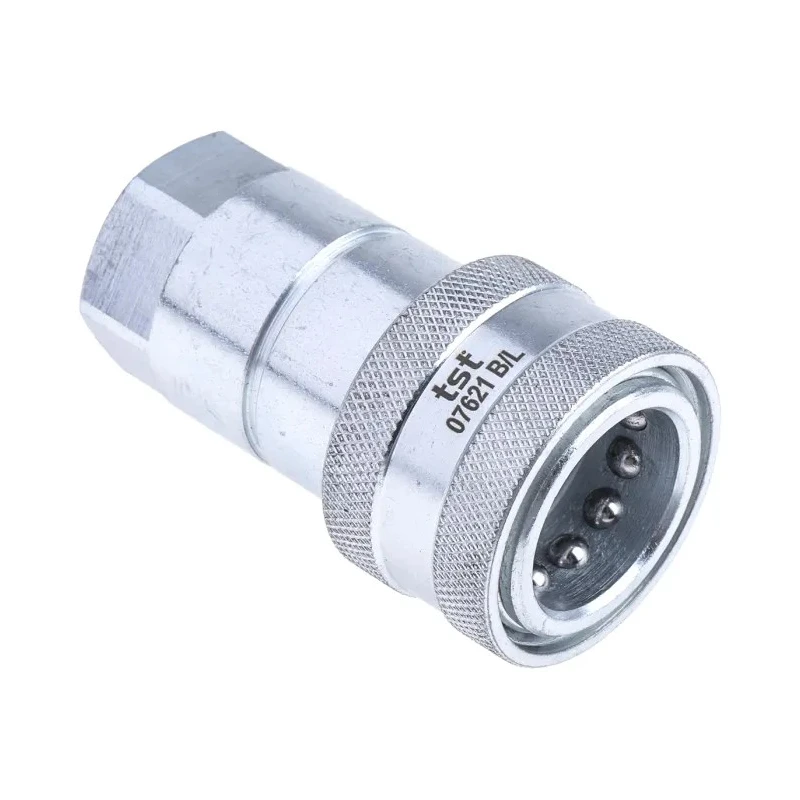

RS PRO Steel Hydraulic Quick Connect Coupling Female BSP 1/2 in, 250 bar 745-4693
Specifications
| Country of Origin | Turkey |
|---|---|
| Brand | RS PRO |
| Material | Steel |
| Maximum Operating Pressure | 250 bar |
| Model | 745-4693 |
| Finish | Passivated Zinc Plated |
| Maximum Operating Temperature | 125°C |
| Thread Size | 1/2 in |
| Sub Type | Union |
| Seal Material | Nitrile Rubber |
| Minimum Operating Temperature | -25°C |
| Lock Type | Ball Lock |
| Standards/Approvals | ANSI/ESD S20.20:2014 |
| Thread Standard | BSP |
| Thread Gender | Female |
| Standards/Approvals ANSI/ESD S20.20 | 2014 |
| Faster Carbon Steel Female Hydraulic Quick Connect Coupling, BSP 1/2 FemaleBrand | Faster |
| RS PRO Brass Hydraulic Quick Connect Coupling Female BSP 1/2 in, 160 barBrand | RS PRO |
Key Features
- Constructed from steel with passivated zinc plating for corrosion resistance.
- Features a female BSP 1/2 inch thread compatible with multiple male couplers.
- Ball lock mechanism ensures tight, reliable locking under hydraulic pressure.
- Nitrile rubber O-ring seal backed by secondary PTFE seal for leak prevention.
- Operates safely between -25°C and +125°C temperatures.
- Designed for maximum operating pressure of 250 bar.
- Compact size with 38 mm diameter and 66 mm length.
- Meets ISO 7241-A Series A quick-connect coupling standard.
Product Description
RS PRO 745-4693 Steel Hydraulic Quick Connect Coupling Female BSP 1/2 in, 250 bar is engineered to enable fast and reliable hydraulic connections with minimal fluid leakage. Constructed from robust steel with a passivated zinc plating finish, this coupling offers excellent corrosion resistance, extending service life in demanding industrial and agricultural environments.
The coupling features a female BSP 1/2 inch threaded connection compatible with widely used male couplers such as Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, and Stucchi BIR Series, ensuring versatile application possibilities.
Its ball lock design permits quick and secure locking of the coupling, while a primary nitrile rubber O-ring and a secondary PTFE seal provide an effective, leak-proof connection even at low hydraulic pressures. The built-in shut-off valve maximizes sealing efficiency, preventing fluid loss during disconnection.
Operating safely within a temperature range of -25°C to 125°C and handling a maximum hydraulic pressure of 250 bar, this coupling meets the ISO 7241-A Series A quick-connect standard and conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, demonstrating compliance with rigorous quality and safety requirements.
With a compact 38 mm diameter, 66 mm length, and 27 mm spanner size, this coupling is easy to install and maintain. It's ideal for various industrial uses, including hydraulic jacks, agricultural machinery like tractors, and oil well slurry pumping operations.
Constructed from steel with passivated zinc plating for corrosion resistance. Female BSP 1/2 inch thread compatible with multiple male couplers. Ball locking style for secure hydraulic connection. Nitrile rubber O-ring and secondary PTFE seal prevent leakage.
Operating temperature range from -25°C to +125°C. Maximum operating pressure of 250 bar. Meets ISO 7241-A Series A quick-connect coupling standard. Conforms to ANSI/ESD S20.20 and BS EN 61340-5-1 electrostatic standards.
Suitable for industrial and agricultural hydraulic applications. Explore more high-quality hydraulic couplings and fluid power tools available in the EnvMart Industrial Tools & Equipment catalog for efficient, reliable fluid system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this coupling is 250 bar.
It operates safely between -25°C and +125°C.
This model features a female BSP 1/2 inch thread.
It is constructed from steel with a passivated zinc plating for corrosion resistance.
It utilizes a ball lock mechanism to ensure a tight and reliable locking under hydraulic pressure.
It is compatible with male couplers such as Faster ANV Series, Hansen HA 15000, Intertraco A Series, Safeway S565, and Stucchi BIR Series.
It features a nitrile rubber O-ring seal backed by a secondary PTFE seal for effective leak prevention.
The coupling has a compact size with a diameter of 38 mm and a length of 66 mm.
It meets the ISO 7241-A Series A quick-connect coupling standard and conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
This model is suitable for various industrial uses, including hydraulic jacks and agricultural machinery like tractors.
Yes, it includes a built-in shut-off valve that maximizes sealing efficiency to prevent fluid loss during disconnection.
The spanner size required for this coupling is 27 mm.
