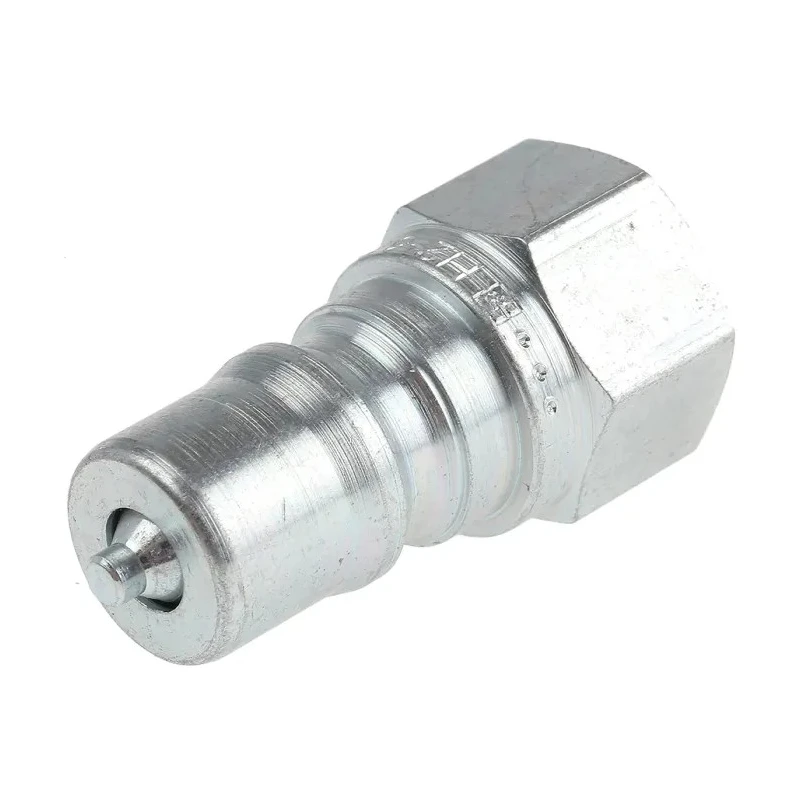

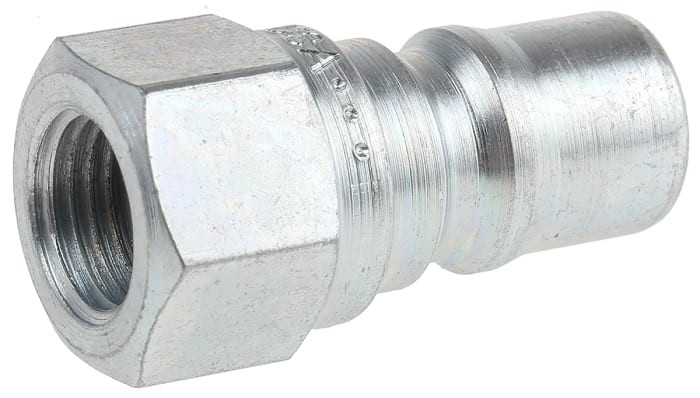

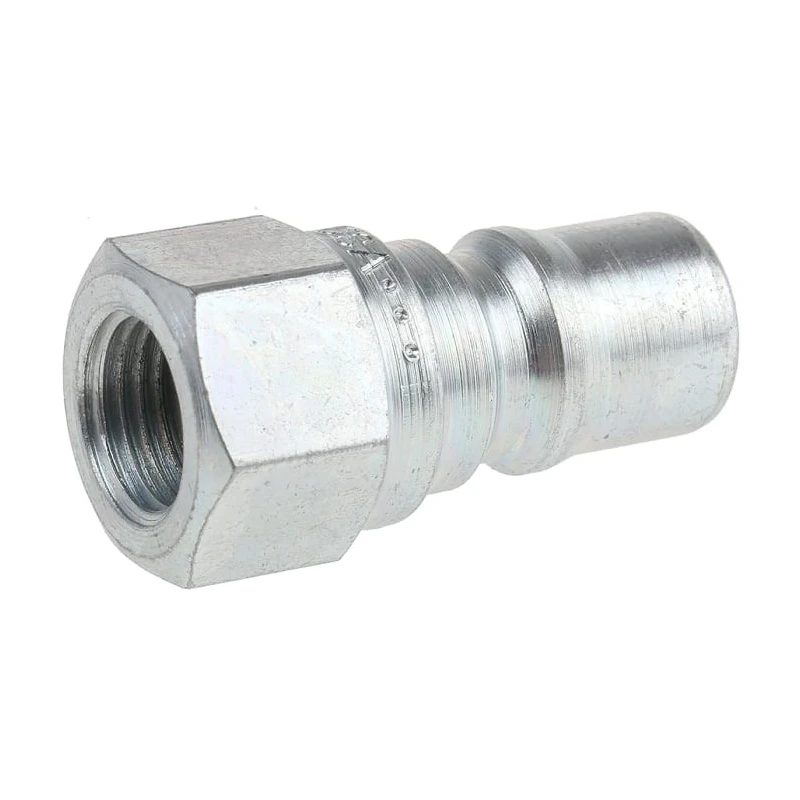

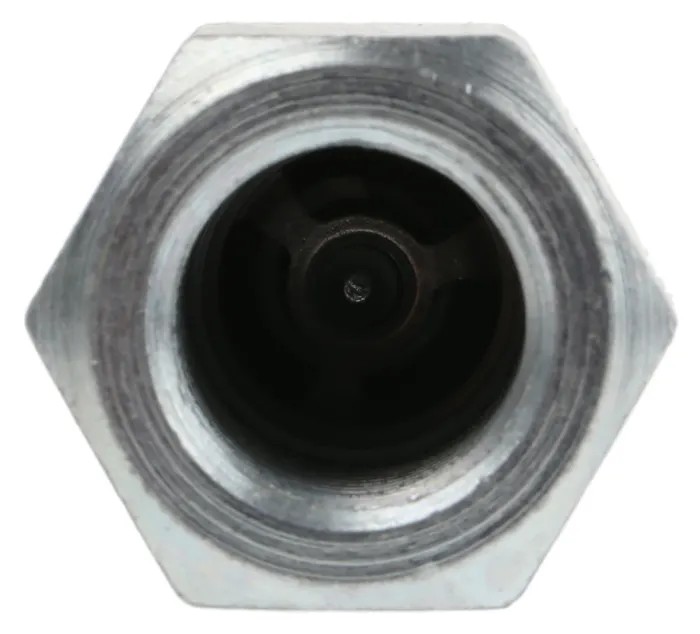

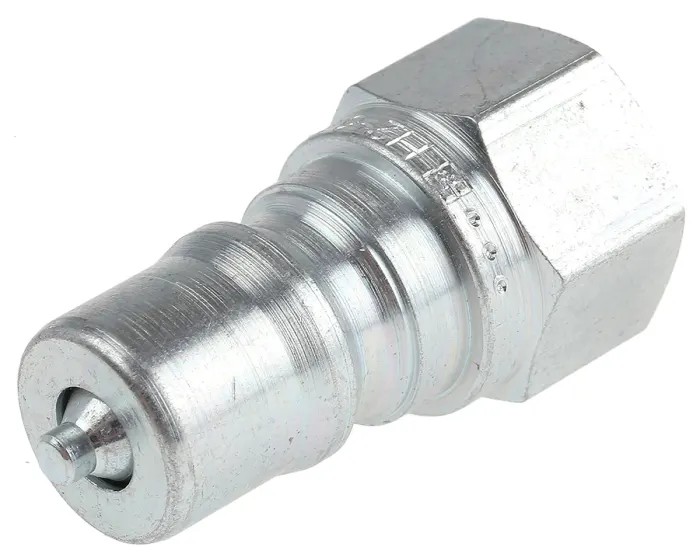

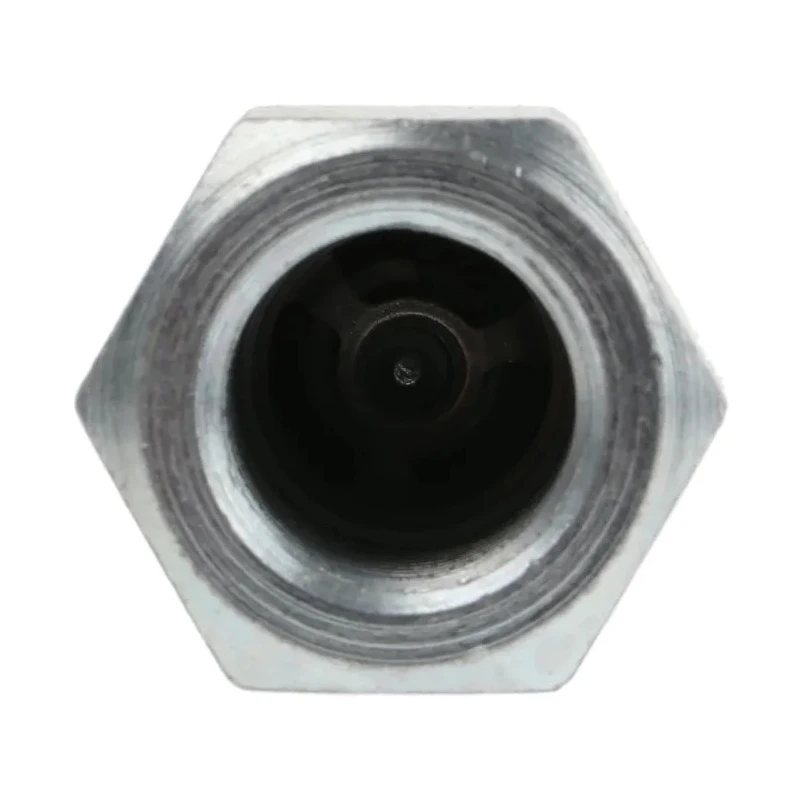

Parker Steel Hydraulic Quick Connect Coupling Male G 1/4 in 35 MPa H2-63-BSPP
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Parker |
| Material | Steel |
| Maximum Operating Pressure | 35 Mpa |
| Temperature range | -40 to +80°C |
| Model | H2-63-BSPP |
| Finish | Chromated, Zinc Plated |
| Series | 60 |
| Maximum Operating Temperature | 110°C |
| Thread Size | 1/4 in |
| Sub Type | Nipple |
| Minimum Operating Temperature | -40°C |
| Lock Type | Ball Lock |
| Thread Standard | G |
| Thread Gender | Male |
| Parker Brass Hydraulic Quick Connect Coupling Female G 1/4 in, 1000 psiBrand | Parker |
Key Features
- Designed for industrial hydraulic connections requiring frequent assembly and disassembly.
- Constructed from robust zinc-plated and yellow chromate treated steel for enhanced corrosion resistance.
- Compatible with British Standard Pipe Parallel (BSPP) thread size G 1/4 inch.
- High-pressure design with a rated maximum operating pressure of 35 MPa, suitable for demanding fluid power applications.
- Features double shut-off, ball lock nipple style for secure, leak-proof connections.
- Wide operating temperature range from -40°C to 110°C, compatible with hydraulic fluids and coolants.
- Ideal for industrial hydraulic lines, mobile equipment, food, chemical processing, and water/coolant transfer.
Product Description
The Parker H2-63-BSPP is a steel hydraulic quick connect coupling engineered for reliable, high-performance fluid transfer in demanding industrial applications. With a male G 1/4 inch BSPP thread and a robust steel construction finished in zinc plating and yellow chromate, this coupling ensures durability and corrosion resistance, even in harsh environments. The Series 60 design incorporates a ball lock mechanism and double shut-off valve to provide a secure, leak-proof connection that can be repeatedly connected and disconnected without compromising system integrity.
This coupling is designed for a maximum operating pressure of 35 MPa, making it well-suited for use with high-pressure hydraulic systems. It features hardened nipples and sleeves for longevity and a captive valve seal to prevent fluid loss during connection cycles. The coupling is engineered to operate reliably within a wide temperature range from -40°C to 110°C, with optimal sealing performance up to +80°C, ensuring compatibility with most industrial hydraulic fluids, water, and select chemicals.
Applications encompass industrial hydraulic lines, manufacturing plants, mobile equipment, food and chemical processing operations, and water or coolant handling systems where repeated hose attachment changes are common. Its standard G-thread compatibility allows integration into popular European and international hydraulic systems.
Additional features include a durable ball locking mechanism for quick one-handed operation, a high-flow capacity through the optimized passage design, and a corrosion-resistant finish that withstands continual exposure to challenging operating conditions.
This coupling complies with ISO 7241-B dimensional standards and is part of Parker’s proven Series 60 range, known for ease of use and consistent sealing with compatible hydraulic nipples. The male design is suitable for pairing with female quick connect sockets in modular hydraulic circuits.
Explore additional Hydraulic Quick Connect Coupling options and compatible accessories from Parker for comprehensive fluid power solutions across multiple industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this hydraulic coupling is 35 MPa.
This model features a G 1/4 inch thread size, which is compatible with British Standard Pipe Parallel (BSPP) specifications.
The coupling operates within a temperature range of -40°C to 110°C, with optimal sealing performance up to +80°C.
It is constructed from steel and finished with zinc plating and yellow chromate for enhanced corrosion resistance.
The ball lock mechanism provides a secure and leak-proof connection, allowing for quick one-handed operation during assembly and disassembly.
Yes, it is designed for high-pressure hydraulic systems, with a maximum operating pressure of 35 MPa.
It is suitable for industrial hydraulic lines, mobile equipment, food and chemical processing, and water or coolant transfer applications.
The coupling complies with ISO 7241-B dimensional standards, ensuring compatibility with various hydraulic systems.
This model utilizes a ball lock type for secure connections and ease of use.
The coupling is part of Parker's Series 60 range, which is known for its ease of use and consistent sealing performance.
The coupling is manufactured in the United States.
It features a chromated and zinc plated finish for enhanced durability and corrosion resistance.
