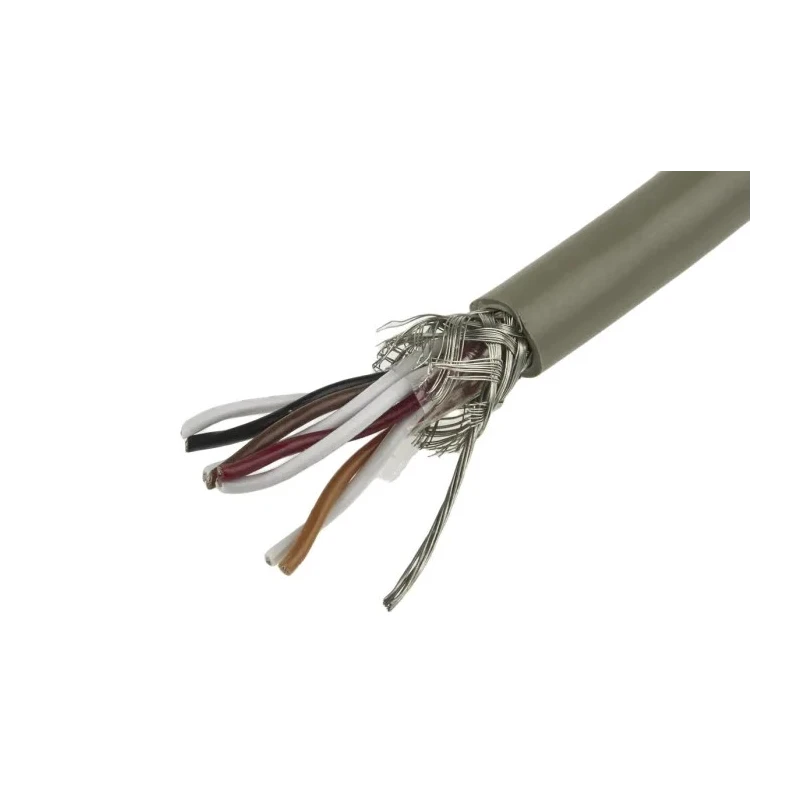

Alpha Wire Pro-Tekt Series Data Cable 4 Pairs 8 Cores 0.09 mm² 50 m Grey Sheath Polyvinyl Chloride B961043 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.09 mm² |
| Model | B961043 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5.79mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.228 inch (5.79 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 36AWG |
| Size of Strands | 36AWG |
| Number of Pairs | 4 |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/36 |
| Pairs | 4, White + Black, White + Brown, White + Red, White + Orange |
Key Features
- Constructed with tin copper wire for reliable conduction.
- Jacket made of flame retardant polyvinyl chloride for safety.
- Operating temperature range from -30°C to 105°C.
- Outer diameter of 5.79 mm with a nominal diameter of 0.228 inch (5.79 mm).
- Stranded 7/36 AWG core strands provide increased flexibility.
- Complies with CE, CSA, and UL standards for industrial use.
- Flame retardant and resistant to abrasion with UV and oil resistant sheath.
- Designed for industrial automation, medical devices, aerospace, and commercial electronics.
Product Description
Alpha Wire B961043 GE321 Pro-Tekt Series Data Cable is a high-performance, flexible cable designed for demanding industrial and automation environments. It features 4 pairs (8 cores) of 0.09 mm² tin copper wire conductors, enclosed in a grey flame retardant polyvinyl chloride (PVC) jacket, providing robust protection and insulation.
The cable’s construction includes stranded 7/36 AWG core strands, which increase flexibility and ease of installation in tight spaces. The nominal diameter is 5.79 mm (0.228 inch) with a jacket thickness of 0.81 mm, and an insulation thickness of 0.25 mm, optimized for signal integrity and durability.
With an operating temperature range from -30°C to +105°C, it is suitable for harsh industrial conditions. The jacket is UV and oil resistant, making this cable ideal for use in environments exposed to sunlight and oils.
This cable complies with multiple industry standards such as CE, CSA, and UL, ensuring safety and reliability. It is flame retardant to reduce fire risks in industrial settings.
The Pro-Tekt series offers choices of shielding, and this variant provides mechanical strength along with excellent resistance to electromagnetic interference, essential for sensitive electronic applications.
This cable is widely used in industrial automation, medical equipment, aerospace, petrochemical industries, and commercial electronics, where combined data, power, coaxial, and AV cores are required within a single cable system.
Constructed with tin copper wire for reliable conduction. Jacket made of flame retardant polyvinyl chloride for safety. Operating temperature range from -30°C to 105°C. Outer diameter of 5.79 mm with a nominal diameter of 0.228 inch (5.79 mm).
Stranded 7/36 AWG core strands provide increased flexibility. Cable pairs color coded: white/black, white/brown, white/red, white/orange. Complies with CE, CSA, and UL standards for industrial use. Flame retardant and resistant to abrasion with UV and oil resistant sheath.
Designed for industrial automation, medical devices, aerospace, and commercial electronics. Explore further Alpha Wire product solutions and categories on EnvMart for comprehensive wiring and cabling requirements in your industry.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this cable is 105°C.
The outer diameter of this model is 5.79 mm (0.228 inch).
This data cable features 8 cores, organized into 4 pairs.
The cable is constructed with tin copper wire conductors and has a jacket made of flame retardant polyvinyl chloride (PVC).
The pairs are color coded as follows: white/black, white/brown, white/red, and white/orange.
This model complies with CE, CSA, and UL standards for industrial use.
The voltage rating for this cable is 300V.
The insulation thickness of this model is 0.25 mm (0.010 inch).
The minimum operating temperature is -30°C.
The jacket color of this data cable is grey.
This model features stranded 7/36 AWG core strands, which provide increased flexibility for installation in tight spaces.
It is designed for use in industrial automation, medical devices, aerospace, and commercial electronics.
