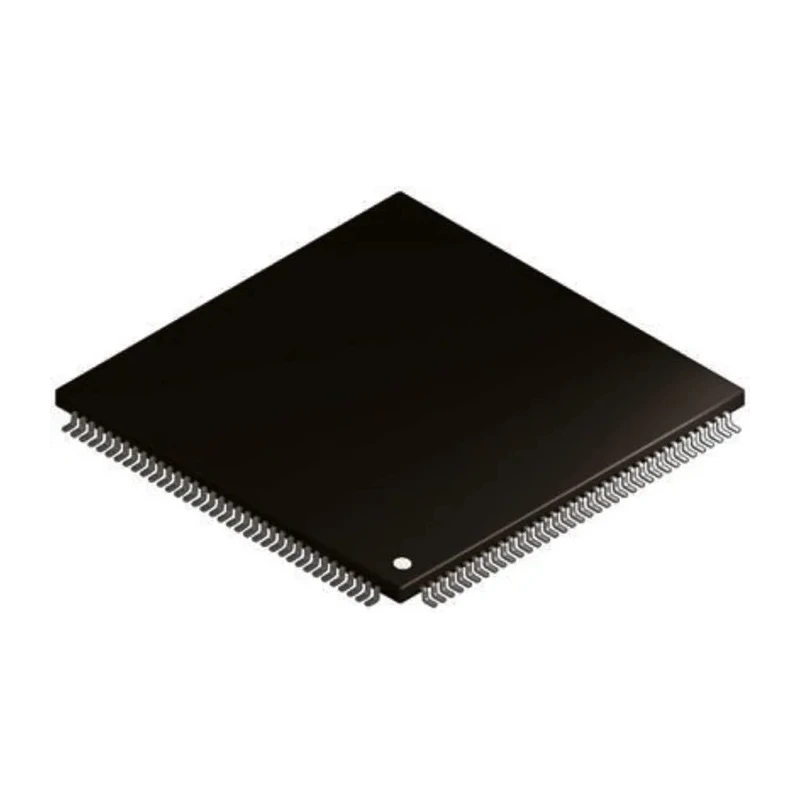

NXP Kinetis K6x 32 bit ARM Cortex M4 Microcontroller 100 MHz, 512kB FLASH, 128kB RAM, 144-Pin LQFP MK60DN512ZVLQ10
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.6mm |
| Length | 20mm |
| Model | MK60DN512ZVLQ10 |
| Width | 20mm |
| Mount Type | Surface |
| Series | Kinetis K6x |
| Maximum Operating Temperature | 105°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128kB |
| Pin Count | 144 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.71V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 100MHz |
| Analogue Comparators | 3 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC, DSP |
| ADCs | 2 x 16 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- Operates on 1.71 V minimum to 3.6 V maximum supply voltage.
- Integrated dual 12-bit DACs and dual 16-bit ADCs for precise analog processing.
- Broad operating temperature range from -40°C to 105°C for industrial applications.
- Supports RISC and DSP instruction sets with four timers for versatile timing operations.
- Compact 20mm x 20mm x 1.6mm surface-mount LQFP package suitable for space-limited designs.
- Includes three analogue comparators for advanced signal comparison tasks.
- Automotive standard compliance is not specified, appropriate for general embedded systems.
- Designed for industrial, automotive, communication, and embedded control applications.
Product Description
NXP MK60DN512ZVLQ10 is a high-performance 32 bit ARM Cortex M4 microcontroller from the Kinetis K6x series featuring a 100 MHz maximum clock frequency and 512kB of FLASH program memory complemented by 128kB of RAM. The device is housed in a compact 144-pin LQFP surface mount package measuring 20mm by 20mm with 1.6mm height.
This microcontroller supports operation across a 1.71 V to 3.6 V supply voltage range and is designed for robust performance across an extended temperature range from -40°C to 105°C, making it suitable for industrial and automotive environments.
The MK60DN512ZVLQ10 integrates dual 12-bit DACs and dual 16-bit ADCs, enabling precise analog signal conversion and processing, alongside three analogue comparators for critical signal comparison tasks. It supports RISC and DSP instruction sets providing versatility in signal and data processing applications.
Equipped with four timers, the device supports complex timing and control functionality essential for embedded system designs. While it does not specifically meet automotive standards, it is optimized for applications that require a mix of performance, integration, and power efficiency.
Typical use cases include industrial automation, consumer electronics, communication equipment, and advanced embedded control systems requiring a reliable and scalable ARM Cortex M4 MCU.
Operates on a wide voltage range from 1.71 V to 3.6 V. 100 MHz max clock speed enables high-performance processing. 512kB FLASH and 128kB RAM support substantial application code and data needs. Includes advanced analog peripherals such as 2x 12-bit DACs, 2x 16-bit ADCs, and 3 comparators.
Compact 144 Pin LQFP package suitable for diverse PCB layouts. Extended temperature rating for industrial and commercial usage. Supports multiple instruction sets for flexible programming options. It is available from authorized industrial distributors for integration into embedded designs aimed at boosting production efficiency and performance.
Explore the Electronics & Electricals category on EnvMart for more advanced Microcontrollers and semiconductor components from leading brands including NXP.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the MK60DN512ZVLQ10 microcontroller is 100 MHz.
It operates on a supply voltage range from 1.71 V to 3.6 V.
The dimensions of the LQFP package are 20mm x 20mm with a height of 1.6mm.
This microcontroller features 512kB of FLASH program memory.
It has a RAM size of 128kB.
It includes dual 16-bit ADCs for precise analog signal processing.
Yes, it integrates dual 12-bit DACs for analog signal conversion.
The operating temperature range is from -40°C to 105°C.
It supports four timers for versatile timing operations.
It supports RISC and DSP instruction sets, providing flexibility in programming.
It is designed for industrial, automotive, communication, and embedded control applications.
The MK60DN512ZVLQ10 has a pin count of 144.
