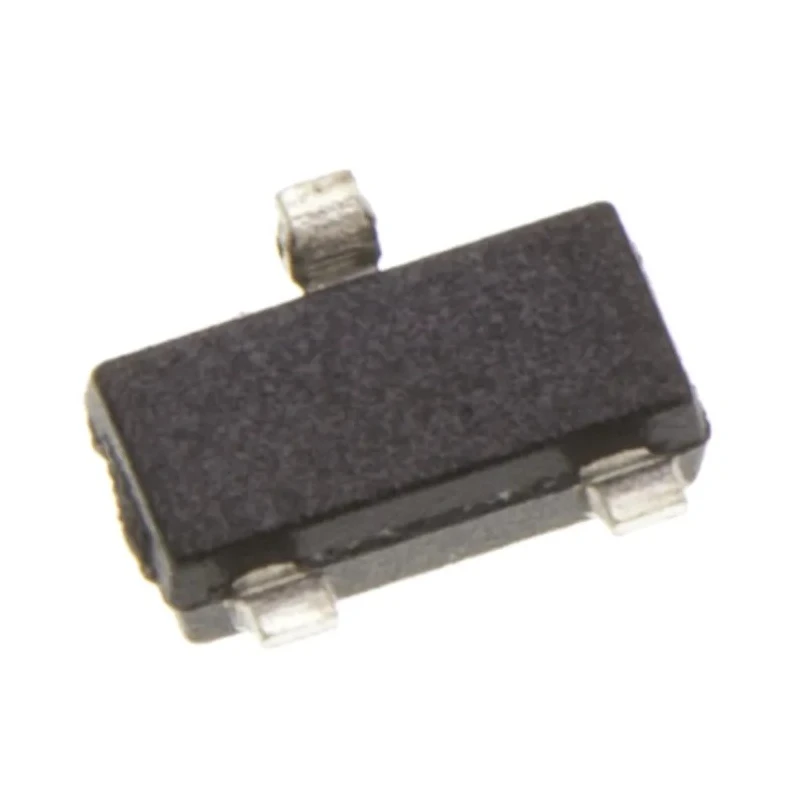

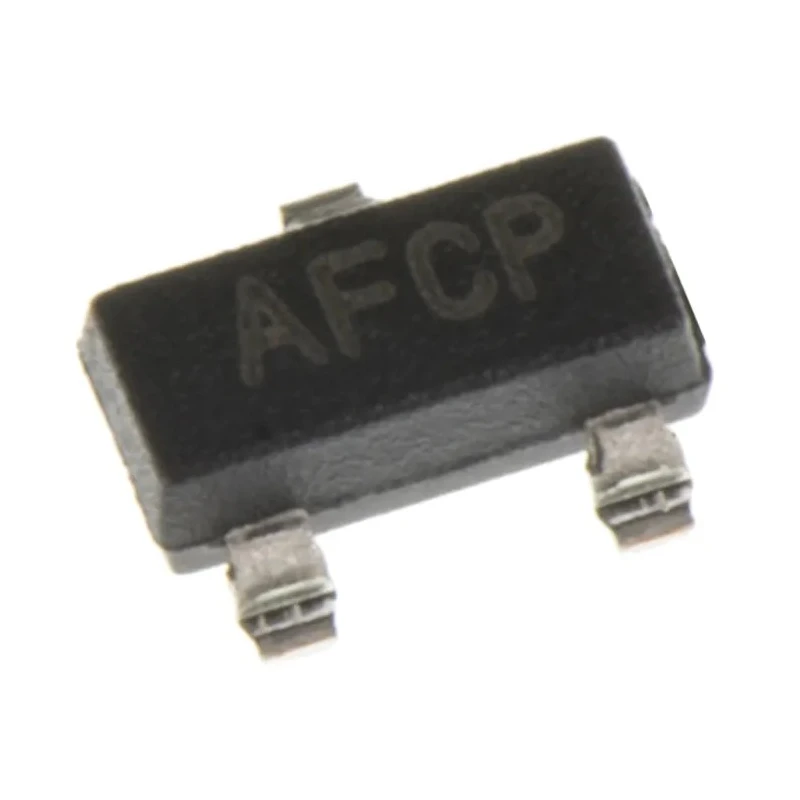

Microchip MCP9700AT Series Voltage Output Voltage Temperature Sensor Surface Mount Analogue ±2°C 3-Pin SOT-23 MCP9700AT
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.05mm |
| Model | MCP9700AT |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9700AT |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Sensor Gain | 10mV/°C |
Key Features
- This sensor converts temperature to an analogue voltage output.
- It operates over a temperature range from -40°C to 125°C.
- Supply voltage range is between 2.3V and 5.5V.
- The device features a sensor gain of 10mV/°C for precise temperature measurement.
- The compact SOT-23 package measures 3.05mm length, 1.4mm width, and 1.02mm height.
- It is designed to resist parasitic capacitance and drive large capacitive loads.
- The sensor is suitable for temperature monitoring in office equipment, home appliances, and battery packs.
- Its surface mount design facilitates easy integration into electronic circuits.
Product Description
Microchip MCP9700AT is a voltage output Temperature Sensor in a surface mount 3-pin SOT-23 package. It delivers analogue voltage output corresponding to temperature changes with an accuracy of ±2°C, suitable for various industrial and electronic applications.
Operating over an extended temperature range from -40°C up to 125°C, it supports supply voltages from 2.3V to 5.5V, making it compatible with a wide range of circuits.
The sensor gain is 10mV/°C, providing linear and accurate analogue output. Its package dimensions are 3.05mm in length, 1.4mm width, and 1.02mm height, suitable for compact PCB layouts.
Designed to resist parasitic capacitance and able to drive capacitive loads effectively, the MCP9700AT sensor is ideal for temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, battery packs, and other devices requiring relative temperature measurements.
This sensor converts temperature changes into accurate analogue voltage signals. Supports an operating temperature range from -40°C to 125°C. Compact surface mount SOT-23 package for easy PCB assembly. Wide supply voltage range between 2.3V and 5.5V.
10mV per degree Celsius sensor gain for precise temperature reading. Resistant to parasitic capacitance effects and capable of driving large capacitive loads. Applications include industrial, laboratory, consumer electronics, and battery management systems.
Manufactured in Thailand with Microchip quality standards.
Discover this advanced temperature sensing solution to enhance your electronic designs requiring precise temperature monitoring. Explore more Microchip products and sensors on EnvMart for your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9700AT operates over a temperature range from -40°C to 125°C.
This model supports a supply voltage range between 2.3V and 5.5V.
The sensor gain is 10mV per degree Celsius, providing a linear output corresponding to temperature changes.
The SOT-23 package measures 3.05mm in length, 1.4mm in width, and 1.02mm in height.
It provides an analogue voltage output that corresponds to temperature changes.
This model features a 3-pin configuration.
The accuracy of this sensor is ±2°C.
It is suitable for temperature monitoring in office equipment, home appliances, entertainment systems, battery packs, and more.
Yes, it is designed to resist parasitic capacitance and can effectively drive large capacitive loads.
The sensor is manufactured in Thailand.
It features a surface mount design for easy integration into electronic circuits.
The interface type of this sensor is analogue.
