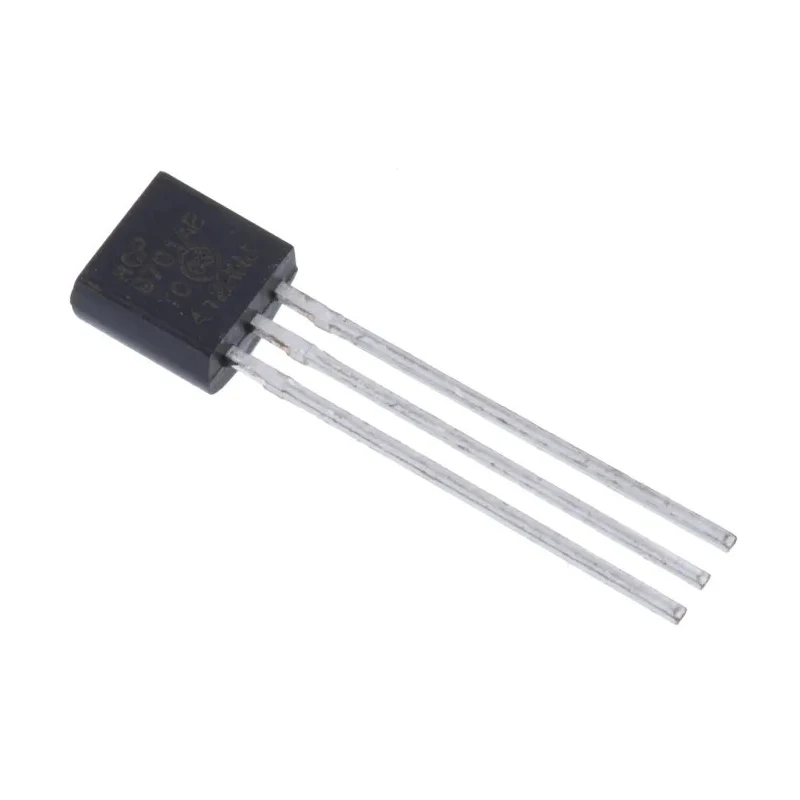

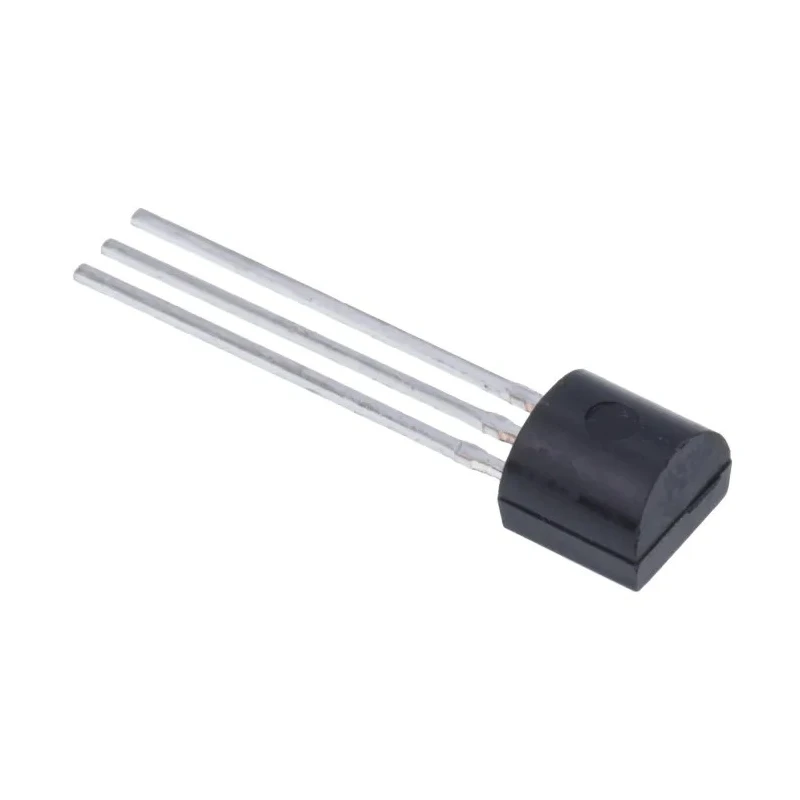

Microchip Voltage Output Temperature Sensor Through Hole Mount Analogue ±1°C 3-Pin TO-92 MCP9701
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1°C |
| Brand | Microchip |
| Height | 5.33mm |
| Length | 5.21mm |
| Model | MCP9701 |
| Width | 107.95mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | MCP9701 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -10°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.1V |
| Sensor Gain | 19.5mV/°C |
Key Features
- Designed for through hole mounting with a TO-92 package.
- Operates within a temperature range of -10°C to 125°C.
- Suitable for monitoring temperature in office equipment and home appliances.
- Operates with supply voltages between 3.1V and 5.5V.
- Provides a sensor gain of 19.5mV per °C for accurate temperature conversion.
- Features a three-pin interface for straightforward integration in circuits.
- Compact dimensions of approximately 5.33mm height and 5.21mm length.
- Robust design resistant to parasitic capacitance effects.
Product Description
Microchip MCP9701 voltage output temperature sensor, model MCP9701, offers accurate temperature measurement with ±1°C precision. The analogue output provides a linear voltage proportional to temperature, simplifying integration into electronic systems.
The sensor is designed for through hole mounting in a compact TO-92 package with three pins and dimensions of 5.33mm height and 5.21mm length. It operates reliably across a temperature range from -10°C to 125°C with a supply voltage between 3.1V and 5.5V.
This sensor series excels in resistance to parasitic capacitance and can drive large capacitive loads, making it highly stable in various operating environments. The MCP9701’s gain of 19.5mV per °C enables precise and responsive temperature monitoring.
Applications for this sensor include temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, battery packs, and any systems requiring relative temperature change detection.
Microchip MCP9701 supports analogue interfacing for seamless use in industrial, laboratory, HVAC, manufacturing, and water treatment environments requiring dependable temperature sensing components.
Through hole mounting with TO-92 package ensures easy PCB integration. 3-pin construction facilitates straightforward electronic connection. Stable analogue voltage output linear to temperature simplifies signal processing.
Wide temperature range from -10°C to 125°C suits diverse environments. Operating supply voltage from 3.1V to 5.5V supports low power consumption. No automotive standard compliance; suitable for general industrial and commercial use.
Compact form factor allows use in space-constrained assemblies. Designed for resistance to parasitic capacitance and large capacitive loads. Ideal for embedded system temperature monitoring and control. Explore our comprehensive range of Temperature Sensors and electronic components on EnvMart for advanced industrial and laboratory temperature sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9701 operates within a temperature range of -10°C to 125°C.
The accuracy of the MCP9701 is ±1°C.
The sensor gain of the MCP9701 is 19.5mV per °C.
This model operates with supply voltages between 3.1V and 5.5V.
The MCP9701 is designed for through hole mounting in a TO-92 package.
The MCP9701 has dimensions of approximately 5.33mm in height and 5.21mm in length.
The MCP9701 provides a voltage output that is linear and proportional to temperature.
This temperature sensor features a three-pin interface for easy integration.
The MCP9701 is suitable for temperature monitoring in office equipment, home appliances, entertainment systems, and more.
Yes, the MCP9701 is designed to be resistant to parasitic capacitance effects and can drive large capacitive loads.
The MCP9701 comes in a TO-92 package type.
The MCP9701 is manufactured in India.
