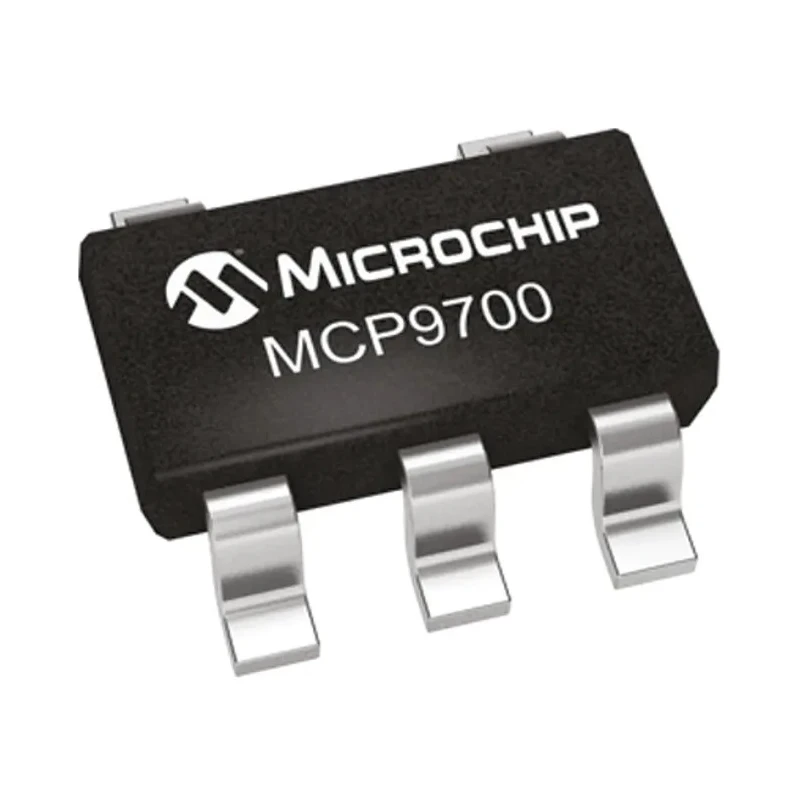

Microchip MCP9700T Series Voltage Output Voltage Temperature Sensor Surface Mount Analogue ±4°C 5-Pin SC-70 MCP9700T
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±4°C |
| Brand | Microchip |
| Height | 1mm |
| Length | 2.2mm |
| Model | MCP9700T |
| Width | 1.35mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9700T |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Sensor Gain | 10mV/°C |
Key Features
- This sensor operates with a supply voltage range from 2.3V to 5.5V.
- It supports a wide operating temperature range from -40°C to 125°C.
- The sensor offers a temperature-to-voltage gain of 10mV/°C ensuring reliable measurements.
- Compact surface mount package (SC-70) measures 2.2mm length, 1.35mm width, and 1mm height.
- Designed to resist parasitic capacitance and drive large capacitive loads suitable for various electronic applications.
- Ideal for temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery packs.
- Automotive standard is not supported for this sensor.
Product Description
Microchip MCP9700T Series Voltage Output Temperature Sensor, model MCP9700T, is a 5-pin, surface mount analogue temperature sensor delivered in a compact SC-70 package. It offers ±4°C accuracy and converts temperature changes into a proportional voltage output with a gain of 10mV/°C. This sensor operates efficiently within a power supply range from 2.3V up to 5.5V and supports a broad temperature range from -40°C to 125°C, making it adaptable for demanding industrial and commercial environments.
The device combats parasitic capacitance effects and can drive large capacitive loads, enhancing stability and performance in complex circuit designs. Its compact dimensions (2.2mm length, 1.35mm width, 1mm height) and surface mount design make it suitable for dense PCB layouts.
Applications include but are not limited to temperature monitoring in office equipment, household appliances, entertainment devices, hard disk drives, and battery management systems. The MCP9700T is not compliant with automotive standards, thus ideal primarily for consumer and commercial electronics.
Operates within 2.3V to 5.5V supply voltage range for flexibility in design. Measures temperatures from -40°C to 125°C accurately within ±4°C. Compact 5-pin SC-70 surface mount package optimizes PCB space. 10mV/°C sensor gain converts temperature linearly to voltage output.
Resistant to parasitic capacitance, enabling stable operation in noisy environments. Supports a variety of electronic applications including sensors in appliances and battery packs. Manufactured in Thailand ensuring consistent quality standards.
This high-performance Temperature Sensor is an essential component for electronic designers seeking precise temperature measurement with a simple analogue output in compact form factor. Explore more sensors and related components in the Electronics & Electricals category at EnvMart for your industrial, laboratory, and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide operating temperature range from -40°C to 125°C.
It operates efficiently within a supply voltage range from 2.3V to 5.5V.
The sensor offers an accuracy of ±4°C.
The MCP9700T provides a voltage output that is proportional to temperature changes.
It has a temperature-to-voltage gain of 10mV/°C, ensuring reliable measurements.
This unit has compact dimensions of 2.2mm in length, 1.35mm in width, and 1mm in height.
The MCP9700T is delivered in a compact SC-70 surface mount package.
Yes, it is designed to resist parasitic capacitance and can drive large capacitive loads, enhancing stability in circuit designs.
It is suitable for temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery packs.
No, this sensor is not compliant with automotive standards and is primarily intended for consumer and commercial electronics.
The sensor features a surface mount design, making it suitable for dense PCB layouts.
It is manufactured in Thailand, ensuring consistent quality standards.
