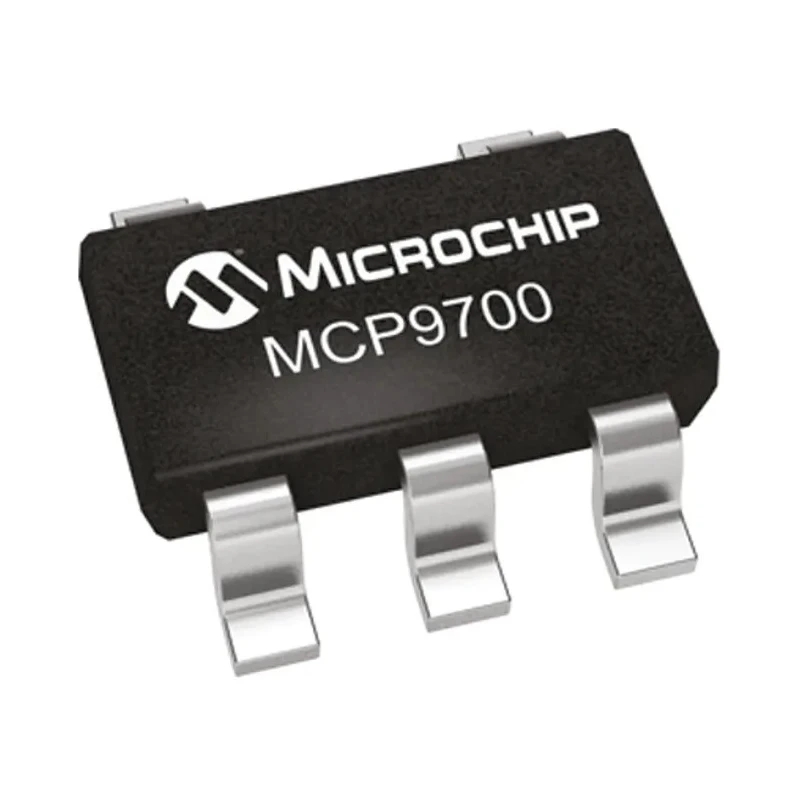

Microchip MCP9700T Series Voltage Output Voltage Temperature Sensor Analogue 5-Pin SC-70 MCP9700T
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±4°C |
| Brand | Microchip |
| Height | 1mm |
| Length | 2.2mm |
| Model | MCP9700T |
| Width | 1.35mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9700T |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Sensor Gain | 10mV/°C |
Key Features
- Provides accurate temperature measurement with ±4°C accuracy.
- Operates within a wide temperature range from -40°C to 125°C.
- Features a compact surface mount 5-pin SC-70 package measuring 2.2mm length, 1.35mm width, and 1mm height.
- Suitable for applications requiring analogue voltage output proportional to temperature.
- Operates on a supply voltage ranging from 2.3V to 5.5V.
- Offers sensor gain of 10mV/°C for precise voltage-to-temperature conversion.
- Designed for robust performance with resistance to parasitic capacitance and large capacitive load driving ability.
- Ideal for temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery packs.
Product Description
Microchip MCP9700T is a voltage output temperature sensor IC designed for reliable and accurate temperature sensing with analogue voltage output proportional to temperature changes. The device comes in a compact 5-pin SC-70 surface mount package measuring 2.2mm in length, 1.35mm in width, and 1mm in height. It operates across a broad ambient temperature range from -40°C to 125°C with an accuracy of ±4°C, making it suitable for a variety of industrial and commercial applications.
This sensor operates with a supply voltage between 2.3V and 5.5V and features a sensor gain of 10mV/°C. It is designed with resistance to parasitic capacitance and can drive large capacitive loads, ensuring stable and precise readings in complex circuit environments.
The MCP9700T series is ideally suited for applications such as temperature monitoring in office equipment, home appliances, entertainment devices, hard disk drives, battery packs, and other systems where accurate relative temperature measurement is essential.
Manufactured in Thailand, this sensor adheres to high-quality standards. It does not include automotive standards or special certifications. Provides accurate temperature measurement with ±4°C accuracy. Operates over a wide temperature range from -40°C to 125°C.
Compact 5-pin surface mount SC-70 package for space-saving designs. Voltage output interface compatible with analogue systems. Wide supply voltage range from 2.3V to 5.5V for versatile usage. Sensor gain of 10mV/°C for precise temperature-to-voltage conversion.
Robust immunity to parasitic capacitance and capability to drive large capacitive loads. Applications include industrial, laboratory, consumer electronics, and battery monitoring. Manufactured in Thailand for assured quality.
For detailed design information, datasheets, and application notes, refer to Microchip’s official technical documentation. Explore the complete range of Temperature Sensors at EnvMart for optimized sensor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a wide temperature range from -40°C to 125°C, allowing for versatile applications in various environments.
The sensor provides an accuracy of ±4°C, ensuring reliable temperature readings for various applications.
It features a voltage output interface that is compatible with analogue systems, allowing for easy integration into existing circuits.
This unit operates with a supply voltage ranging from 2.3V to 5.5V, providing flexibility for different power supply configurations.
The sensor gain is 10mV/°C, which allows for precise voltage-to-temperature conversion.
This model comes in a compact SC-70 package measuring 2.2mm in length, 1.35mm in width, and 1mm in height, making it suitable for space-constrained applications.
It is designed for surface mounting, facilitating easy integration into various electronic devices and systems.
Yes, it is designed with the capability to drive large capacitive loads, ensuring stable and precise readings in complex circuit environments.
This temperature sensor is ideal for temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery packs.
The MCP9700T is manufactured in Thailand, adhering to high-quality standards.
The interface type is analogue, allowing it to be easily integrated into systems that require analogue voltage outputs.
The maximum operating temperature for this model is 125°C, making it suitable for high-temperature environments.
