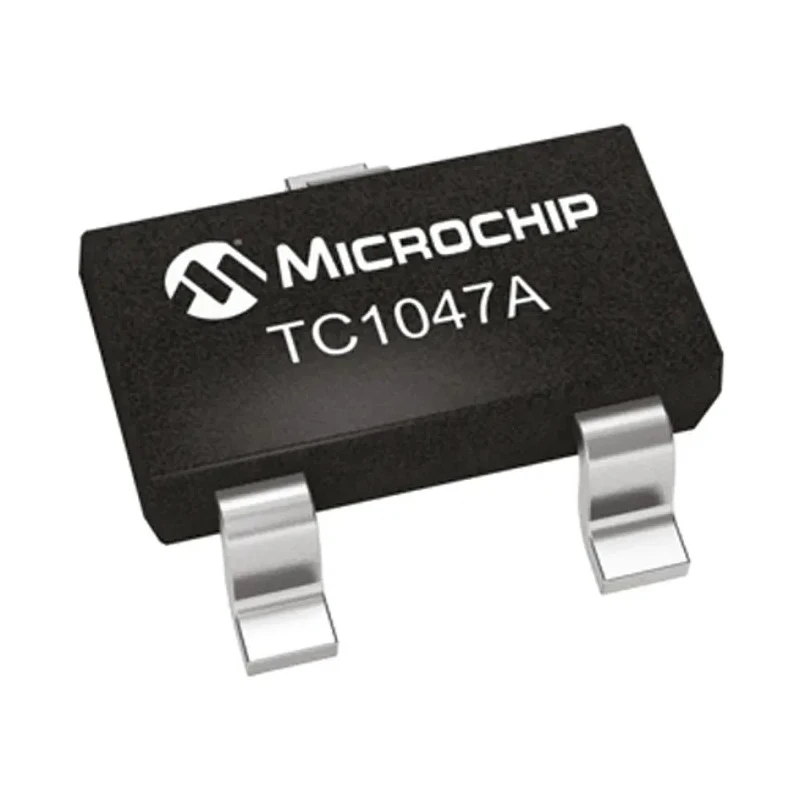

Microchip TC1047 Series Voltage Output Voltage Temperature Sensor Surface Mount Analogue ±2°C 3-Pin SOT-23 TC1047
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.05mm |
| Model | TC1047 |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | TC1047 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Sensor Gain | 10mV/°C |
Key Features
- Measures temperatures from -40°C to +125°C with direct voltage proportional output.
- Designed for use in mobile phones, temperature controllers, and fans.
- Operates with a supply voltage range of 2.5V to 5.5V for flexibility.
- Compact SOT-23 package measuring 3.05mm length, 1.4mm width, and 1.02mm height.
- Provides a sensor gain of 10mV/°C for precise voltage to temperature conversion.
- Robust surface mount design suitable for automated PCB assembly.
- Pin count of 3 for simple integration and minimal circuit complexity.
- Manufactured in Thailand with reliable and consistent quality.
Product Description
Microchip TC1047 is a voltage output temperature sensor from the TC1047 series, crafted for precise temperature measurement applications in Electronics and Electricals. This surface mount analogue sensor offers an accuracy of ±2°C and integrates easily with temperature regulation and control equipment. It operates over a wide temperature range from -40°C to +125°C, making it versatile for diverse industrial, commercial, and consumer applications.
The sensor's 3-pin SOT-23 package is compact, allowing ease of installation on PCB assemblies in mobile devices, temperature regulators, and temperature-controlled fan systems. With a sensor gain of 10mV/°C, it converts temperature into an exact voltage proportional signal, facilitating straightforward analog readouts or interfaces with ADCs.
Operating between supply voltages of 2.5V and 5.5V, the TC1047 ensures compatibility with multiple power environments. Its robust surface mount design assists in high-volume manufacturing processes that demand reliability and efficiency. The sensor is fabricated in Thailand adhering to consistent quality standards.
Applications for this sensor include industrial electronics, HVAC systems, mobile phone thermal management, laboratory instruments, and manufacturing process control. The 3-pin configuration minimizes circuit complexity while providing stable, accurate temperature detection.
Measures temperatures between -40°C to +125°C with ±2°C accuracy. Voltage output directly proportional to temperature. Compact surface mount SOT-23 package with 3 pins. Supply voltage ranging from 2.5V to 5.5V. Sensor gain of 10mV/°C for accurate voltage conversion.
Manufactured in Thailand ensuring quality and reliability. Suitable for diverse industries including HVAC, electronics, and manufacturing. Ideal for mobile phone thermal control and temperature regulators. Explore the full range of Microchip Temperature Sensors on EnvMart for your precision electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures temperatures from -40°C to +125°C.
The accuracy of this temperature sensor is ±2°C.
It provides a voltage output that is directly proportional to the temperature measured.
It operates with a supply voltage range of 2.5V to 5.5V.
The sensor gain is 10mV/°C, allowing for accurate voltage to temperature conversion.
The dimensions are 3.05mm in length, 1.4mm in width, and 1.02mm in height.
This model features a 3-pin configuration.
It is designed for surface mount installation.
The TC1047 is manufactured in Thailand.
It is suitable for applications in mobile phones, temperature controllers, HVAC systems, and laboratory instruments.
It comes in a compact SOT-23 package.
The interface type of this sensor is analogue.
