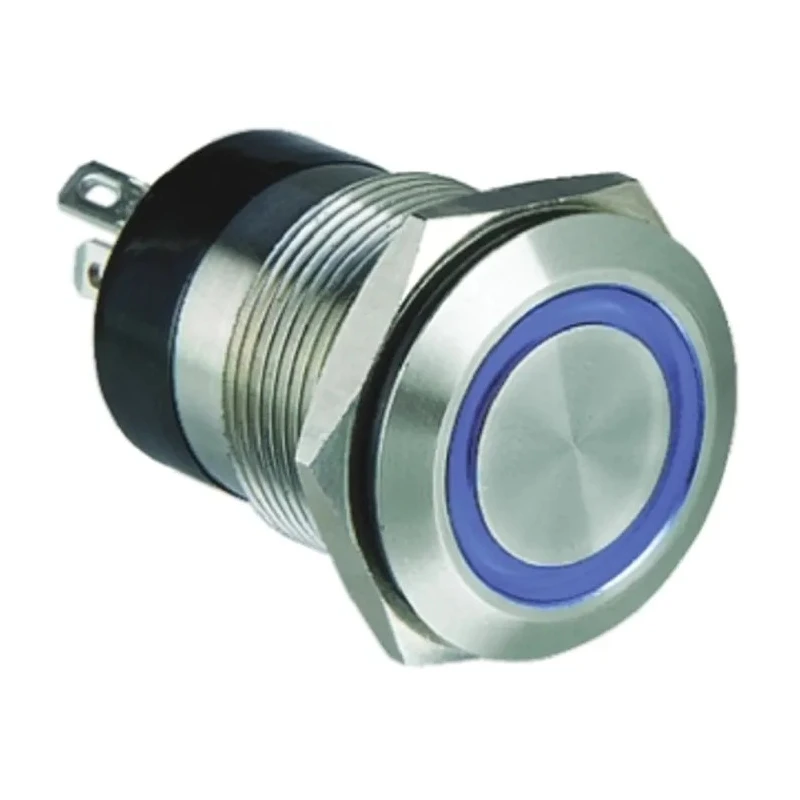

Bulgin Illuminated Push Button Switch Panel Mount Momentary Silver Actuator SPST Blue LED IP66 24V dc MPI002

The Bulgin MPI002 illuminated push button switch is a robust and vandal-resistant switch designed for panel mounting with a 19.2 mm cutout dimension. Featuring a silver button actuator and blue LED illumination, this momentary switch operates under SPST configuration and is powered by 24 V dc. The switch offers an IP66 ingress protection rating, making it fully sealed against dust and water.

Manufactured from stainless steel, the MPI002 series is designed to withstand extensive wear and tear in demanding industrial environments. It includes integral supply resistors for various voltages including 6V, 12V, and 24V, with options for user-installed resistors for differing illumination voltages. The switch terminals are provided either as flying leads (length 300mm) or 2.8 mm solder tags allowing versatile connection methods.

Operating reliably between -30°C and 70°C, this switch is suitable for a wide range of applications in electrical panels, automation systems, control units, and industrial machinery requiring secure, vandal-resistant controls. The internal transient voltage suppression (TVS) offers protection against electrical surges, increasing the product lifespan.

Overall length measurements vary based on termination method: 35 mm plus 300 mm cord for flying leads and 32.7 mm for solder tag configurations. Installation requires a 19.2 mm diameter panel cutout. Users must ensure the correct illumination resistor is used if the switch model does not include one, as indicated by its suffix code.

The switch includes a momentary silver actuator button with blue LED illumination. It is panel mount type with IP66 sealing for protection against dust and water. Operating temperature range is -30°C to 70°C for versatile environmental use.

Contact configuration is SPST with 50 mA contact current rating. Manufactured to RoHS standards ensuring environmental compliance. Integral supply resistors available for 6V, 12V, and 24V LEDs; user to add series resistor if omitted.

Terminals available as flying leads or 2.8 mm solder tags to suit connection preferences. Includes internal TVS protection for surge resilience. Constructed from high-grade stainless steel for vandal resistance and durability.

This Bulgin MPI002 illuminated push button switch is ideal for industrial, electrical, automation, and commercial applications needing secure and reliable panel controls. Explore more Push Button Switches and components for comprehensive electrical system solutions with EnvMart.
