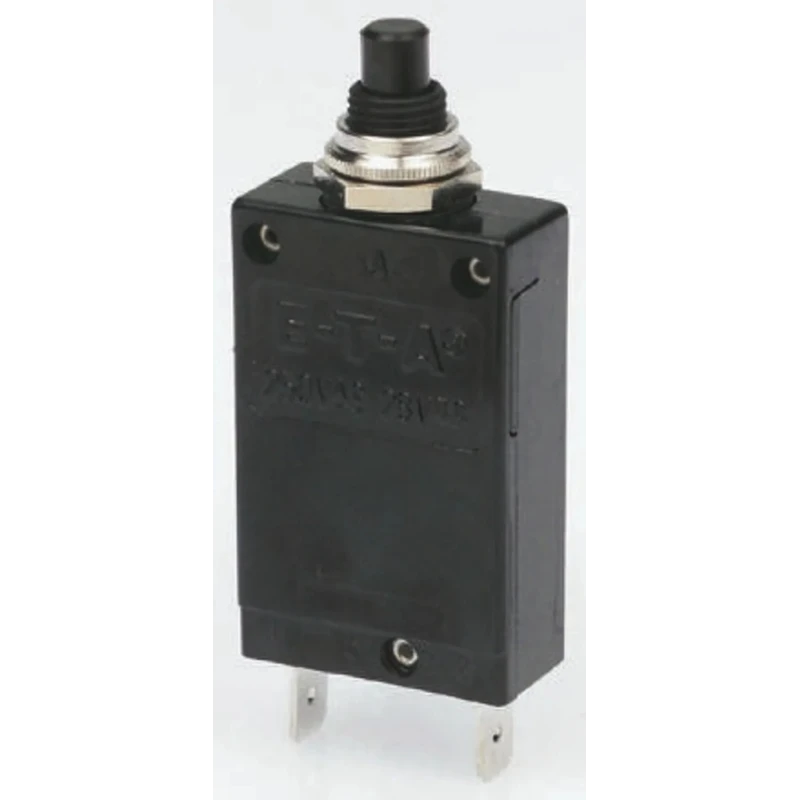

ETA 2 5700 Thermal Circuit Breaker 16A Current Rating 1-Pole Panel Mount 250V AC 50V DC 2-5700-IG2-P10-DD-000040-16A
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | ETA |
| Height | 44mm |
| Model | 2-5700-IG2-P10-DD-000040-16A |
| Width | 15.7mm |
| Mount Type | Panel |
| Current Rating | 16A |
| Series | 2 5700 |
| Terminal type | Blade |
| Breaking Capacity | 25A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Type R |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Button |
| Break Time | Medium |
Key Features
- Features a thermal tripping mechanism with type R characteristics for reliable operation.
- Compact size with 15.7mm width and 44mm height suitable for panel mounting.
- Equipped with blade type terminals and a button reset actuator for easy resetting.
- Operates at rated AC voltage of 250V and DC voltage of 50V with medium break time.
- Provides breaking capacity of 25A with trip free mechanism ensuring long service life.
- Complies with CE and RoHS standards and manufactured in Tunisia.
- Suitable for motors, transformers, power supplies, and extra low voltage systems.
- Small physical size with 3/8 inch or M12 moulded thread-neck single-hole mounting.
Product Description
ETA 2-5700-IG2-P10-DD-000040-16A Thermal Circuit Breaker is a panel mount thermal protection device with a 16A current rating and 1-pole design. This compact circuit breaker offers reliable overload and short circuit protection primarily used in electrical and automation applications.
The circuit breaker is part of the 2 5700 series, featuring a thermal tripping mechanism with Type R tripping characteristics ensuring sensitive and accurate response to overload conditions. It has a width of 15.7mm and height of 44mm, allowing installation in tightly spaced panels.
It is equipped with blade terminals measuring 6.3 to 0.8 mm, and a push button reset actuator facilitates easy manual resetting after trips. Rated for 250V AC and 50V DC, this breaker has a medium break time and a breaking capacity of 25A suitable for industrial and commercial electrical circuits.
The breaker includes a tease free, trip free mechanism promoting durability and long life, supporting a typical life expectancy of up to 5000 operations at twice the nominal current. Its design includes on/off status indication for operational visibility.
Compliant with CE and RoHS certifications, the product is manufactured in Tunisia according to IEC classification S/TO standards. It is mainly intended for protection of motors, transformers, power supplies, and extra low voltage systems where safety and reliability are critical.
Mounting is via a 3/8 inch or M12 moulded thread-neck, single-hole panel mounting ensuring secure installation within electrical panels. Thermal tripping mechanism with Type R characteristics. 16A current rating with 1-pole design.
Panel mount with compact 15.7mm width and 44mm height. Blade terminal connections and button reset actuator. Rated AC voltage 250V and DC voltage 50V. Breaking capacity of 25A and medium break time. Compliant with CE, RoHS, UL, CSA, and VDE standards.
Typical operational life of 5000 trips at twice nominal current. Suitable for industrial electrical protection including motors and transformers. Explore our extensive range of Thermal Circuit Breakers in the Electronics & Electricals category at EnvMart for reliable panel protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, making it suitable for various electrical applications requiring this level of protection.
It has a compact size with a width of 15.7mm and a height of 44mm, allowing for installation in tight spaces.
The breaking capacity of this circuit breaker is 25A, which is suitable for protecting electrical circuits from overloads and short circuits.
It is equipped with blade type terminals measuring 6.3 to 0.8 mm, facilitating secure connections in electrical panels.
This circuit breaker is rated for 250V AC and 50V DC, making it versatile for different electrical systems.
It features a thermal tripping mechanism with Type R characteristics, ensuring sensitive and accurate response to overload conditions.
It includes a button reset actuator, allowing for easy manual resetting after a trip occurs.
The typical operational life is up to 5000 trips at twice the nominal current, promoting durability and reliability in use.
This model complies with CE and RoHS standards, ensuring it meets safety and environmental regulations.
It is designed for panel mounting, utilizing a 3/8 inch or M12 moulded thread-neck for secure installation.
It is primarily intended for the protection of motors, transformers, power supplies, and extra low voltage systems.
It has a medium break time, which is suitable for various industrial and commercial electrical applications.
