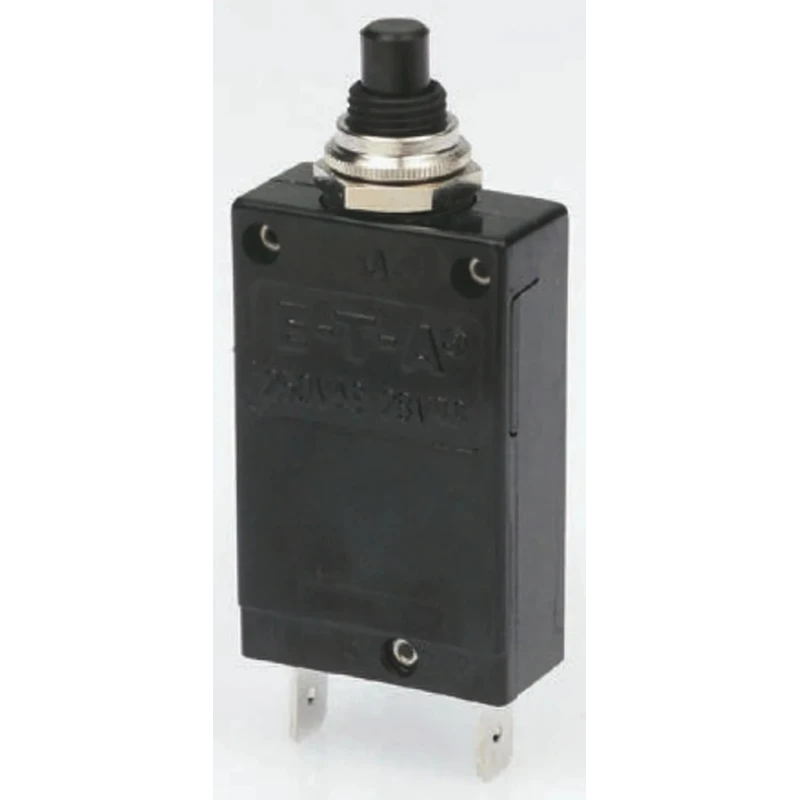

ETA Thermal Circuit Breaker 12A Current Rating 1-Pole Panel Mount 2-5700-IG2-P10-DD-000040-12A
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | ETA |
| Height | 44mm |
| Model | 2-5700-IG2-P10-DD-000040-12A |
| Width | 15.7mm |
| Mount Type | Panel |
| Current Rating | 12A |
| Series | 2 5700 |
| Terminal type | Blade |
| Breaking Capacity | 25A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Type R |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Button |
| Break Time | Medium |
Key Features
- Compact panel mount design with 3/8 inch or M12 moulded thread-neck single-hole mounting.
- Equipped with 6.3-0.8 mm blade terminals for reliable connections.
- Trip free mechanism ensures safety by preventing manual override.
- Push-to-release and push-to-reset button actuator for easy operation.
- Designed for overload and short circuit protection in motors, transformers, and power supplies.
- Rated for 250V AC and 50V DC operation with breaking capacity of 25A.
- Medium break time and type R tripping characteristics ensure effective fault interruption.
- Small physical size with a width of 15.7 mm and height of 44 mm for space saving installation.
Product Description
The ETA 2-5700-IG2-P10-DD-000040-12A Thermal Circuit Breaker is a high-quality panel-mount protection device engineered to safeguard electrical circuits from overload and short-circuit conditions. This single-pole breaker is rated for 12A current and is suitable for applications in industrial automation, electrical control panels, motor protection, transformers, and low voltage power supplies.
This Thermal Circuit Breaker features a compact form factor with a width of 15.7 mm and height of 44 mm, making it ideal for limited space installations. The breaker is mounted through a 3/8 inch or M12 moulded thread-neck single-hole and connects via reliable 6.3-0.8 mm blade terminals.
Safety and durability are ensured by the trip free mechanism, which prevents manual overriding of tripped circuits, and a push-to-release, push-to-reset button actuator offers user-friendly operations and visible on/off status indication. The device provides overload and short circuit protection with a breaking capacity of 25A and rated operating voltages of 250V AC and 50V DC.
The thermal trip mechanism exhibits type R characteristics with a medium break time, making it optimal for protecting motors, transformers, power supplies, and other extra low voltage systems conforming to IEC S/TO classification. The breaker complies with CE and RoHS standards guaranteeing international quality and environmental conformity.
Designed for long service life, the ETA thermal breaker supports approximately 5000 operation cycles at twice its nominal current rating. This ensures dependable performance in repetitive operational environments common in industrial and manufacturing sectors.
Country of origin: Tunisia. Compact panel mount design for space-efficient installation. Reliable blade terminal connections for secure wiring. Trip free safety mechanism to prevent misuse. Push button for reset and on/off status indication.
Overload and short circuit protection for circuit safety. Rated for 250V AC and 50V DC with 25A breaking capacity. Type R characteristic and medium break time for motor protection. IEC S/TO classification and CE, RoHS compliant.
Typical life of 5000 operations at twice rated current. Explore more products in the Electronics & Electricals category on EnvMart for advanced circuit protection solutions and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETA Thermal Circuit Breaker has a current rating of 12A.
It is rated for 250V AC and 50V DC operation.
The breaking capacity is 25A.
This model has a width of 15.7 mm and a height of 44 mm.
It features a panel mount design with a 3/8 inch or M12 moulded thread-neck for single-hole mounting.
It is equipped with 6.3-0.8 mm blade terminals for reliable connections.
The breaker uses a thermal tripping mechanism with Type R characteristics.
It has a medium break time for effective fault interruption.
It includes a trip free mechanism to prevent manual override and a push-to-release, push-to-reset button actuator for easy operation.
It complies with CE and RoHS standards, ensuring international quality and environmental conformity.
It is designed to support approximately 5000 operational cycles at twice its nominal current rating.
It is suitable for applications in industrial automation, electrical control panels, motor protection, transformers, and low voltage power supplies.
