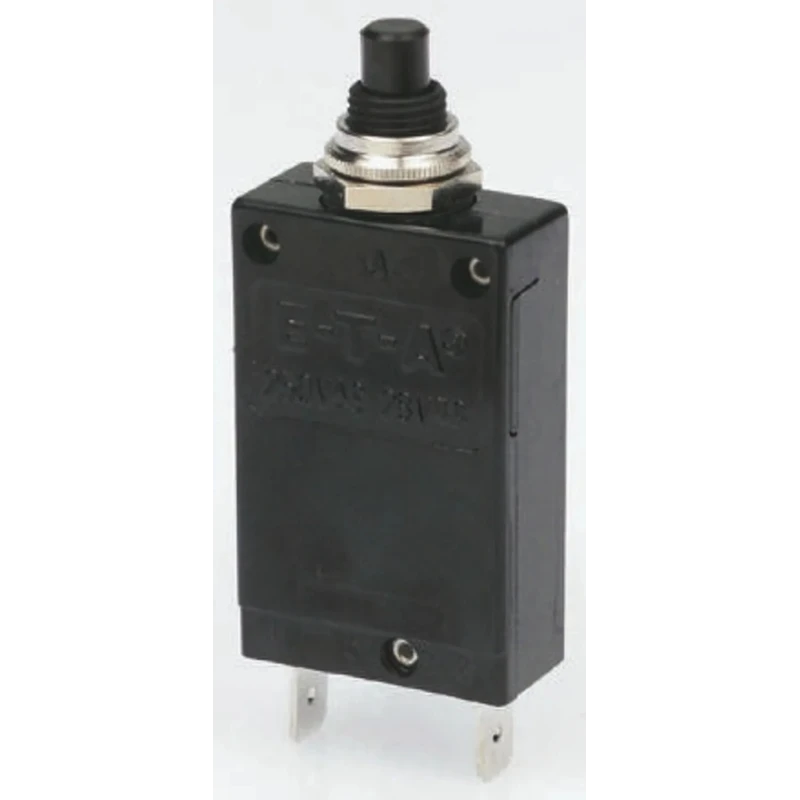

ETA 2 5700 Thermal Circuit Breaker 300mA Current Rating 1-Pole Panel Mount 2-5700-IG2-P10-DD-000040-0.3A

ETA 2-5700-IG2-P10-DD-000040-0.3A thermal circuit breaker is a compact and reliable protective device ideal for electrical and industrial applications. It features a thermal tripping mechanism to protect circuits against overloads and short circuits, operating at a current rating of 300mA with a single pole design suitable for panel mounting.

The device operates at a rated AC voltage of 250V and DC voltage of 50V, providing a breaking capacity of 25A. Its physical size measures 15.7mm in width and 44mm in height, making it ideal for installations with limited space requirements.

It employs type R tripping characteristics and is equipped with a tactile button reset actuator allowing for easy manual reset. Blade type terminals sized 6.3-0.8 mm ensure secure and standardized electrical connections.

This thermal circuit breaker complies with CE and RoHS standards, assuring both safety and environmental compliance. The device is designed primarily for applications including motor protection, transformers, power supply circuits, and extra-low voltage systems, meeting IEC S/TO classification.

The breaker incorporates trip free and tease free mechanisms enhancing longevity, with a typical operational life of 5000 operations at twice the nominal current rating, thereby ensuring durability and reliable performance in heavy-duty use cases.

Suitable for electrical panel and industrial automation systems, this breaker provides dependable current interruption to protect electrical circuits from damage. Series 2 5700 thermal circuit breaker with compact dimensions.

Operates at rated AC voltage of 250V and DC voltage of 50V. Breaking capacity of 25A ensures safe overload and short circuit protection. Features thermal tripping mechanism with type R characteristics. Panel mount type with blade terminal connections for ease of installation.

Reset actuator is button type enabling easy manual reset. Small width of 15.7mm and height of 44mm suits tight panel spaces. Compliance with CE and RoHS standards guarantees quality and environmental safety. Designed for motors, transformers, power supplies, and extra low voltage systems.

Trip free and tease free mechanism for long operational life with typical 5000 cycles. Explore more Thermal Circuit Breakers and electrical components in the Electronics & Electricals category at EnvMart for comprehensive industrial and commercial applications.
