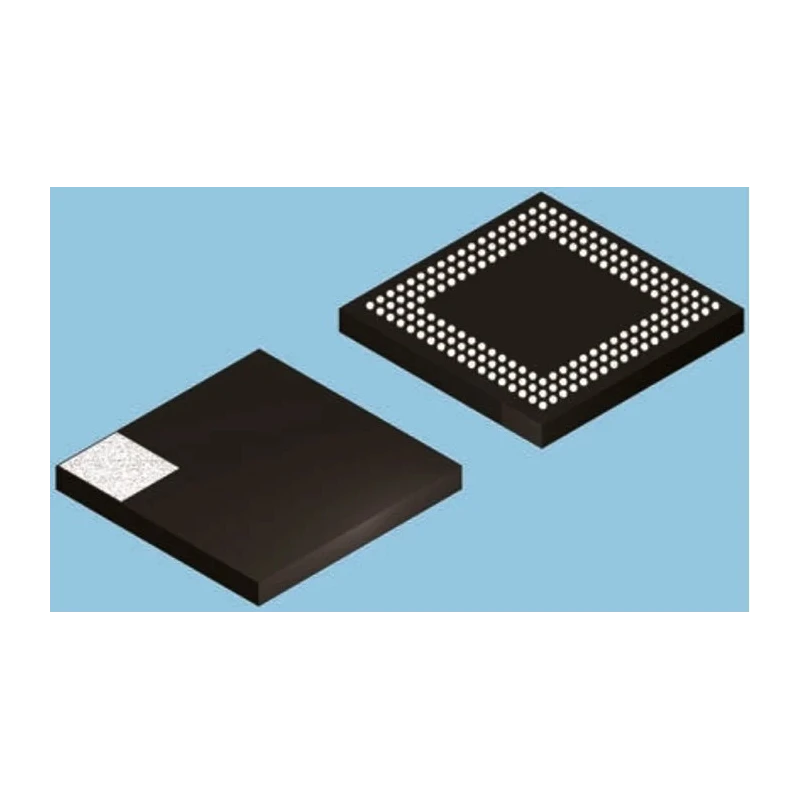

NXP 32 bit ARM7TDMI-S LPC24 Microcontroller 72 MHz 512kB FLASH 180-Pin TFBGA LPC2458FET180,551
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 850μm |
| Length | 12.2mm |
| Model | LPC2458FET180,551 |
| Width | 12.2mm |
| Mount Type | Surface |
| Series | LPC24 |
| Maximum Operating Temperature | 85°C |
| Package Type | TFBGA |
| Minimum Operating Temperature | -40°C |
| Ram size | 98kB |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 180 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 1.5W |
| Minimum Supply Voltage | 3V |
| Device Core | ARM7TDMI-S |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 72MHz |
| Number of Programmable I/Os | 136 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 10 Bit |
Key Features
- Based on ARM7TDMI-S 32-bit core for high-performance processing.
- Offers 512kB embedded high-speed FLASH memory for program storage.
- Operates at a maximum clock frequency of 72 MHz for efficient processing.
- Includes 98kB RAM and 136 programmable I/Os for flexible interfacing.
- Equipped with SPI interface and multiple timers for versatile control.
- Works within voltage range of 3 V to 3.6 V meeting low voltage requirements.
- Designed with 1 x 10-bit DAC and 8 x 10-bit ADCs for analog signal processing.
- Compact dimensions with 12.2 mm width and length, suitable for surface mount applications.
Product Description
NXP LPC2458FET180,551 is a 32 bit ARM7TDMI-S microcontroller from the LPC24 series, designed to deliver high-speed processing at 72 MHz. Featuring 512kB of embedded FLASH memory and 98kB of RAM, this microcontroller is optimized for industrial control, medical systems, and real-time embedded applications.
Its 180-pin TFBGA package offers a compact form factor with dimensions of 12.2mm by 12.2mm and a height of 850μm, making it suitable for surface mount technology. The device supports a SPI interface for communication and contains 136 programmable input/output pins, enhancing connectivity options for complex designs.
The microcontroller integrates 1 x 10-bit DAC and 8 x 10-bit ADC channels, enabling efficient analog and digital signal conversion. With 4 timers and support for RISC instruction set architecture, it meets stringent industrial requirements for multitasking and performance.
Operating voltage ranges from 3 V to 3.6 V with a maximum power dissipation of 1.5 W, the device maintains robust performance within operating temperatures between -40°C and 85°C. As a RoHS compliant product, it aligns with environmental safety standards.
Based on ARM7TDMI-S 32-bit core for high-performance processing. Offers 512kB embedded high-speed FLASH memory for program storage. Operates at a maximum clock frequency of 72 MHz for efficient processing. Includes 98kB RAM and 136 programmable I/Os for flexible interfacing.
Equipped with SPI interface and multiple timers for versatile control. Works within voltage range of 3 V to 3.6 V meeting low voltage requirements. Designed with 1 x 10-bit DAC and 8 x 10-bit ADCs for analog signal processing.
Compact dimensions with 12.2 mm width and length, suitable for surface mount applications. Supports RISC instruction set architecture for efficient code execution. Builders benefit from RoHS compliance ensuring environmental safety.
This microcontroller is ideal for applications in industrial automation, medical instrumentation, embedded control systems, and other electronics projects demanding reliable 32-bit processing capabilities. Explore more components and Microcontrollers from NXP in this category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 72 MHz, allowing for efficient processing capabilities.
It offers 512kB of embedded high-speed FLASH memory for program storage.
This model includes 136 programmable input/output pins, providing flexible interfacing options.
The operating voltage range for this microcontroller is from 3 V to 3.6 V.
It is equipped with 8 x 10-bit ADCs for efficient analog signal processing.
The package has a height of 850μm and dimensions of 12.2mm by 12.2mm, making it suitable for surface mount applications.
This unit supports a SPI interface for communication purposes.
It includes 98kB of RAM for data storage and processing tasks.
The operating temperature range is between -40°C and 85°C, accommodating various environmental conditions.
This model includes 4 timers for versatile control and timing applications.
Yes, this microcontroller is RoHS compliant, ensuring it meets environmental safety standards.
It utilizes the RISC instruction set architecture for efficient code execution.
