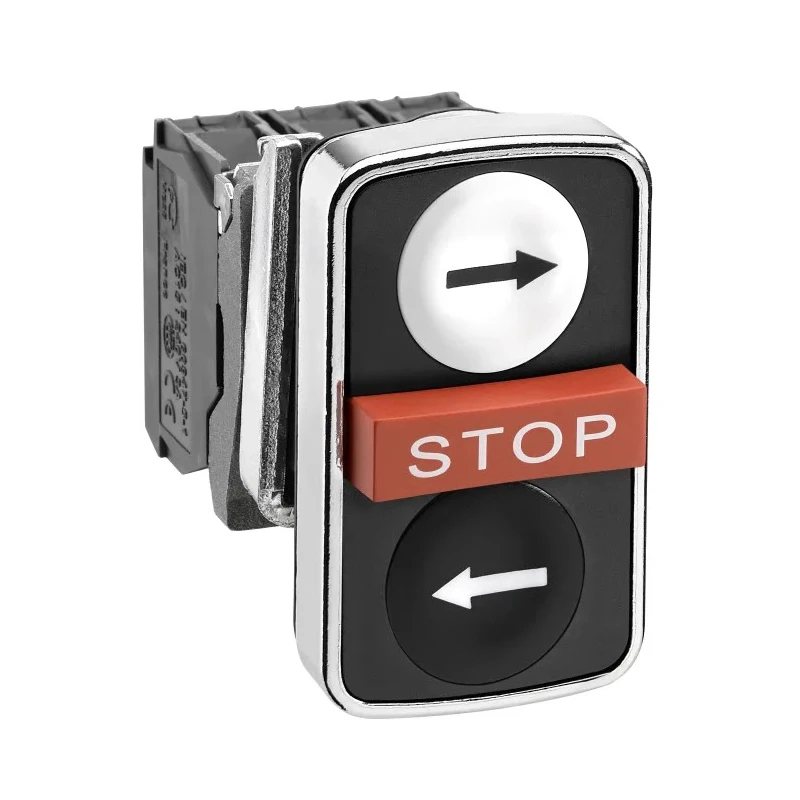

Schneider Electric Harmony XB4 Series Push Button Switch Spring Return Panel Mount 22 mm Cutout 2 NO 1 NC 600 V XB4BA711237

Schneider Electric XB4BA711237 Push Button Switch from the Harmony XB4 Series offers reliable and precise control for industrial applications. With spring return operation and a compact design, this switch is ideal for panel mounting where space is constrained. The rectangular actuator style ensures easy actuation and clear signaling.

Featuring 2 normally open and 1 normally closed contacts, this switch supports diverse control configurations. It operates efficiently at voltages up to 600 V DC/AC and withstands harsh environments with an operating temperature range from -40°C to 70°C. Its robust construction includes a chromium plated metal head and Zamak fixing collar providing durability and ease of maintenance.

Protection against water and contaminants is ensured with IP67, IP69, and IP69K ratings, making it suitable for wash-down environments and high-pressure cleaning. The switch complies with international standards including EN/IEC 60947 series, UL 508, CSA C22.2 No 14, and JIS standards, guaranteeing safe and reliable operation in industrial settings.

Its mechanical endurance of one million cycles and 10 A short circuit cartridge fuse enhance reliability for demanding automation, manufacturing, and safety control panels. The device's compact dimensions of 86 mm length, 53 mm width, and 33 mm height facilitate installation in tight panels.

Applications include use in control stations, emergency stop systems, automotive factories, warehouses, and automated production lines, emphasizing versatility across industries. The device is manufactured in France under stringent quality controls.

The switch is designed with a rectangular actuator style for precise and easy operation. It provides 2 normally open (NO) and 1 normally closed (NC) contacts for versatile control applications. Durable construction includes a chromium plated metal head with Zamak fixing collar ensuring long-lasting use.

The switch is rated for operation between -40°C and 70°C, suitable for varied industrial environments. Protection ratings include IP67, IP69, and IP69K ensuring resistance to water immersion and high-pressure cleaning. It complies with international standards such as EN/IEC 60947 series, UL 508, CSA C22.2, and JIS C8201, ensuring safety and reliability.

Designed for panel mounting, the compact size fits well in restricted spaces with dimensions 86 mm length, 53 mm width, and 33 mm height. Mechanical durability rated at 1,000,000 cycles supports extended service life in demanding applications.

The device includes a slow break contact configuration and a 10 A cartridge fuse for short circuit protection. Commonly used in control stations, E-Stop scenarios, automotive factories, warehouses, and automation lines. Explore more Schneider Electric industrial switches and components at EnvMart for reliable electrical control solutions.
