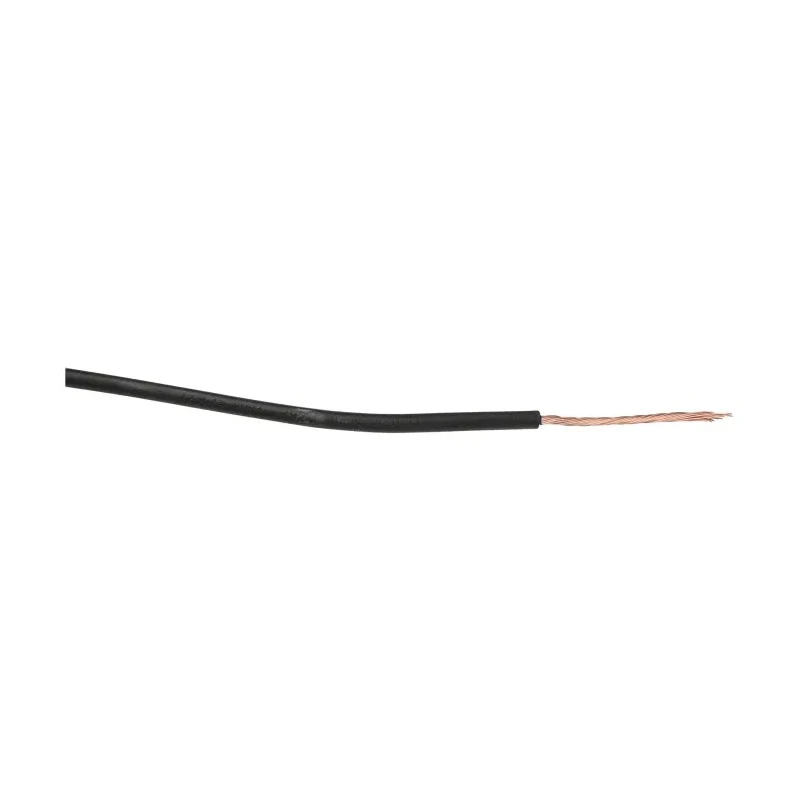

Lapp H05Z-K Series Black 0.75 mm² Low Smoke Zero Halogen Cross Linked Insulation Hook Up Wire 100 m 4725012

Free Delivery in India | Lowest Global Shipping Charges

Lapp H05Z-K Series Black 0.75 mm² Low Smoke Zero Halogen Cross Linked Insulation Hook Up Wire 100 m 4725012

Name: Lapp H05Z-K Series Black 0.75 mm² Low Smoke Zero Halogen Cross Linked Insulation Hook Up Wire 100 m 4725012
Brand: Lapp
SKU: 221107
Price: 142.26 USD
Availability: InStock



Category Hook Up Wire Brand Lapp Condition New

Specifications

Country of Origin	India
Voltage	300, 500V
Brand	Lapp
CROSS SECTIONAL AREA	0.75mm²
Model	4725012
Cable Length	100m
Series	H05Z-K
Outside diameter	2.8mm
Maximum Operating Temperature	90°C
Conductor Material	Bare Copper
Sub Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Material	Low Smoke Zero Halogen (LSZH) Cross Linked Insulation
Standards/Approvals	IEC 60332-1-2
Jacket Colour	Black

Key Features

This hook up wire has a voltage rating of 300 and 500 V.
The jacket is made of low smoke zero halogen cross linked insulation for fire safety.
The conductor is bare copper providing excellent conductivity.
The cable features a 2.8 mm outside diameter for compact routing.
It operates in temperatures ranging from -40°C to 90°C.
The wire is flame retardant in accordance with IEC 60332-1-2 standards.
The tight bending radius of 11.2 mm enables ease of installation around corners.
Suitable for electrical, automation, and industrial applications requiring reliable signal and power transmission.

Product Description

Lapp 4725012 Hook Up Wire is a high-quality electrical wire designed for professional use in automation, electrical installations, and industrial control systems. This hook up wire features a 0.75 mm² bare copper conductor with a black low smoke zero halogen (LSZH) cross linked insulation jacket that ensures safety and durability. The wire has a voltage rating of 300 and 500 V, making it versatile for various applications.

Constructed with flame retardant properties according to IEC 60332-1-2 and EN 60332-1-2 standards, the wire ensures compliant fire behavior, reducing fire hazards in installations. Its robust LSZH cross linked insulation provides excellent thermal and chemical resistance, allowing it to operate safely in temperatures from -40°C up to 90°C.

The cable has an outside diameter of 2.8 mm and a tight minimum bending radius of 11.2 mm, which assists in flexible routing around corners and tight spaces without damaging the wire structure. The bare copper conductor guarantees minimal signal loss and excellent electrical conductivity, suitable for connecting devices in electrical, automation, and manufacturing setups.

This hook up wire is part of the H05Z-K series, known for reliability and compliance with IEC standards, and is suitable for use in signal and power wiring in control cabinets, electrical panels, and machinery. The 100-meter length spool provides ample cable for medium to large installations.

This hook up wire has a voltage rating of 300 and 500 V. The jacket is made of low smoke zero halogen cross linked insulation for fire safety. The conductor is bare copper providing excellent conductivity. The cable features a 2.8 mm outside diameter for compact routing.

It operates in temperatures ranging from -40°C to 90°C. The wire is flame retardant in accordance with IEC 60332-1-2 standards. The tight bending radius of 11.2 mm enables ease of installation around corners. Suitable for electrical, automation, and industrial applications requiring reliable signal and power transmission.

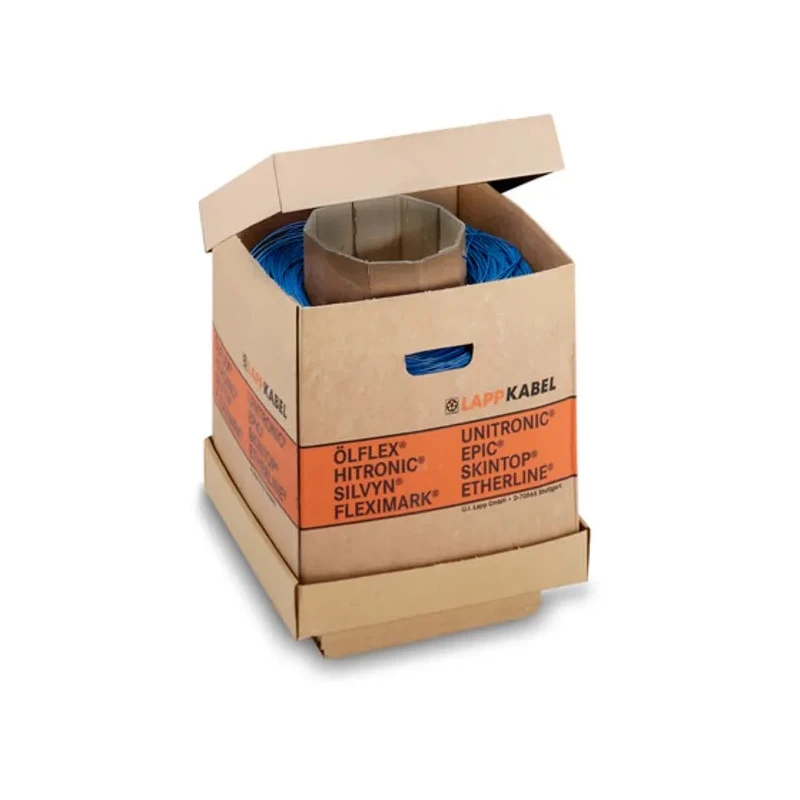

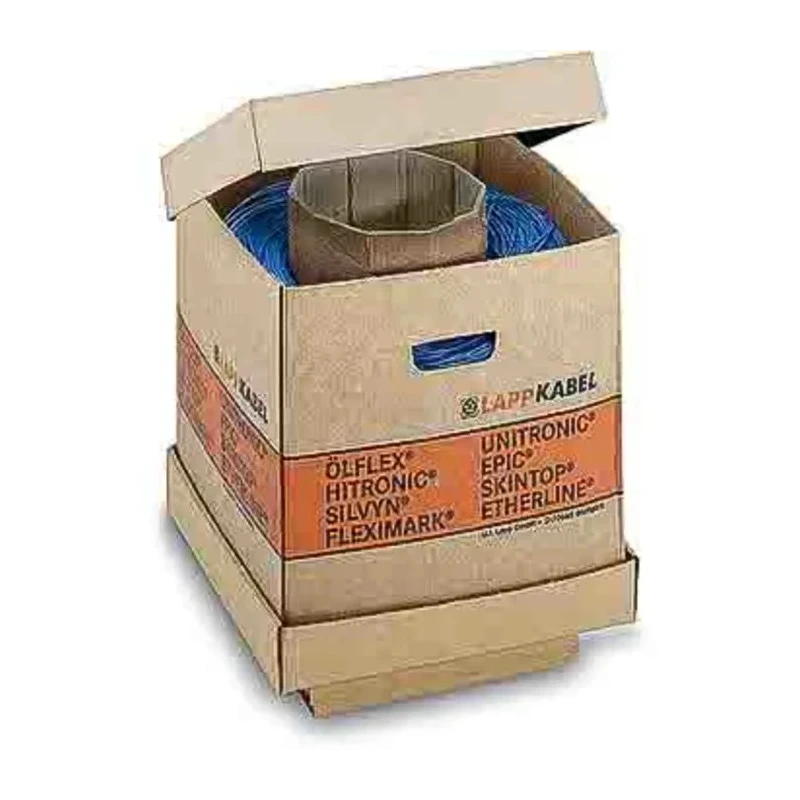

Set contains 1 Pc Lapp H05Z-K Series Black 0.75 mm² Hook Up Wire, 100 m spool.

This product is ideal for electrical engineers, panel builders, and industrial maintenance professionals. Explore the full range of cables and wires on EnvMart for your next project.
