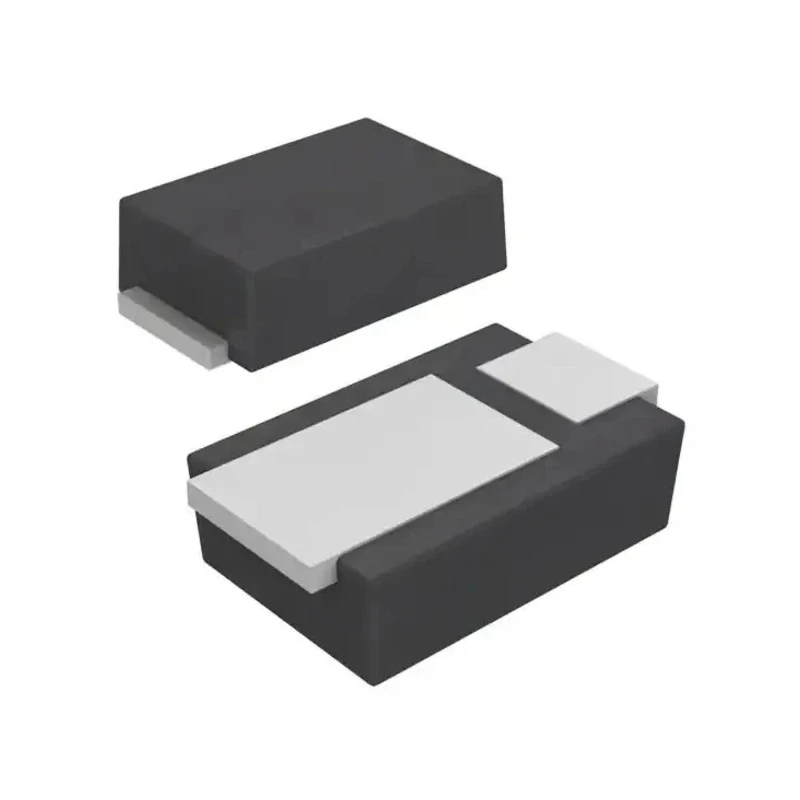

ROHM 30 V 1 A Surface Mount Schottky Barrier Rectifier Diode PMDE Package RBR1VWM30ATR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RBR1VWM30ATR |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | PMDE |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.48V |
Key Features
- This diode is enclosed in a compact PMDE surface mount package suitable for automated PCB assembly.
- Features low forward voltage drop of 0.48 V, enhancing efficiency in power conversion applications.
- Operates reliably at temperatures ranging from -55°C to 150°C for industrial environments.
- Designed with a single diode configuration and two pins for ease of circuit integration.
- Meets RoHS compliance ensuring environmentally friendly manufacturing standards.
- Ideal for use in power supplies, voltage clamping, and rectification in electronic devices.
- Supports a peak non-repetitive forward surge current up to 30 A for transient conditions.
Product Description
The ROHM RBR1VWM30ATR is a high reliability Schottky barrier rectifier diode designed for surface mount applications using the PMDE package. It provides a continuous forward current of 1 ampere and can withstand a maximum repetitive peak reverse voltage of 30 volts. Its low forward voltage drop of 0.48 volts makes it suitable for efficient power rectification and voltage clamping tasks.
This diode features a robust design enabling operation from -55°C up to 150°C, thus conforming to a wide range of industrial and electronic operating conditions. Its two-pin single diode configuration simplifies PCB layout and integration into power and discrete semiconductor circuits.
Compliant with RoHS standards, the RBR1VWM30ATR diode supports environmentally conscious electronic manufacturing. It is ideal for use in power supplies, automotive electronics, and other high-speed switching applications where low forward voltage and high surge current capability are required.
This diode is housed in a small footprint PMDE surface mount package, improving assembly efficiency in mass production. The device supports a peak non-repetitive forward surge current of 30 A, ensuring robustness against transient surges.
Its peak reverse current is as low as 50 μA, providing effective blocking performance in reverse polarity conditions. ROHM ensures strict quality control and high reliability for extended lifecycle in demanding electronic environments.
The diode’s wide operating temperature range and low forward voltage are advantageous for thermal management and power savings. This rectifier is well-suited for industrial, automotive, power management, and consumer electronics sectors requiring dependable and efficient Schottky diode performance.
Explore the broader range of Schottky Diodes & Rectifiers at EnvMart for compatible components tailored to your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage for the RBR1VWM30ATR diode is 30 volts.
This Schottky diode has a continuous forward current rating of 1 ampere.
The forward voltage drop for this diode is 0.48 volts, which enhances efficiency in power conversion applications.
This diode operates reliably within a temperature range of -55°C to 150°C.
The diode is housed in a PMDE surface mount package, suitable for automated PCB assembly.
The peak non-repetitive forward surge current for this model is up to 30 A, making it robust against transient conditions.
This diode features a two-pin single diode configuration, simplifying circuit integration.
This diode meets RoHS compliance, ensuring environmentally friendly manufacturing standards.
The peak reverse current for the RBR1VWM30ATR is as low as 50 μA, providing effective blocking performance in reverse polarity conditions.
This model is a Schottky barrier rectifier diode, designed for efficient power rectification and voltage clamping tasks.
The RBR1VWM30ATR is ideal for use in power supplies, automotive electronics, and high-speed switching applications.
The diode is manufactured in India.
