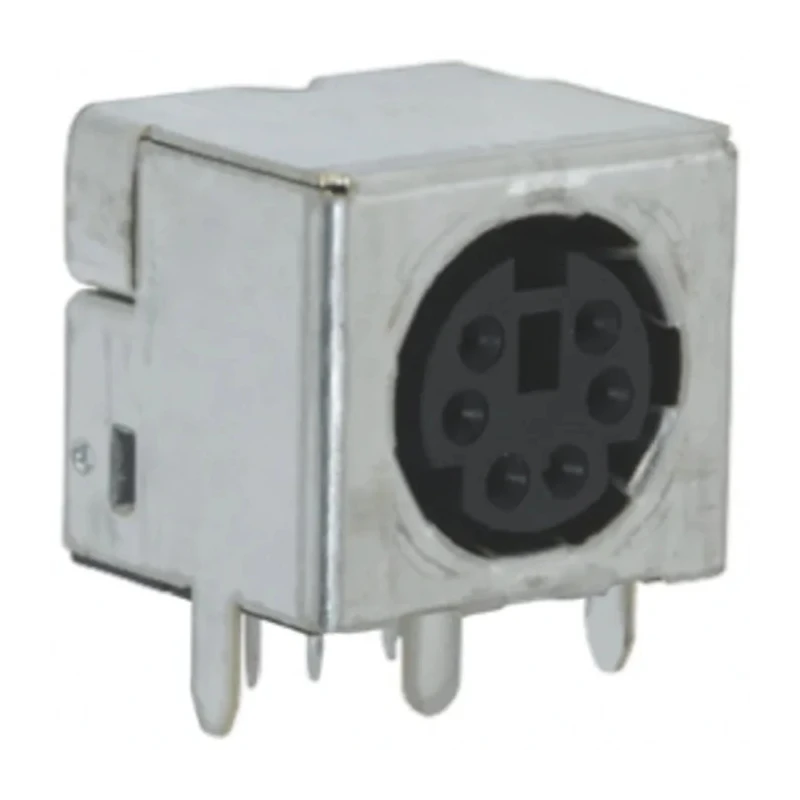

TE Connectivity Mini DIN 6 Pole Right Angle Miniature DIN Socket 1A 30V AC Keyed Through Hole Female 5749265-1

TE Connectivity 5749265-1 Mini DIN 6 Pole Right Angle Miniature DIN Socket is a high-quality circular connector designed for electronic applications requiring secure and reliable connections on printed circuit boards. It supports a current rating of 1 amp and a voltage rating of 30 volts AC, making it suitable for low-power signal transmission and control circuits.

This DIN Socket features a female, keyed configuration with a right angle orientation to optimize PCB layout space. The connector housing is made from durable thermoplastic material rated 94V-0 ensuring resistance to heat and flame, and is compatible with IR reflow soldering processes.

The contact materials consist of copper alloy with a gold over nickel plating, ensuring excellent conductivity and corrosion resistance. The shell is shielded with tin over nickel plating to reduce electromagnetic interference, critical in sensitive electronic environments.

These connectors operate efficiently in a broad temperature range from -55°C minimum to 105°C maximum, accommodating various industrial and commercial environments. The keyed and polarized design prevents incorrect mating, enhancing reliability and connection safety.

Typical applications include use in instrumentation, communication devices, and other industrial electronic systems requiring compact yet robust miniature circular DIN connectors. Its through hole mounting style secures the connector firmly to the PCB for stable mechanical and electrical performance.

Designed for a current rating of 1 ampere and voltage of 30 volts AC. Features a keyed, female connector with right angle orientation. Equipped with gold over nickel plated copper alloy contacts for optimal conductivity.

Constructed with a thermoplastic housing rated at 94V-0 for flame resistance. Suitable for through hole solder termination on printed circuit boards. Operates reliably between -55°C to 105°C temperature range. Comes with tin over nickel shielding to minimize interference.

Polarized and keyed design prevents mismating to ensure connection integrity. Used extensively in electronic, industrial, and instrumentation applications requiring miniature circular DIN connectors. Compact miniature connector size facilitates reliable connections in limited space installations.

Browse our selection of TE Connectivity DIN connectors at EnvMart for trusted connectivity solutions tailored to electronic assembly and industrial automation.
