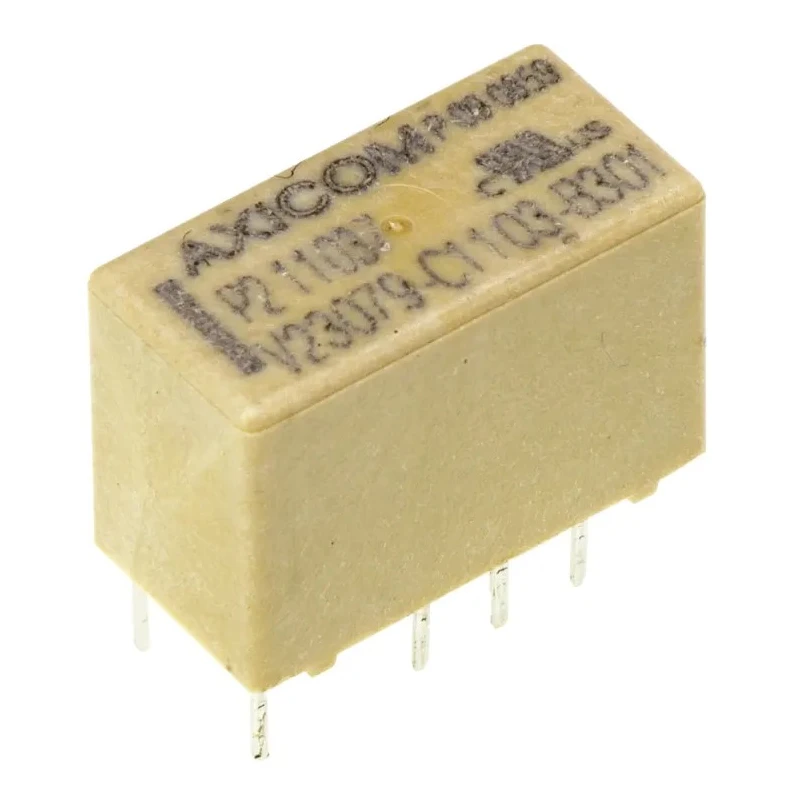

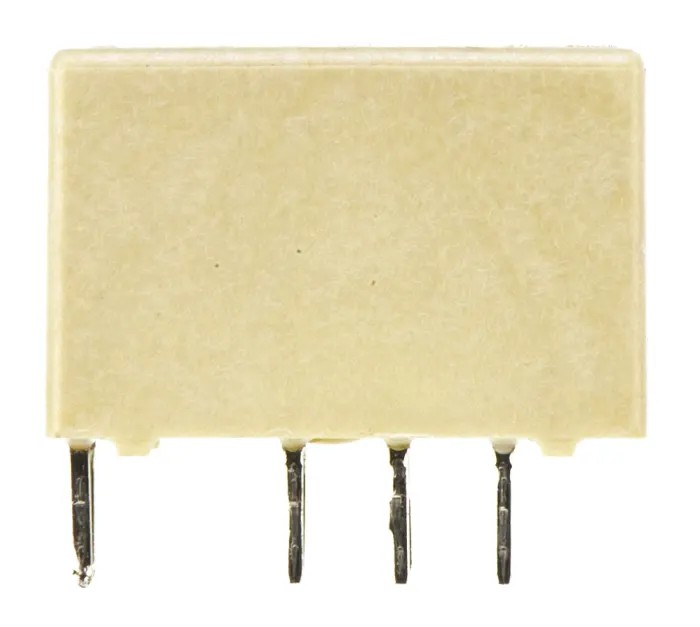

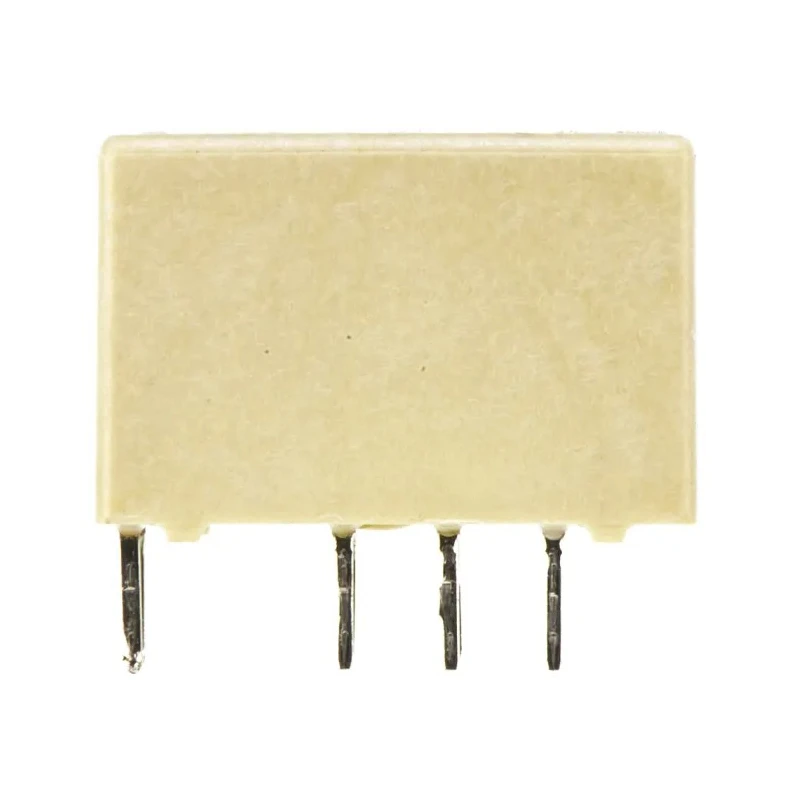

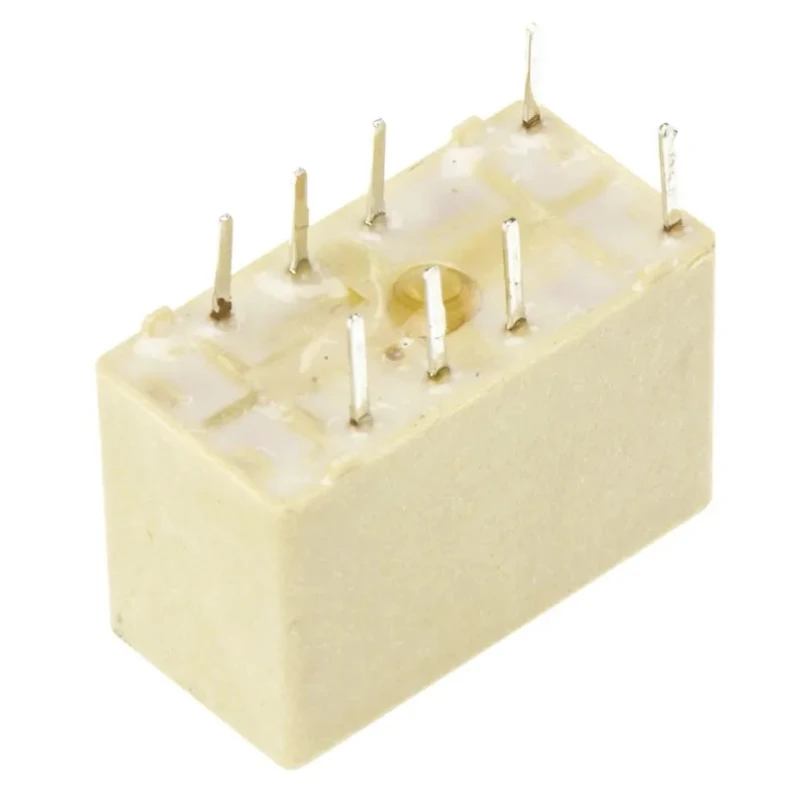

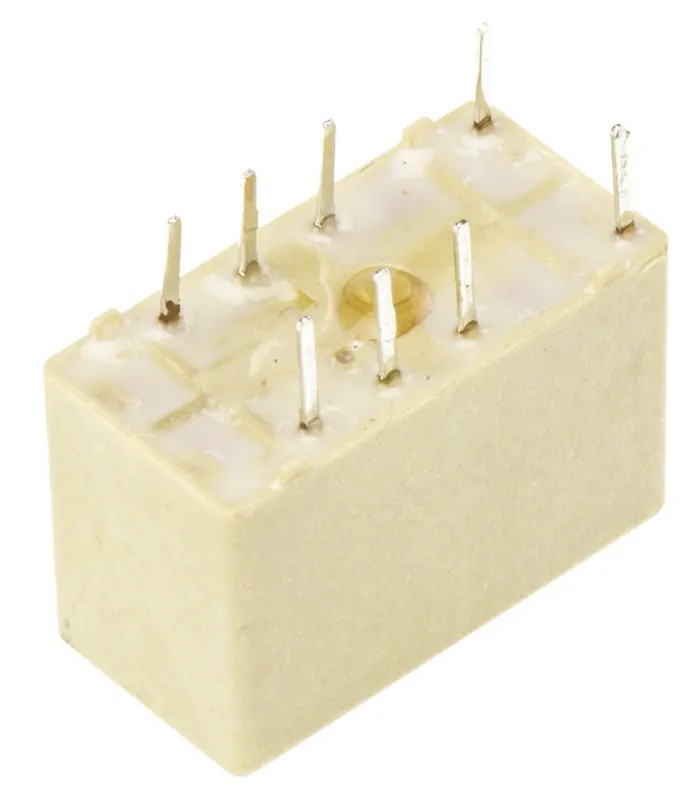

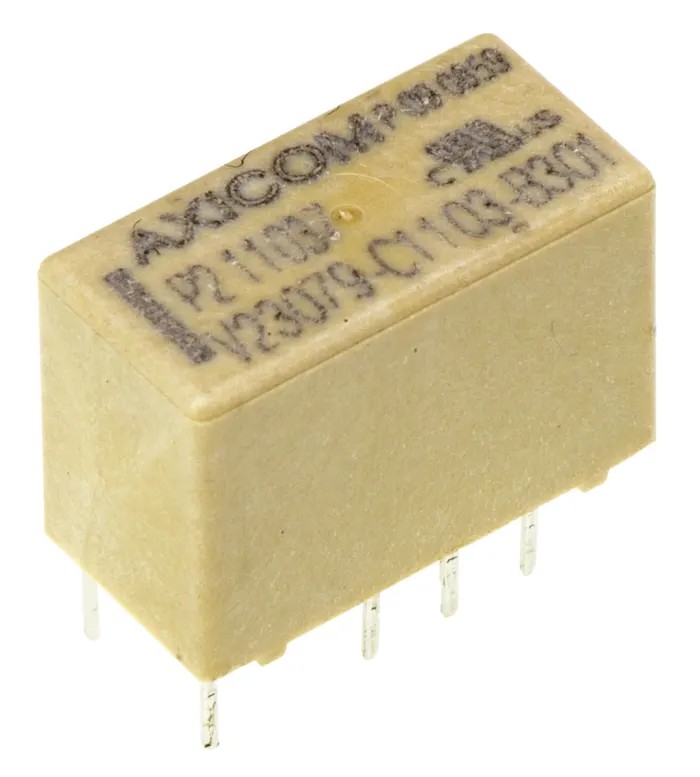

TE Connectivity PCB Signal Relay 12V DC Coil 2A DPDT V23079C1103B301

TE Connectivity V23079C1103B301 PCB Signal Relay is a high sensitivity, low power miniature relay designed for reliable switching in electronic and telecommunications equipment. With a 12V DC coil and 2A switching current, this DPDT contact configuration relay is ideal for applications requiring precise signal control and space-saving form factors.

Part of the Axicom P2 V23079 Series, these relays feature bifurcated gold-plated contacts providing excellent conductivity and durability. The relay coil consumes only 140mW, thanks to the coil resistance of 1029Ω, which contributes to energy-efficient operation suitable for long-term use in consumer electronics, communications, medical devices, and automotive equipment.

The relay's construction complies with RoHS standards and offers an IP67 rating, allowing for immersion cleaning and ensuring reliability under demanding conditions. It supports switching voltages up to 250V AC and 220V DC, fulfilling a broad range of industrial, laboratory, and commercial applications where compact, dependable relays are critical.

The operating temperature range from -40°C to 85°C accommodates various environmental conditions, making this relay suitable for use in harsh or variable climates. Its small size - 14.5mm in length, 9.8mm height, and 7.2mm width - allows easy integration on printed circuit boards with solder-type terminals designed for secure mounting.

This miniature relay features a slim, low-profile design ideal for space-saving in PCB mounts. It utilizes bifurcated, gold-plated contacts ensuring high reliability and low contact resistance. The coil power consumption is 140mW with a coil resistance of 1029Ω.

Operating temperature ranges from -40°C to 85°C for robust industrial performance. It meets RoHS compliance and has IP67 rating, allowing immersion cleaning and high insulation resistance. The relay supports switching voltages of up to 250V AC and 220V DC.

Its compact dimensions are 14.5mm length, 9.8mm height, and 7.2mm width. Terminal type is designed for solder mounting on PCB.

Applicable uses include telecommunications equipment such as PABX and VOIP systems, consumer electronics like set top boxes and HiFi devices, control and office equipment, as well as medical and automotive applications requiring reliable signal relays.
