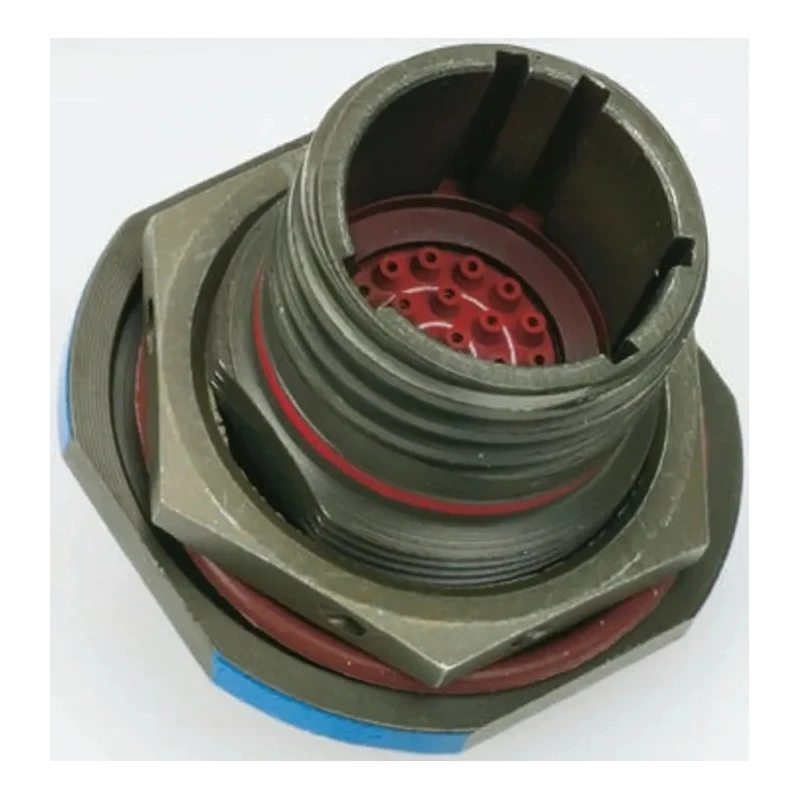

Amphenol Socapex Straight 6 Way Panel Mount MIL Spec Circular Connector Female Contacts Shell Size 9 Screw TV07RW0935S

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Socapex Straight 6 Way Panel Mount MIL Spec Circular Connector Female Contacts Shell Size 9 Screw TV07RW0935S

Name: Amphenol Socapex Straight 6 Way Panel Mount MIL Spec Circular Connector Female Contacts Shell Size 9 Screw TV07RW0935S
Brand: Amphenol Socapex
SKU: 219581



Category Mil Spec Circular Connector Brand Amphenol Socapex Condition New

Specifications

Country of Origin	India
Voltage	550V dc
Brand	Amphenol Socapex
Orientation	Straight
Model	TV07RW0935S
Mount Type	Panel Mount
Termination Type	Crimp
Maximum Operating Temperature	175°C
Minimum Operating Temperature	-65°C
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Female
Connector Gender	Female
Shell Size	9
Military Standard	MIL-DTL-38999
Mating Type	Screw Coupling
Shell Plating	Olive Drab Cadmium

Key Features

Includes six female contacts for reliable signal transmission.
Panel mount design ensures secure installation with screw coupling.
Shell size 9 provides robust housing with olive drab cadmium plating.
Rated for 550V DC voltage and operating temperatures from -65°C to 175°C.
Gold plated contacts support corrosion resistance and conductivity.
Termination method is crimp type for secure contact retention.
Meets MIL-DTL-38999 military standard for rugged environments.
Aluminium shell construction for durability and EMI shielding.

Product Description

Amphenol Socapex TV07RW0935S is a MIL-DTL-38999 Series III standard straight 6 way panel mount circular connector with female contacts and screw coupling. Designed for the harshest environments, this connector is ideal for aerospace, military, industrial, and other demanding applications requiring high reliability and robustness.

The connector features an aluminium shell with olive drab cadmium plating to provide excellent corrosion resistance and durability. Its six female contacts are gold plated to ensure superior conductivity and resistance against oxidation. The panel mount style with jam nut receptacle and screw coupling secures the connection firmly, making it suitable for vibration-prone conditions.

Rated for 550V DC, this connector operates reliably between temperatures of -65°C and 175°C, accommodating a wide range of environmental conditions. The crimp termination type allows for strong and secure cable attachment, improving long-term performance.

The TV07RW0935S model belongs to the TV series jam nut receptacles and is intermountable with MIL-DTL-38999 Series I connectors due to identical panel drilling dimensions, enabling easy integration and replacement.

Six female contacts designed to premium military specifications. Panel mount with screw coupling for secure and reliable connections. Durable aluminium shell with olive drab cadmium plating. Gold plated contacts for excellent conductivity and corrosion resistance.

Wide operating temperature range from -65°C to 175°C. Rated for 550V DC voltage applications. Crimp termination style enables strong cable connections. Compatible with MIL-DTL-38999 Series I panel configurations. Robust design suitable for aerospace, military, and industrial use.

Provides improved EMI shielding with shell-to-shell metal bottoming feature.

This connector is a reliable and rugged solution for critical applications in industrial, aerospace, defense, automotive, and communication systems where MIL-DTL-38999 compliance is a requirement.
