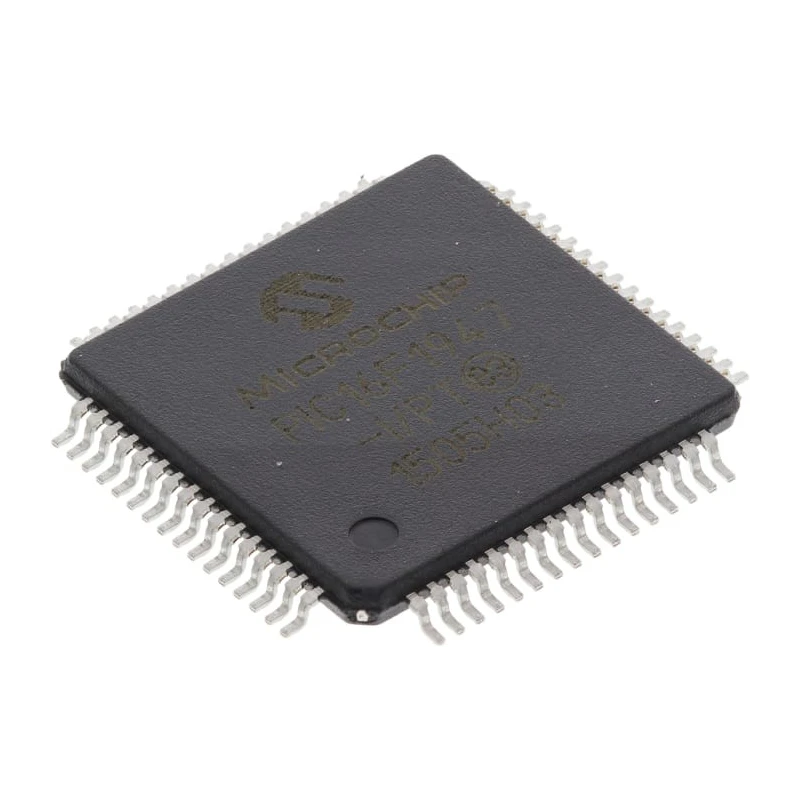

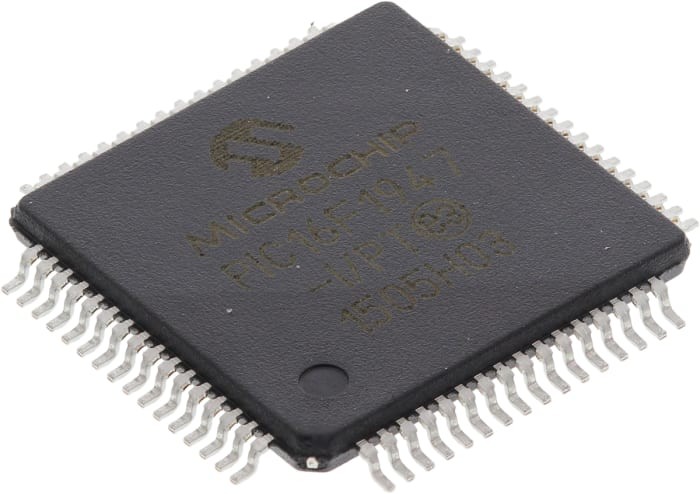

Microchip PIC16F1947-I/PT 8-bit PIC Microcontroller 32 MHz 28kB FLASH 64-Pin TQFP

Microchip PIC16F1947-I/PT is a high-performance 8-bit PIC microcontroller featuring a 32 MHz maximum clock frequency and 28kB FLASH program memory, packaged in a 64-pin TQFP surface-mount package. Ideal for embedded system designs, this microcontroller integrates a range of peripherals for advanced control and sensing applications.

The MCU is built on Microchip's enhanced mid-range core architecture with a 16-level deep hardware stack and supports 49 instructions, delivering up to 8 MIPS. It provides 1kB of RAM and 256 bytes of data EEPROM, enabling efficient data storage and program execution.

Operating voltage ranges from 1.8V to 5.5V with a maximum power dissipation of 800mW. It operates reliably across a broad temperature spectrum from -40°C to +85°C, making it suitable for industrial and automotive environments. The device features 54 programmable I/O pins, supporting SPI, I2C, and EUSART interface protocols for diverse communication needs.

Integrated peripheries include an LCD controller capable of managing 184 segments, seventeen 10-bit ADC channels, 17 mTouch capacitive sensor channels, two CCP modules, three ECCP modules, three analog comparators, four 8-bit timers, and one 16-bit timer, enhancing its versatility for embedded applications.

Additional embedded features consist of nanoWatt XLP low power technology for energy efficiency, power-on reset, brown-out reset, watchdog timer, and in-circuit serial programming and debugging capabilities. This MCU family is designed to support automotive standards and offers low-voltage programming compatibility.

This microcontroller is fit for use in industrial automation, consumer electronics, automotive control systems, and various embedded applications demanding reliable performance and flexibility. It supports engineers and designers with a robust solution in a compact, scalable package.

High-performance 8-bit PIC MCU architecture with 49 instructions and 16-level hardware stack. Includes 1kB RAM and 256 bytes Data EEPROM for robust data handling. Operates within -40°C to +85°C temperature range for industrial applications.

Supports SPI, I2C, and EUSART interfaces for versatile communication. Features 54 programmable I/O pins for flexible peripheral integration. Integrated peripherals include LCD controller, ADCs, capacitive touch sensor, timers, comparators, and PWM modules.

Low power consumption with nanoWatt XLP technology. Suitable for automotive, industrial, and consumer electronics designs requiring reliable microcontroller solutions. Explore more in our Microcontroller category for diverse application needs.
