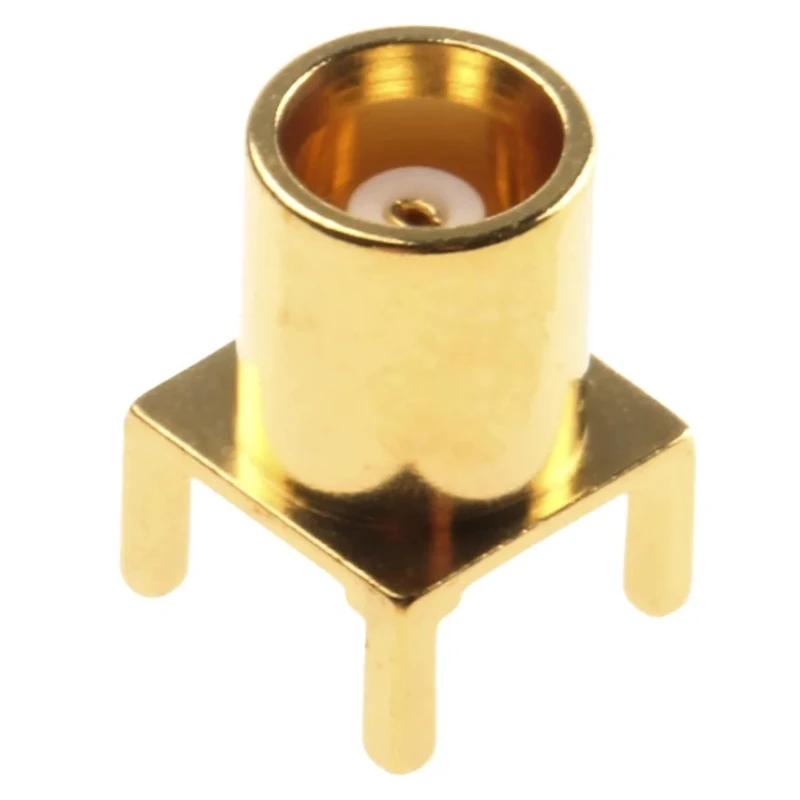

TE Connectivity Coaxial Connector Through Hole MCX 50 Ω Straight Body Solder 829558-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 829558-4 |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Termination Type | Solder |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Coaxial Connector Type | MCX |
| Body Plating | Gold over Nickel |
Key Features
- Offers high frequency performance up to 6 GHz for video and broadcast applications.
- Body plating of gold over nickel enhances durability and corrosion resistance.
- Contact made of beryllium copper with gold over nickel plating for excellent conductivity.
- Designed as a lightweight microminiature snap-coupling connector with space-saving benefits over SMB equivalents.
- Ideal for PCB mounting with reliable quick connect and disconnect functionality.
- Fully mateable with the industry standard MCX family connectors.
- Suitable for use in electronic components and power connector applications.
Product Description
TE Connectivity 829558-4 Coaxial Connector Through Hole MCX is a lightweight, microminiature snap-coupling connector designed to efficiently connect in dense electronic packaging layouts. It features a through hole mount type for PCB installation, a straight body orientation, and supports an impedance of 50 Ω with frequency operations up to 6 GHz, making it highly suitable for video and broadcast applications.
The connector's body plating of gold over nickel ensures enhanced corrosion resistance and durability in demanding environments, while the contacts are fabricated from beryllium copper and plated with gold over nickel to provide superior electrical performance and reliability. Its solder termination type assures secure physical and electrical contact with PCB pads.
This MCX connector series offers a reliable quick connect and disconnect function that allows for efficient maintenance and assembly in industrial, laboratory, manufacturing, and communications equipment. Its compact size offers space savings compared to SMB connectors, making it suitable for applications requiring high density.
Designed to be fully mateable with industry standard MCX connectors, this model supports a straight body configuration which facilitates PCB socket applications. It is optimized for use in electronics component manufacturing where high-frequency performance and connector integrity are critical.
High frequency performance with operating bandwidth up to 6 GHz. Gold over nickel plating on body and contacts for longevity. Beryllium copper contact material ensures excellent conductivity. Through hole mount type suitable for PCB through-hole installation.
Solder termination type provides secure electrical connection. Compatible with industry standard MCX connectors. Compact design enables space-efficient PCB layouts.
This TE Connectivity connector is ideal for integration in electronic and power connector systems used in communication, broadcast, laboratory, and industrial equipment. Explore the Electronics Components category at EnvMart for quality coaxial Connectors and related products to enhance your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector supports an operating frequency of up to 6 GHz, making it suitable for high-frequency applications such as video and broadcast.
It features a through hole mount type, which is designed for PCB installation.
The impedance of this connector is rated at 50 Ω, which is standard for many RF applications.
The contacts are made of beryllium copper and are plated with gold over nickel for improved conductivity and reliability.
The body plating of gold over nickel enhances durability and corrosion resistance, ensuring reliable performance in various environments.
This model uses a solder termination type, providing secure physical and electrical contact with PCB pads.
It is ideal for use in electronic components and power connector applications, particularly in communication, broadcast, laboratory, and industrial equipment.
Specific dimensions are not provided, but it is designed as a lightweight microminiature connector, optimizing space in dense layouts.
The country of origin for this connector is India.
Its compact design allows for space-saving benefits compared to SMB equivalents, making it suitable for high-density PCB layouts.
This connector has a straight body orientation, which facilitates easy installation and connection in various setups.
