SMC Pneumatic Guided Cylinder 6mm Bore Aluminium Alloy Body Double Rod 20mm Stroke CXSM6-20

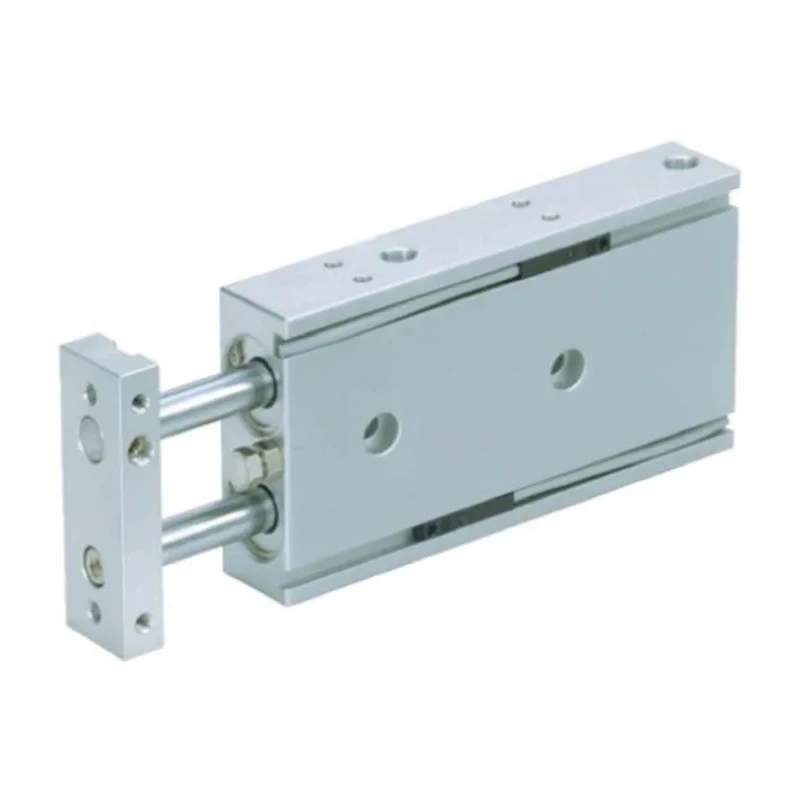

SMC CXSM6-20 Pneumatic Guided Cylinder is a precision-engineered actuator featuring a 6mm bore and 20mm stroke, designed to support industrial automation and fluid power system requirements. This cylinder is part of the CXS series known for its dual-rod design that provides high non-rotational accuracy, essential for pick-and-place operations in manufacturing and handling equipment.

The cylinder body is constructed from high-quality aluminium alloy, which offers an excellent strength-to-weight ratio ensuring durability while remaining lightweight for easy system integration. The double rod configuration combined with rubber cushioning effectively reduces mechanical shocks and noise during operation, enhancing equipment lifespan and reliability.

Guide types consist of both ball bearing and slide bearing options providing smooth and stabilized linear motion, critical in precision industrial processes. The cylinder operates optimally within a pressure limit of 0.7 MPa and within a temperature range of -10°C to 60°C, making it suitable for a variety of industrial and manufacturing environments.

Compact with dimensions measuring 78.5mm in length, 37mm in height, and 16mm in width, and weighing 95 grams, the CXSM6-20 is engineered for integration into space-constrained systems. Its integral stroke adjustment feature allows precision control by setting the stroke length to less than the standard stroke by 5mm.

This pneumatic guided cylinder is designed to be used with non-lubricated, filtered compressed air, which helps ensure contamination-free operation and extends the service life of the actuator.

Durable aluminium alloy body offering strength and lightness. Double rod design enhancing non-rotational accuracy. Rubber cushioning for impact absorption and noise reduction. Ball and slide bearing guides for smooth and reliable movement.

Maximum operating pressure of 0.7 MPa for efficient pneumatic force. Wide operating temperature range from -10°C to 60°C. Compact size with 78.5mm length for versatile applications. Lightweight at 95 grams facilitating easy mounting and handling.

Integral stroke adjustment capability for precise motion control. Designed for non-lubricated, filtered compressed air systems.

This product is ideal for industrial automation, manufacturing lines, packaging machines, and other mechanical systems requiring precise guided pneumatic actuation. SMC’s reputation in pneumatic components assures quality and reliability. Explore the range of Pneumatic Guided Cylinders in the Industrial Tools & Equipment category at EnvMart for comprehensive system solutions.
