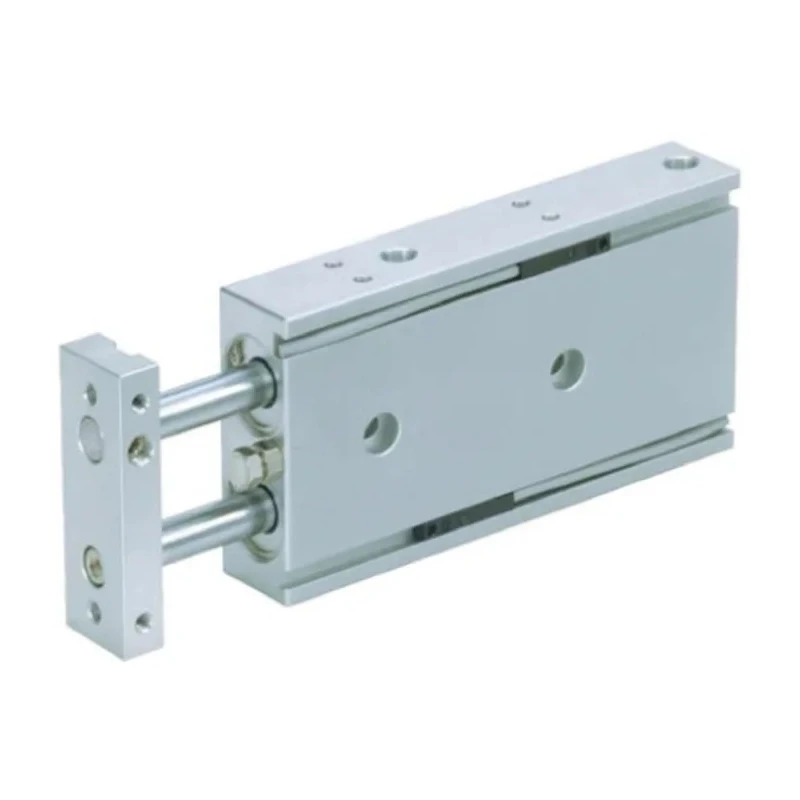

SMC Pneumatic Guided Cylinder 10mm Bore, CXS Series, Dual Rod, 50mm Stroke, 0.7 Mpa Maximum Pressure CXSM10-50

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Guided Cylinder 10mm Bore, CXS Series, Dual Rod, 50mm Stroke, 0.7 Mpa Maximum Pressure CXSM10-50



Category Pneumatic Guided Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Maximum Operating Pressure	0.7 Mpa
Height	17mm
Length	122mm
Model	CXSM10-50
Gross Weight	230g
Width	46mm
Series	CXS
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	50mm
Bore Diameter	10mm
Rod Type	Double Rod
Cushioning Type	Rubber
Guide Type	Ball Bearing, Slide Bearing
RS PRO Pneumatic Guided Cylinder - 50 mmRS Stock No.	180-316Brand: RS PRO

Key Features

Operates at a maximum pressure of 0.7 Mpa with rubber cushioning for smooth action.
Equipped with double rods and ball bearing plus slide bearing guide types for high non-rotational accuracy.
Suitable for operating temperatures from -10°C to 60°C.
Compact dimensions of 122mm length, 46mm width, and 17mm height optimize installation space.
The 230g lightweight cylinder is designed for use with filtered, non-lubricated compressed air.
Integral stroke adjustment allows fine-tuning to standard stroke minus 5mm.
Recessed for auto switches and includes buffer cushioning for safe operation.
Manufactured in China to precision standards without specific approvals listed.

Product Description

SMC CXSM10-50 Pneumatic Guided Cylinder is a precision double-rod guided cylinder featuring a 10mm bore diameter and a 50mm stroke length, designed for robust industrial use.

Part of the CXS Series, these cylinders integrate ball bearing and slide bearing guides to ensure exceptional non-rotational accuracy, making them ideal for applications requiring precise positioning such as pick-and-place tasks in automated manufacturing or assembly lines.

The cylinder operates at a maximum pressure of 0.7 Mpa using filtered, non-lubricated compressed air and is equipped with rubber cushioning for effective shock absorption during operation.

Operating temperature ranges from -10°C to 60°C allow for versatile deployment in various industrial environments, including manufacturing, automation, and fluid power systems. Its compact form factor with dimensions 122mm (Length) x 46mm (Width) x 17mm (Height) and low weight of 230g facilitate easy installation and integration within pneumatic systems.

Additional features include integral stroke adjustment capability, a recess designed for auto switches, and buffer cushioning that enhances durability and safety of operation.

These cylinders are manufactured in China and conform to no special listed standards or approvals, appropriate for numerous industrial, laboratory, and commercial automation applications.

Operates at 0.7 Mpa maximum pressure providing robust force output. Double rod and ball/slide bearing guide ensure stability and precision. Rubber cushioning offers noise reduction and extended component life. Suitable for temperature range from -10°C to 60°C for diverse environments.

Compact size supports versatile mounting options in tight spaces. Includes recess for mounting auto switches enhancing automation control. Manufactured in China with quality focus. Explore similar Pneumatic Guided Cylinders and components in the Pneumatics & Hydraulics category at EnvMart for advanced fluid power solutions.
