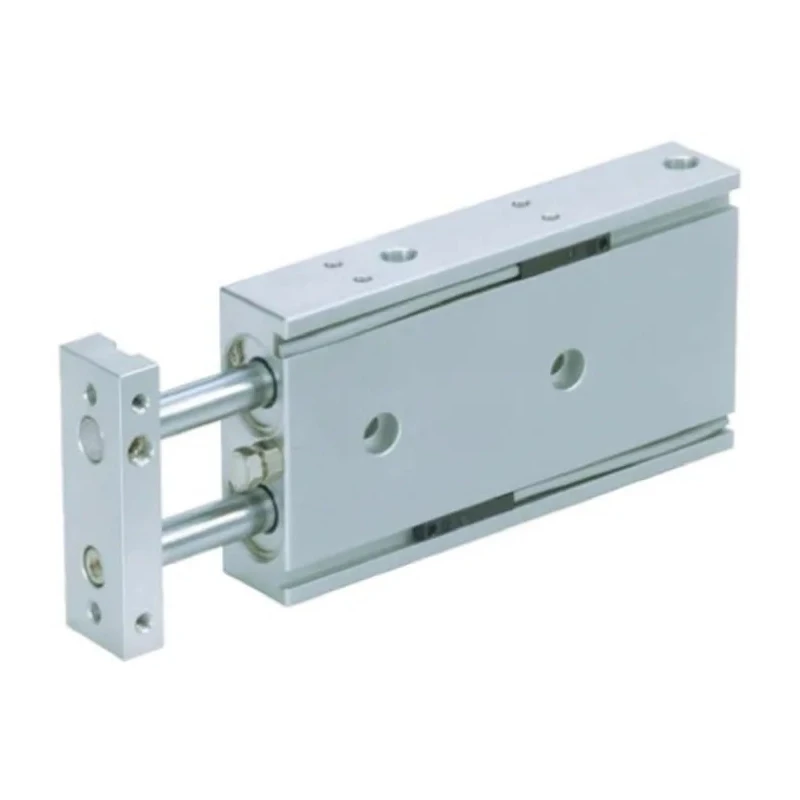

SMC Pneumatic Guided Cylinder CXS Series 6 mm Bore, 10 mm Stroke Length, Dual Rod CXSM6-10

SMC CXSM6-10 Pneumatic Guided Cylinder from the CXS Series is designed for precise motion control in industrial pneumatic applications. With a 6 mm bore diameter and a 10 mm stroke length, this dual-rod guided cylinder offers enhanced stability and high non-rotational accuracy, essential for pick-and-place tasks in automated manufacturing environments.

The cylinder supports a maximum operating pressure of 0.7 MPa and operates efficiently within a temperature range of -10°C to 60°C, making it suitable for diverse industrial conditions. Rubber cushioning absorbs impact to extend the lifespan of the cylinder and protect connected equipment.

Featuring a combination of slide bearing and ball bearing guides, the CXSM6-10 ensures smooth linear motion with minimal wear. The dual port locations and integral stroke adjustment feature (standard stroke less 5 mm) allow flexible installation and precise positioning. The built-in magnetic sensing recess accommodates auto switches for advanced operational feedback.

Compact in size with dimensions of 37 mm height, 16 mm width, and 68.5 mm length, the cylinder integrates easily into machine assemblies where space is constrained. Weighing approximately 81 grams, it provides efficient performance without excessive load.

Applications include industrial automation, laboratory equipment, manufacturing lines, conveyor systems, and pneumatic tooling. The robust construction and high operating standards support use in fluid power tools and mechanical machinery environments.

Dual rod design improves non-rotational accuracy and stability. Rubber cushioning optimizes impact absorption. Slide and ball bearing guides for durable smooth motion. Max operating pressure of 0.7 MPa for reliable actuation.

Temperature operating range from -10°C to 60°C. Compact and lightweight design supports tight installations. Magnetic sensing recess for auto switch compatibility. Manufactured in China, aligning with industrial quality standards.

This Pneumatic Guided Cylinder is a reliable choice for efficient and precise pneumatic actuation in industrial tools and equipment. Explore more from SMC and related pneumatic cylinders and actuators in our comprehensive EnvMart catalog to meet your industrial automation needs.
