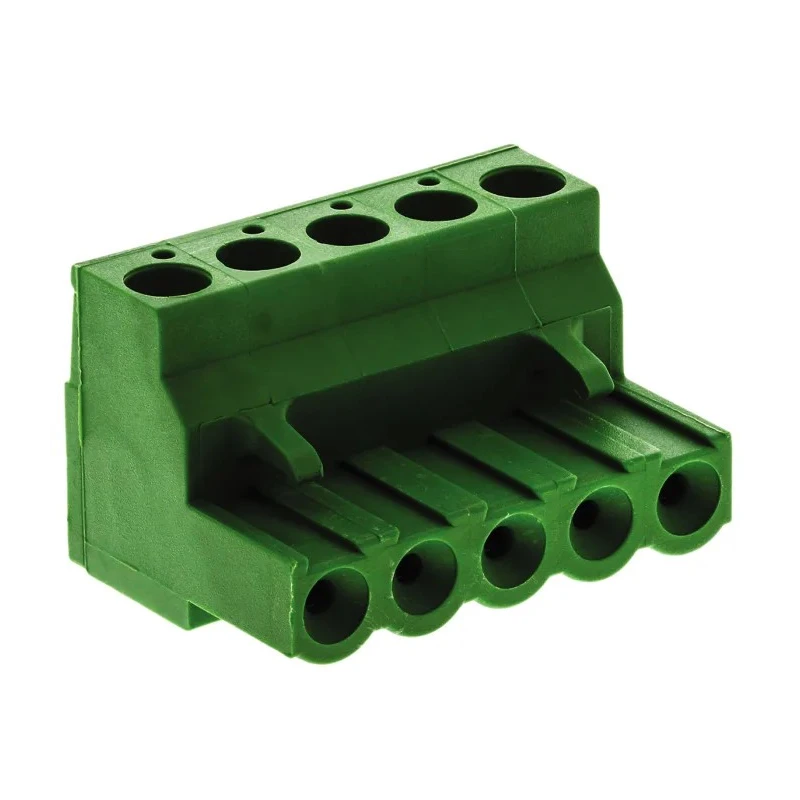

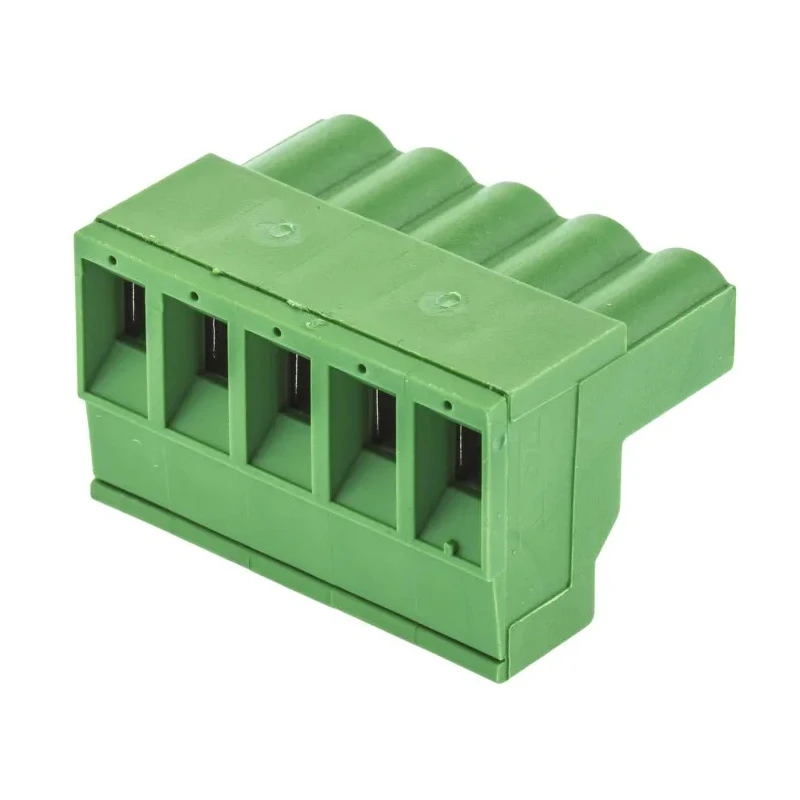

TE Connectivity Buchanan Series 5-Contact 5.08 mm Pitch 1 Row PCB Terminal Block 796634-5

TE Connectivity 796634-5 Buchanan Series PCB Terminal Block is engineered as a 5-contact, 5.08 mm pitch, single-row pluggable terminal block designed for printed circuit board applications requiring secure wire connections and reliable electrical performance.

This terminal block supports a continuous current of 15A and a voltage rating of 300V AC, providing dependable performance in moderate power industrial and electronic systems.

The connector accepts wire sizes ranging from 30 AWG to 12 AWG (0.05 mm² to 3 mm²), accommodating a wide range of wiring requirements. The wire connection method uses screw terminals with M3 screws for enhanced security and ease of installation.

The housing is constructed from green polyamide 6.6 glass-filled material, offering mechanical strength and resistance to corrosion and environmental factors, making it suitable for use even in corrosive environments.

Designed as a right angle mount with side stackable capability and a rising clamp design for side entry terminals, it allows compact PCB layouts and efficient terminal stacking. It is supplied with open screws to reduce assembly time during installation.

This product does not carry specific UL or CSA approvals but delivers high mechanical and electrical durability for many industrial, manufacturing, and commercial electronic applications.

The 5-contact configuration in a single row and male connector gender enables easy mating with compatible terminal blocks, enhancing system modularity and serviceability. Typical applications include electronic circuit manufacturing, control cabinets, instrumentation, and power distribution where secure, screw-down wire termination is required.

Set contains 1 Pc TE Connectivity Buchanan Series PCB Terminal Block 5-Contact, 5.08 mm Pitch, 1 Row. Supports 15A current capacity suitable for moderate power circuits. Accommodates wire sizes ranging from 30 AWG to 12 AWG for versatile connectivity.

Features green polyamide 6.6 GF housing ensuring durability and corrosion resistance. Utilizes screw wire connection method for secure and easy assembly. Rated for 300V AC voltage applications, suitable for industrial and commercial PCB assembly.

Right angle mount design enables optimized PCB layout and space-saving. Side stackable with rising clamp design for efficient terminal arrangement. Single row with 5 contacts for compact multi-contact electrical connection.

Connector gender is male, compatible with corresponding female terminal blocks.
