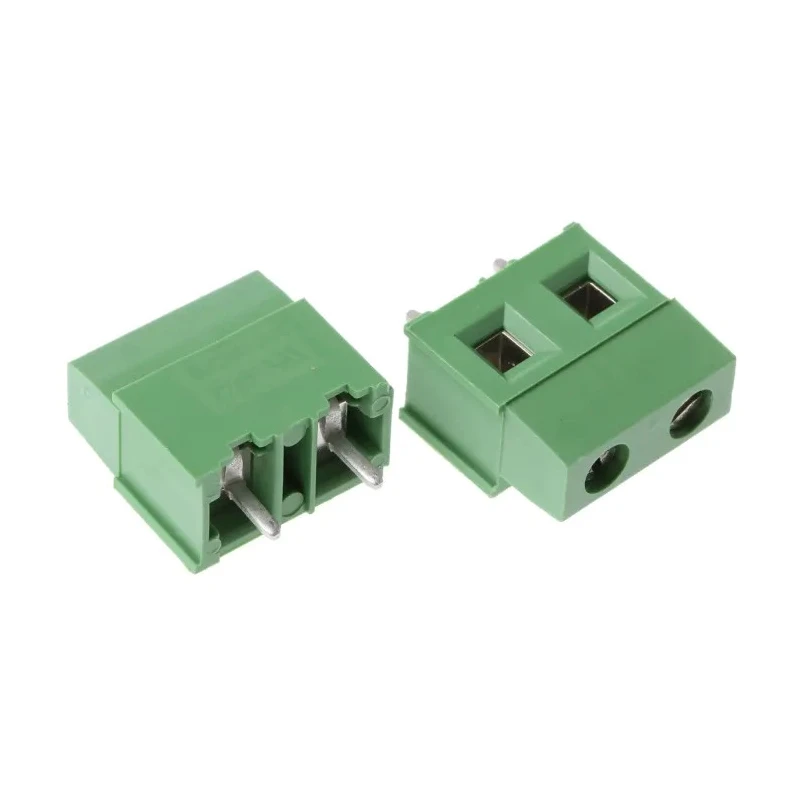

TE Connectivity Buchanan Series PCB Terminal Block, 2-Contact, 7.5 mm Pitch, 1 Row, 282844-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 17.5A |
| Length | 15mm |
| Model | 282844-2 |
| Depth | 15.2mm |
| Width | 9mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Supports current rating up to 17.5 amps for reliable electrical performance.
- Wire size acceptance ranges from 30 to 12 AWG, accommodating various wiring setups.
- Constructed with durable green polyamide housing for insulation and robustness.
- Terminal block features interlocking design and M3 screw clamp terminals for secure connection.
- Rated for 300 V AC voltage, suitable for multiple electronic applications.
- UL 94V-0 flame retardant standard compliant for enhanced safety.
- Ideal for use in industrial, electronic, power connector, and control panel assembly environments.
Product Description
TE Connectivity 282844-2 Buchanan Series PCB Terminal Block is a high-quality 2-contact pluggable terminal block designed for use in electronic and electrical applications requiring reliable and compact PCB connectivity. It features a 7.5 mm pitch and 1 row layout with a straight male connector orientation, making it suitable for side wire entry installations.
This terminal block supports a current rating of 17.5 amps and wire sizes ranging from 30 AWG to 12 AWG, achieved through its M3 screw clamp terminals that ensure secure wire fastening. The green polyamide 6.6 GF housing provides excellent electrical insulation, mechanical strength, and flame retardance with its UL 94V-0 compliance.
Its compact footprint of 15 mm length, 9 mm width, and 15.2 mm depth allows it to be integrated into space-constrained PCB layouts without compromising connectivity functionality. The interlocking feature facilitates modular assembly in multi-block configurations, enhancing design flexibility.
This terminal block is ideal for industrial electronic equipment, power connectors, control panels, and other applications where space-efficient, high-quality electrical connections are essential. TE Connectivity's reputation ensures reliability and quality in demanding electrical environments.
Supports current rating up to 17.5 amps for reliable electrical performance. Wire size acceptance ranges from 30 to 12 AWG, accommodating various wiring setups. Constructed with durable green polyamide housing for insulation and robustness.
Compact dimensions: 15 mm length, 9 mm width, 15.2 mm depth for space-efficient PCB designs. Terminal block features interlocking design and M3 screw clamp terminals for secure connection. Rated for 300 V AC voltage, suitable for multiple electronic applications.
UL 94V-0 flame retardant standard compliant for enhanced safety. Ideal for industrial, electronic Connectors, and control panel assembly environments. Explore comprehensive terminal block solutions and TE Connectivity products with EnvMart for your electrical and industrial component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of up to 17.5 amps, ensuring reliable electrical performance.
This model accommodates wire sizes ranging from 30 AWG to 12 AWG, allowing for various wiring setups.
It is rated for 300 V AC voltage, making it suitable for multiple electronic applications.
The compact dimensions are 15 mm in length, 9 mm in width, and 15.2 mm in depth, facilitating integration into space-constrained PCB layouts.
The housing is constructed from durable green polyamide, providing excellent electrical insulation and mechanical strength.
It features M3 screw clamp terminals that ensure a secure connection for the wires.
This model has a straight connector orientation, suitable for side wire entry installations.
Yes, it complies with the UL 94V-0 flame retardant standard, enhancing safety in electrical applications.
It has 2 contacts, designed for efficient electrical connectivity in compact spaces.
It belongs to the Buchanan Series, known for its reliable and compact PCB connectivity solutions.
The country of origin for this product is India.
