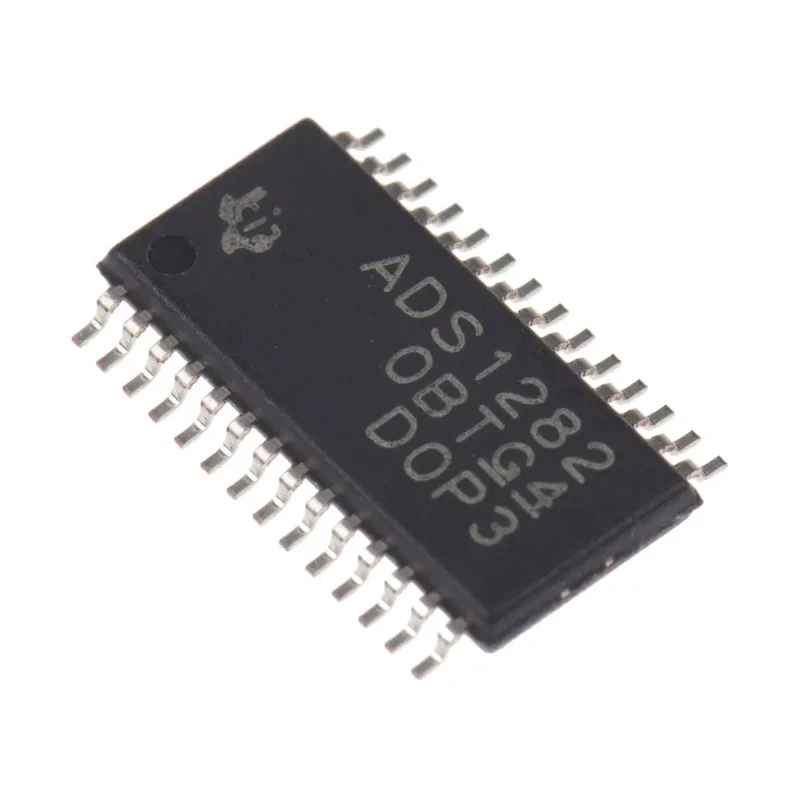

Texas Instruments 2-Channel 31-bit Delta Sigma ADC, 4ksps Sampling Rate, 28-Pin TSSOP ADS1282IPW
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 31 bit |
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 9.8mm |
| Model | ADS1282IPW |
| Mount Type | Surface |
| Sampling rate | 4ksps |
| Series | ADS1282 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | Delta Sigma |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 2 |
Key Features
- This ADC architecture is Delta Sigma, offering precise and accurate digital conversion.
- It features 2 ADC channels with 31-bit resolution for excellent measurement fidelity.
- The device supports a sampling rate of 4k samples per second, suitable for high-precision applications.
- The package type is TSSOP with a 28-pin count, optimized for surface mount technology.
- Operating temperature range spans from -40°C to 85°C, ensuring reliability in various environmental conditions.
- Input type is voltage-based, and the interface type is SPI for efficient digital communication.
- Operating supply voltage ranges from 5V minimum to 5.25V maximum.
- Physical dimensions include a length of 9.8mm and height of 1.2mm, facilitating compact integration.
Product Description
Texas Instruments ADS1282IPW is a precision 2-channel 31-bit Delta Sigma Analog to Digital Converter designed for high-resolution measurement applications. Featuring two ADC channels, this device provides exceptional accuracy and high sampling rates of up to 4 kilosamples per second, ensuring detailed signal analysis and data conversion in industrial, laboratory, and electronic equipment.
The ADS1282IPW is packaged in a 28-pin TSSOP format, enabling surface mounting on compact circuit boards. It operates reliably across a wide temperature range, from -40°C up to 85°C, making it suitable for harsh and varied operating environments common in industrial and automotive electronics.
This ADC supports voltage inputs and employs an SPI interface, facilitating seamless communication with microcontrollers and digital systems. The supply voltage requirement is between 5V and 5.25V, optimizing power consumption while maintaining performance.
The Delta Sigma architecture provides high-resolution digital conversion with low noise and high linearity. Its 31-bit resolution allows for fine differentiation between analog signal levels, supporting precision instrumentation.
The sampling rate of 4ksps suits applications demanding both resolution and speed, such as sensor data acquisition and signal processing. The robust operating temperature range ensures consistent performance in both commercial and industrial settings.
The compact 28-pin TSSOP package offers easy PCB integration without occupying excessive space. The SPI communication interface provides rapid and efficient digital data transfer to host devices. Designed for new condition, this product is ideal for electronics manufacturing, laboratory instrumentation, and measurement systems.
Category placement for this product is in the Electronics & Electricals domain, under Semiconductor components focusing on Analogue to Digital Converters. It serves key roles in industrial automation, laboratory instrumentation, and embedded system design.
Explore our extensive range of semiconductors and data converters at EnvMart to complement your design requirements with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a resolution of 31 bits, providing high measurement fidelity for precise digital conversion.
The ADS1282IPW supports a sampling rate of 4k samples per second, suitable for high-precision applications.
This unit has a voltage-based input type, allowing it to convert analog voltage signals into digital data.
The ADS1282IPW is packaged in a TSSOP format with 28 pins, optimized for surface mount technology.
It operates within a temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions.
The operating supply voltage for the ADS1282IPW ranges from 5V to 5.25V, optimizing power consumption while maintaining performance.
This model employs an SPI interface for efficient digital communication with microcontrollers and digital systems.
The ADS1282IPW features 2 ADC channels, allowing for simultaneous data conversion from multiple sources.
It has a length of 9.8mm and a height of 1.2mm, facilitating compact integration into circuit boards.
This ADC utilizes Delta Sigma architecture, which provides high-resolution digital conversion with low noise and high linearity.
It is suitable for high-resolution measurement applications in industrial, laboratory, and electronic equipment.
The country of origin for this model is India, indicating its manufacturing location.
