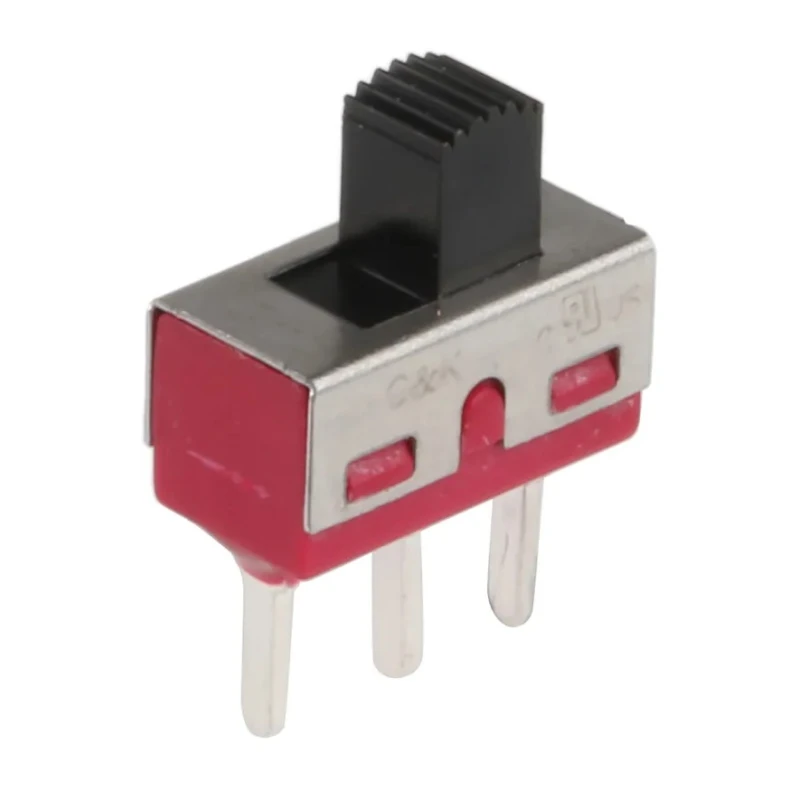

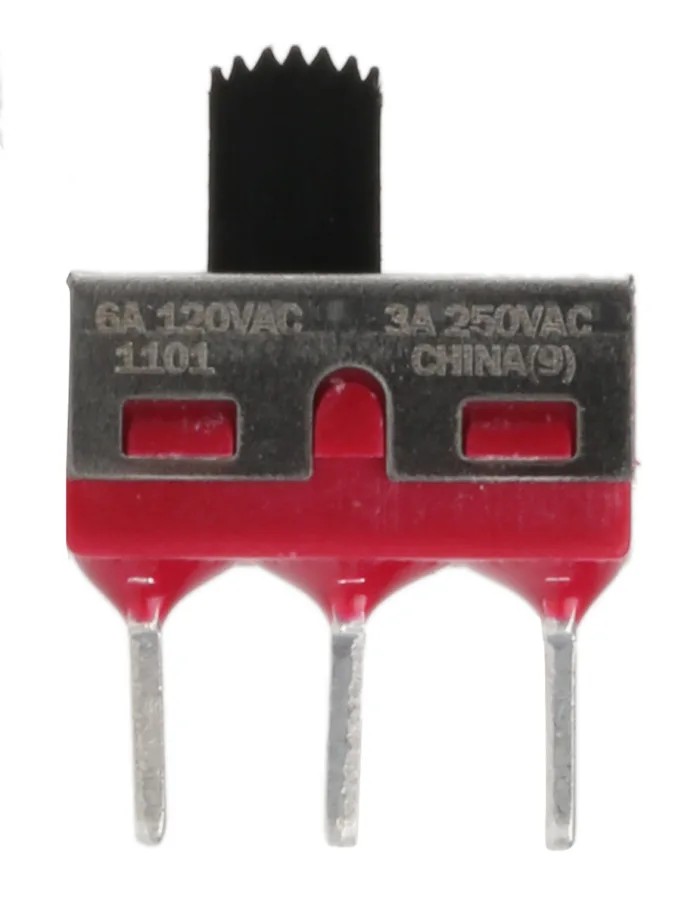

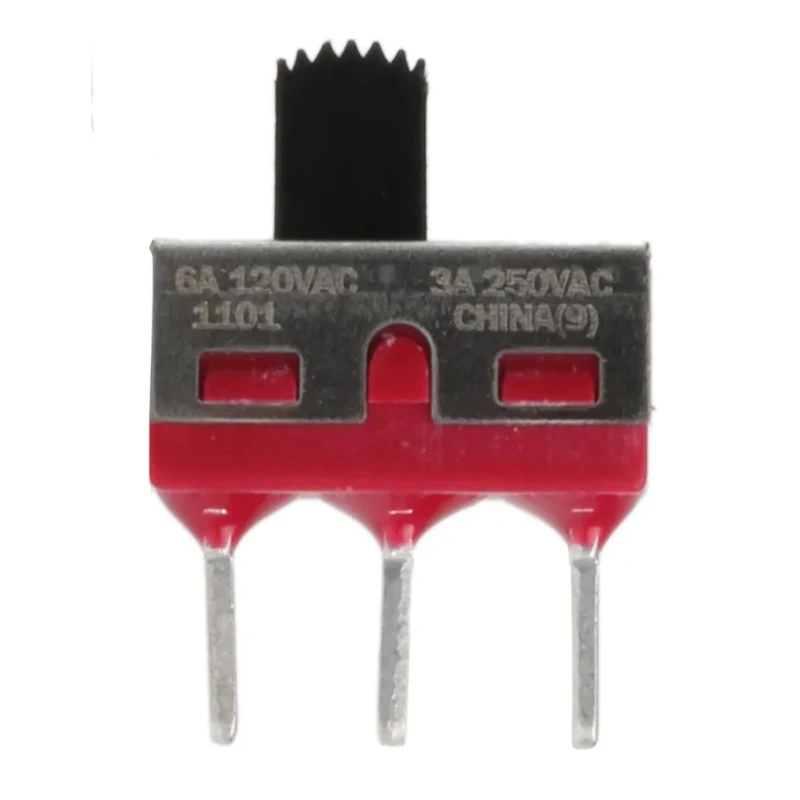

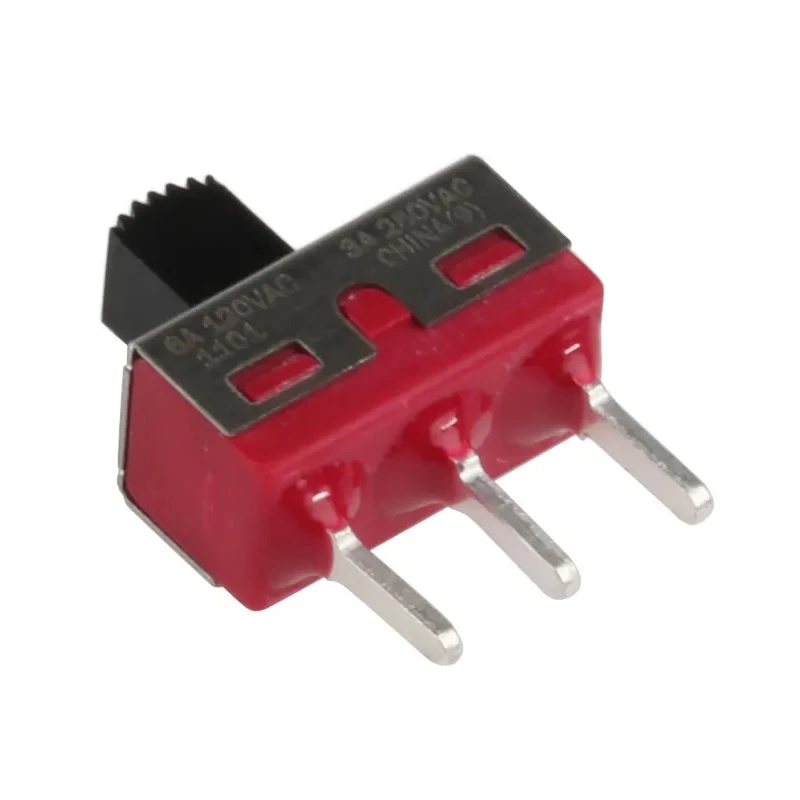

C & K PCB Slide Switch SPDT Latching 6A Nylon 28V DC 250V AC 1000 Series 1101M2S3CQE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Operating Temperature Range | -30 to +65°C |
| Length | 12.7mm |
| Model | 1101M2S3CQE2 |
| Depth | 11.43mm |
| Width | 6.6mm |
| Mount Type | PCB |
| Series | 1000 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, UL |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 6A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nylon |
Key Features
- The SPDT contact configuration supports both on-none-on switching operations.
- Switch contact current rating is 6A with 28V DC and 250V AC voltage capacities.
- Nylon actuator and UL 94V-0 rated diallyl phthalate housing ensure durability.
- Mechanical life extends up to 40,000 cycles for reliable switching performance.
- Operates efficiently within the temperature range of -30°C to +65°C.
- Through hole terminal type facilitates secure PCB mounting.
- Certified to CSA and UL standards for safety and quality assurance.
- Epoxy sealed terminals protect against bottom wash cleaning processes.
Product Description
C & K 1101M2S3CQE2 PCB Slide Switch SPDT Latching 6A Nylon is a precision-engineered slide switch designed for use in electrical, automation, telecommunications, and computer peripheral applications.
This 1000 series miniature slide switch features a single-pole double-throw (SPDT) contact configuration with latching switch operation, providing reliable on-none-on switching functionality.
The switch supports a contact current of 6 amperes at 28 volts DC and 250 volts AC, making it suitable for various low-voltage control circuits. The actuator is made from durable nylon material, paired with a UL 94V-0 rated diallyl phthalate case, ensuring resistance to flame and mechanical stress.
The switch mechanical life is rated for 40,000 cycles, offering long-term operational reliability. Terminals are through-hole type, allowing for easy mounting on printed circuit boards, and the epoxy-sealed terminals make it resistant to contamination during bottom wash cleaning processes.
Compact in size, the switch measures 12.7mm in length, 6.6mm in width, and 11.43mm in depth. It performs reliably within an operating temperature range of -30 to +65 degrees Celsius, enabling use in challenging industrial environments.
The SPDT contact configuration supports flexible circuit design. Latching switch operation provides secure switching states. High current rating of 6 amperes supports diverse electrical loads. Durable nylon actuator ensures long-lasting mechanical performance.
Epoxy sealed terminals protect against environmental contamination. CSA and UL approvals validate safety and quality standards compliance. Compact dimensions facilitate use in space-constrained applications. Suitable for industrial, laboratory, telecommunications, and automation uses.
1000 series designates a proven, reliable slide switch model.
This product is ideal for engineers and designers requiring a reliable, compact PCB Slide Switch for integration into complex electronic assemblies. For more precision switches and electrical components, explore the extensive C & K brand range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole double-throw (SPDT) contact configuration, supporting on-none-on switching operations.
It has a maximum contact current rating of 6A, suitable for various low-voltage control circuits.
This model supports a contact DC voltage of 28V and an AC voltage of 250V.
It operates efficiently within a temperature range of -30°C to +65°C.
The mechanical life of this switch extends up to 40,000 cycles, ensuring reliable switching performance over time.
It features through-hole terminals, facilitating secure mounting on printed circuit boards.
The actuator is made from durable nylon material, providing resistance to mechanical stress.
It is certified to CSA and UL standards, ensuring compliance with safety and quality assurance requirements.
The switch measures 12.7mm in length, 6.6mm in width, and 11.43mm in depth.
This model operates as a latching switch, providing secure switching states.
It is suitable for use in electrical, automation, telecommunications, and computer peripheral applications.
This switch is part of the 1000 series, which designates a proven, reliable slide switch model.
