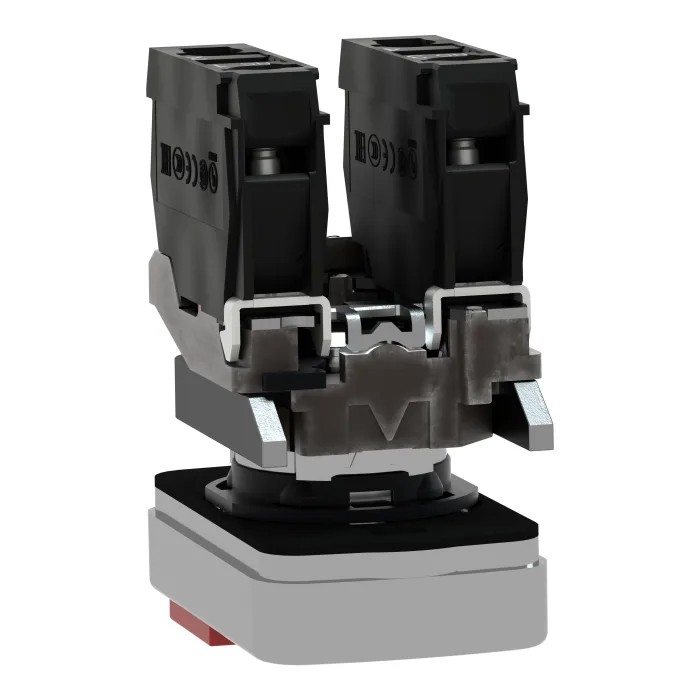

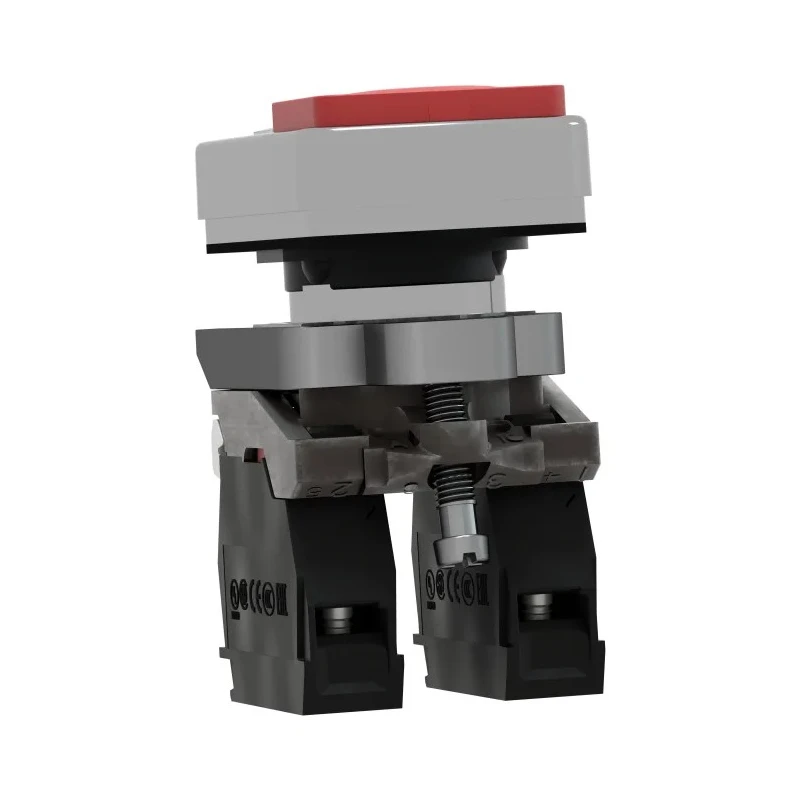

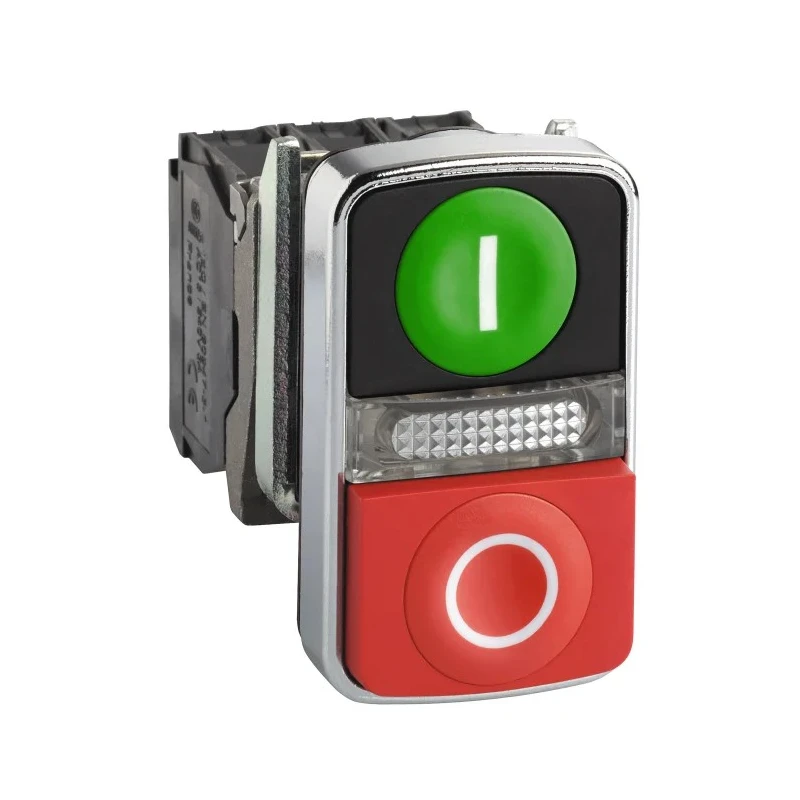

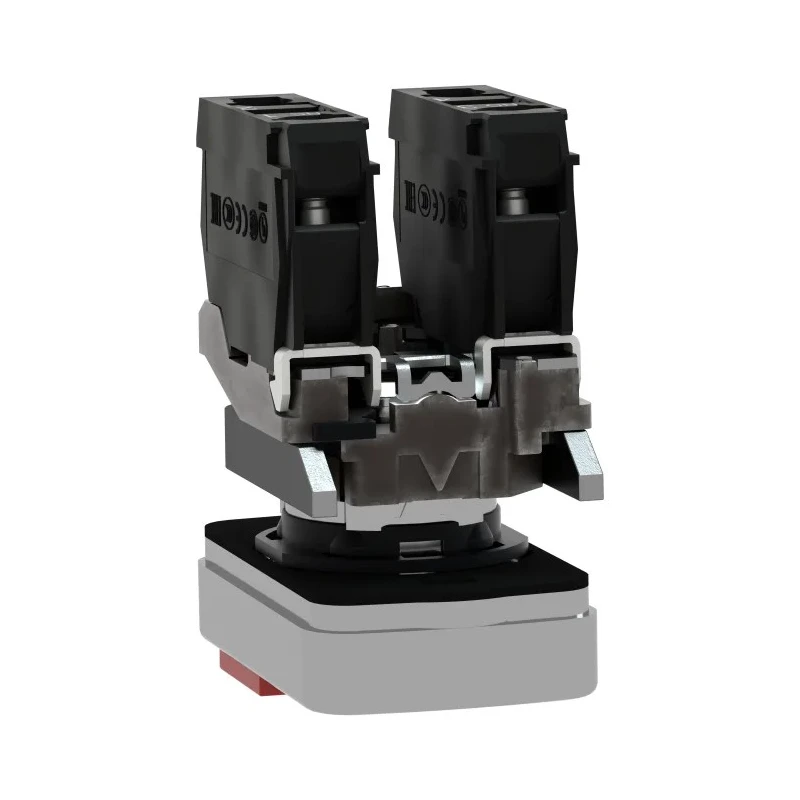

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22mm Cutout XB4BW73731M5
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 35mm |
| Length | 85mm |
| Model | XB4BW73731M5 |
| IP Rating | IP66, IP69K |
| Width | 55mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | White |
| Switch Operation | Spring Return |
| Contact DC Voltage | 600V |
| Actuator Style | Rectangular |
| Switch Contact Current | 10A |
| Better World Claim | Repairable by the End User |
| Legend | Symbol |
Key Features
- Features a single-pole double-throw (SPDT) contact configuration for versatile switching.
- Illuminated with high brightness white LED for clear operational status.
- Corrosion-resistant chromium-plated bezel ensures durability in demanding environments.
- High ingress protection rating of IP66 and IP69K enables resistance to harsh cleaning and environmental exposure.
- Operational temperature range from -25°C to 70°C supports broad application conditions.
- Silver alloy contacts capable of handling switch currents up to 10A ensure long-term performance.
- Compact dimensions (85mm length, 55mm width, 35mm height) fit most control panels with a 22mm cutout.
- Rated for 600V AC/DC voltage contacts suitable for various industrial electrical circuits.
Product Description
Schneider Electric XB4BW73731M5 is an industrial-grade illuminated push button switch designed for panel mounting with a 22mm cutout. It features a reliable spring return mechanism for enhanced usability in control systems requiring momentary switch action.
The switch includes a high-brightness white LED illumination that activates when the button is engaged, improving visibility and operational safety in industrial environments such as manufacturing plants, warehouses, and agricultural facilities.
Constructed with a corrosion-resistant chromium-plated bezel and equipped with strong silver alloy contacts rated for 10A, the push button is built for durability and long service life. It meets rigorous IEC and UL standards including EN/IEC 60947-5-1 and UL 508, ensuring compliance with global industrial safety requirements.
The device operates efficiently within a temperature range of -25°C to 70°C and has an IP66 and IP69K ingress protection rating, which allows for resistance to dust, water jets, and steam cleaning, making it suitable for harsh and hygienic environments such as airports and agricultural settings.
With compact dimensions of 85mm length, 55mm width, and 35mm height, it can easily be integrated into control panels with a 22mm cutout, supporting flexible design requirements. The terminal connections use screw type for secure wiring and the device supports a contact configuration of one normally open (NO) and one normally closed (NC) circuit.
This Schneider Electric push button is an ideal choice for electrical automation applications requiring reliable, visible, and durable Push Button Switches. The device is repairable by end users, supporting sustainability efforts and reducing lifecycle costs.
Features a SPDT switch operation with spring return mechanism. Illuminated with white LED for clear operational state indication. Corrosion-resistant chromium-plated bezel for extended durability. Rated IP66 and IP69K for ingress protection against water and dust.
Suitable operating temperature range from -25°C to 70°C. Contact rating of 600V AC/DC and 10A switch current. Compact panel mount design with 22mm cutout size. Meets multiple international standards: EN/IEC 60947 series, UL 508, CSA C22.2 No 14.
Repairable by end users to support sustainable equipment maintenance. Explore the wide range of Schneider Electric control and automation products on EnvMart for enhanced industrial performance and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole double-throw (SPDT) contact configuration, which includes one normally open (NO) and one normally closed (NC) circuit.
It has an ingress protection rating of IP66 and IP69K, providing resistance against dust and high-pressure water jets, making it suitable for harsh environments.
The operational temperature range for this model is from -25°C to 70°C, allowing it to function effectively in a variety of conditions.
The dimensions of this switch are 85mm in length, 55mm in width, and 35mm in height, making it compact for panel mounting.
This push button switch is rated to handle a maximum switch current of 10A.
It features a high-brightness white LED illumination that activates when the button is engaged, enhancing visibility in operational settings.
The required panel cutout size for this model is 22mm, allowing for easy integration into control panels.
The switch uses screw type terminal connections for secure wiring, ensuring reliable electrical contact.
Yes, this model is designed to be repairable by end users, supporting sustainability and reducing lifecycle costs.
It complies with multiple international standards including EN/IEC 60947-5-1 and UL 508, ensuring it meets global industrial safety requirements.
The contact voltage rating for this model is 600V AC/DC, making it suitable for various industrial electrical circuits.
This switch operates with a spring return mechanism, which is designed for momentary switch action in control systems.
